Article No. 66110

STEELFIX REGULAR 255, height 150 mm

Type 150, drain element, stainless steel, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

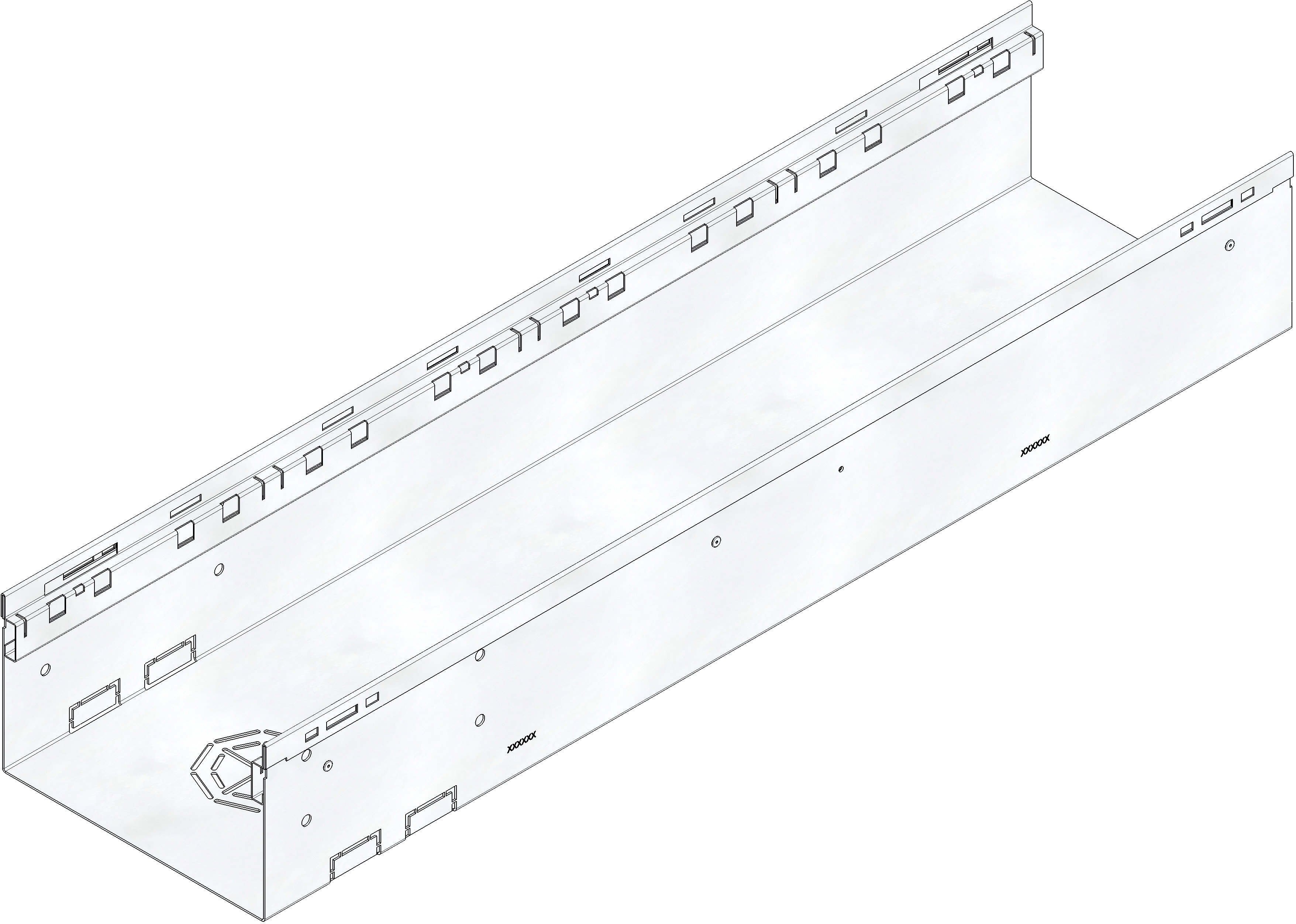

Product image

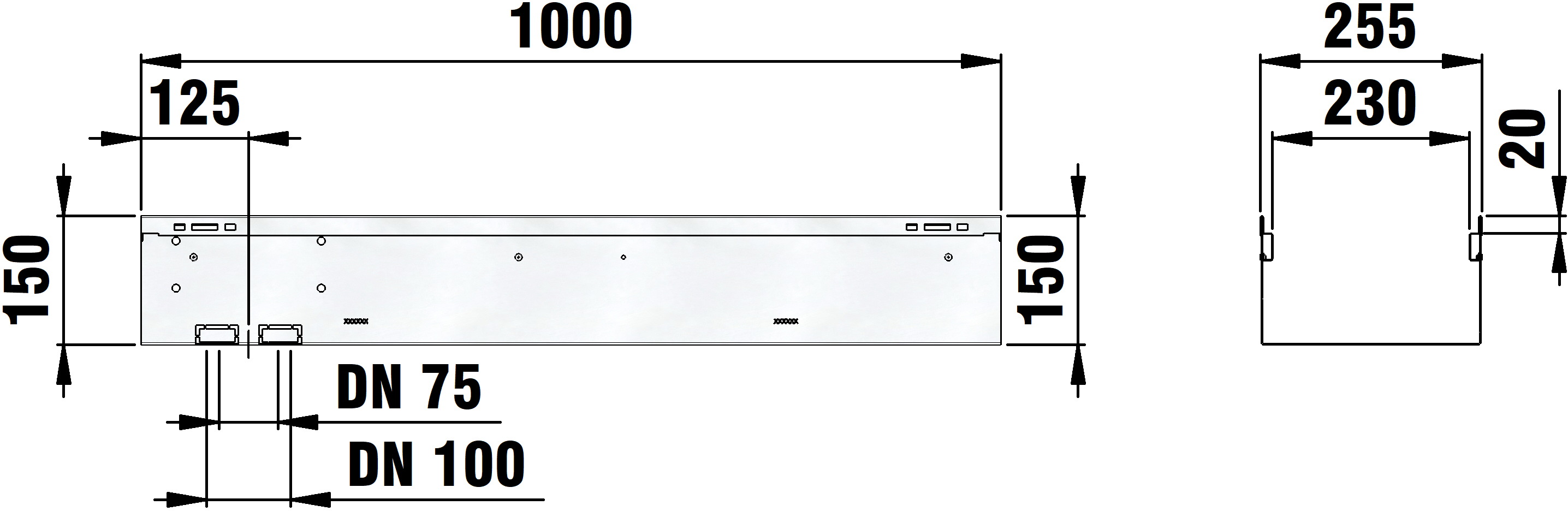

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66110
Length
1000 mm
Width
255 mm
Height
150 mm
Weight
7.90 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
255
Internal channel cross-section
317 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
STEELFIX REGULAR 255 Channel body type 150 -drain element, stainless steel, installation height 150 mm, 1 m
Product description
STEELFIX REGULAR 255 type 150 - Channel body, Sump unit, made of stainless steel CNS 1.4301, pedestrian and wheelchair-accessible, cover support tilted inwards, channel base and sides closed, with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 or DN/OD 100 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x255x150 mm, item no. 66110
Packaging unit
-
