Article No. 44320
TOP X, Combined article, composite channel with cover, class A 15
black, with mesh cover MS 8/21 mm, made of PP, black, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

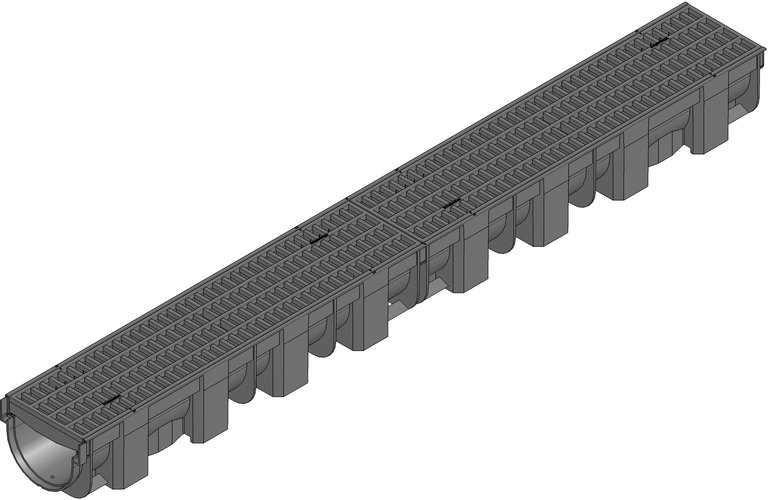

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
44320
Length
1000 mm
Width
119 mm
Height
89 mm
Einlegetiefe
20 mm
Weight
1.63 kg
Material
recycled, modified Polypropylene
Intake cross-section
509.0 cm²/m
Nominal size
90
Internal channel cross-section
45 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
recycled, modified Polypropylene
Regulations
EN 1433
Sales text
TOP X Channel, black, with mesh cover MS 8/21 mm made of recycled PP, black, cl. A 15, 1 m
Product description
TOP X Channel made of recycled PP, black, with mesh cover MS 8/21 made of recycled PP, black, class A 15, LxWxH 1000x119x89 mm, item no. 44320
Packaging unit
90
Declaration of Performance
Tender Texts
Installation guide
Installation guide
Installation guide
Installation guide
Installation guide
Installation example
Pavement class A 15,
Pavement class A 15,
