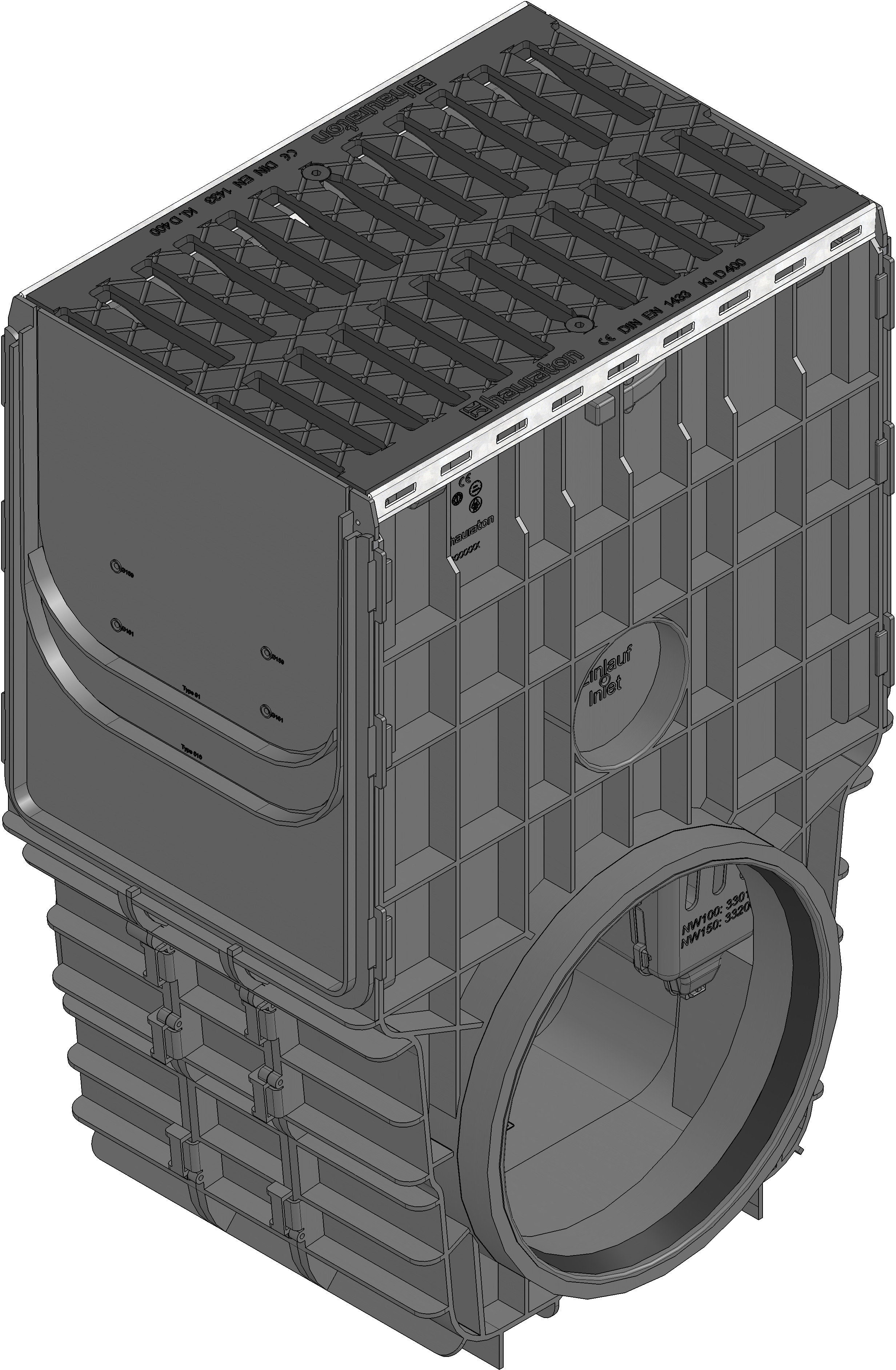

Product image
Technical drawing
Drawing (CAD)

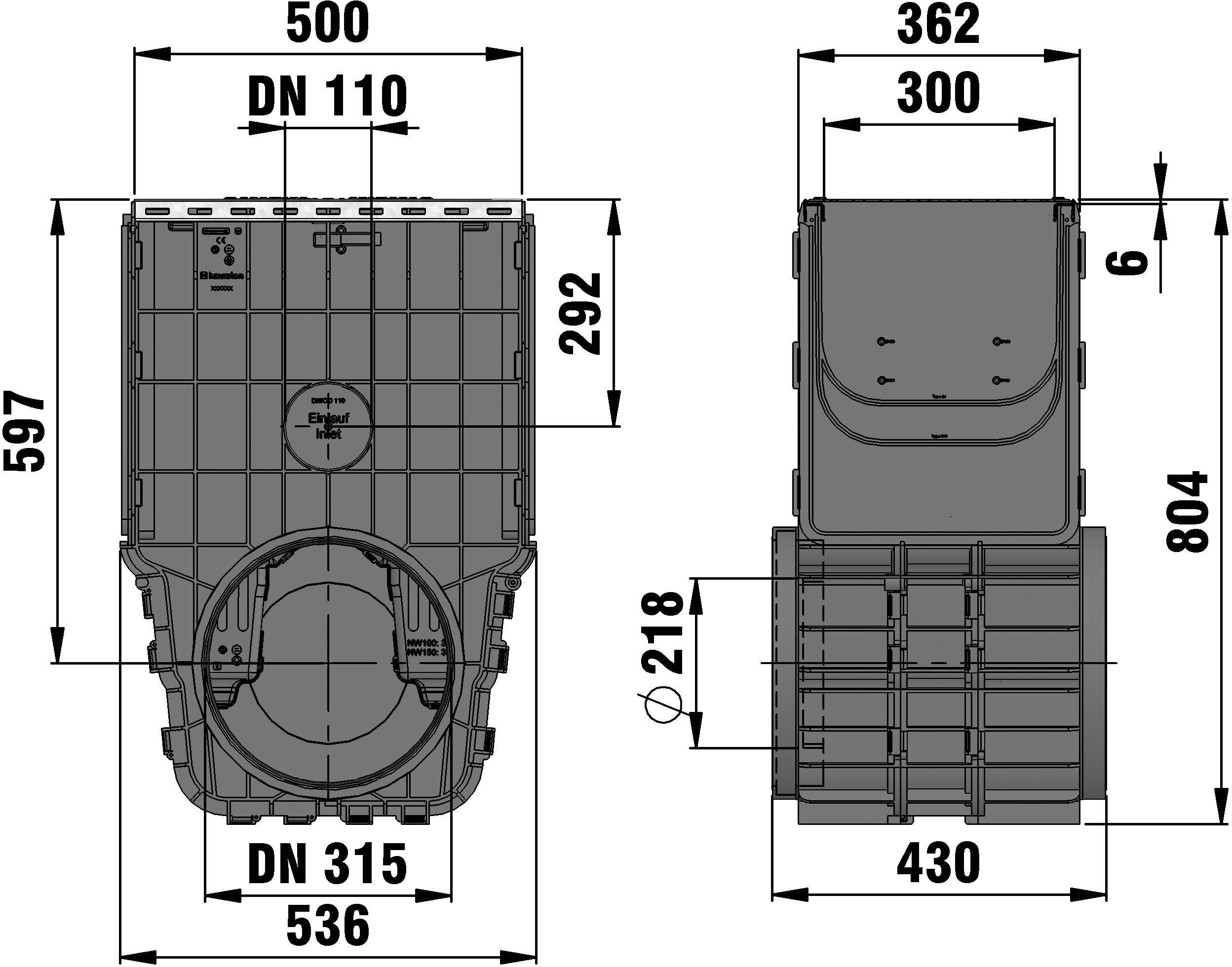

Drawing

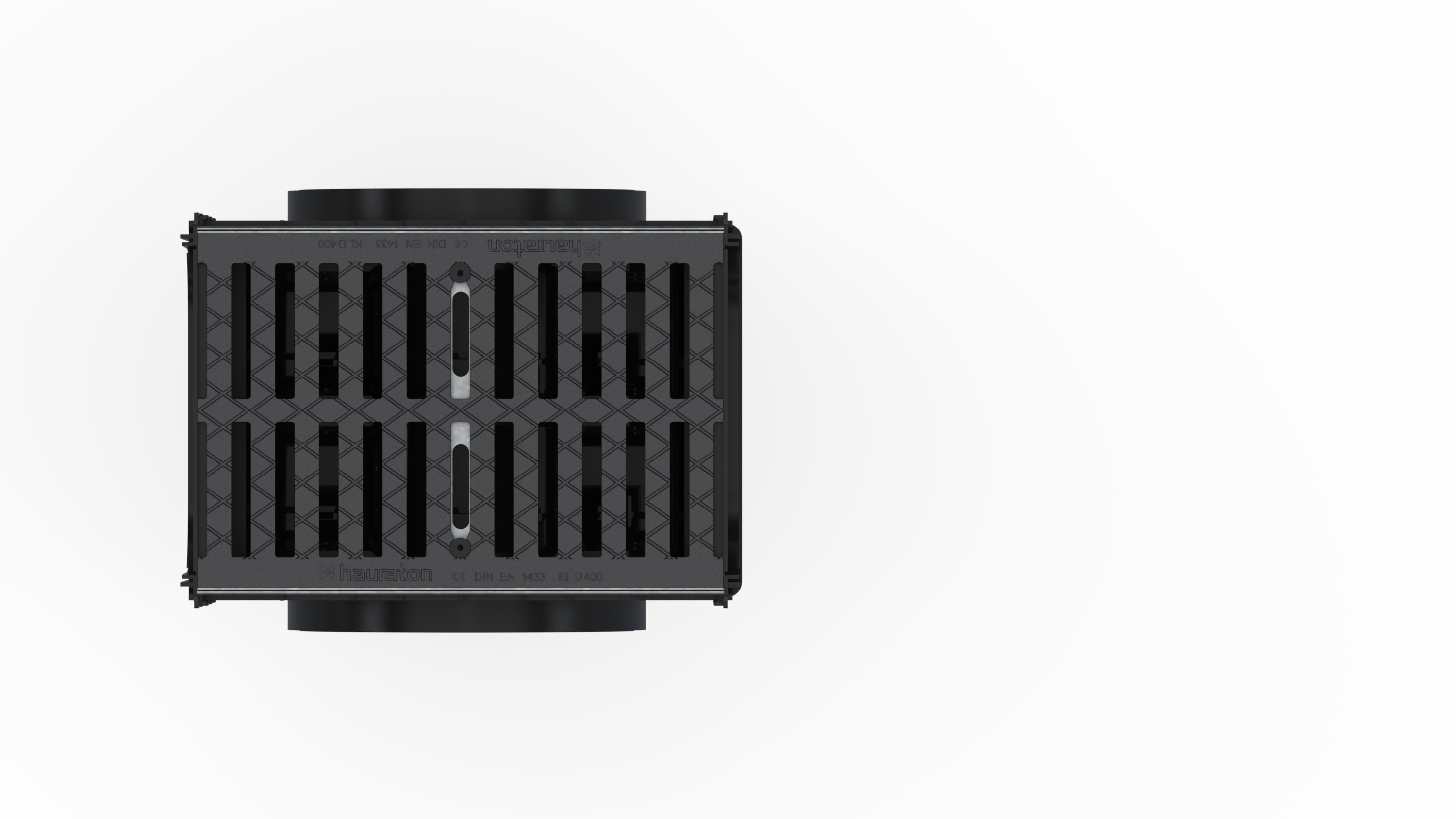

Top view
Technical information and metrics
Article No.
40082
Length
500 mm
Width
362 mm
Height
804 mm
Einlegetiefe
6 mm
Weight
24.99 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1096.0 cm²/m
Nominal size
300
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with ductile iron cover 2x SW 128/18 mm, black, cl. D 400, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PLUS X 300, 0.5 m
Product description
RECYFIX PLUS X 300 - Sump unit made of recycled polypropylene, with edge frame made of galvanised steel, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS X 300, with ductile iron cover 2x SW 128/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x362x804 mm, item no. 40082
Packaging unit
4
