Article No. 24060
Trash boxes
for NW 100 - 300, 2-part, with all-round edge frame made of galvanised steel, with PE-HD-piep outlet DN/OD 160, with GUGI-ductile iron mesh cover MS 15/25 mm, black, with shutter valve, 0.51 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

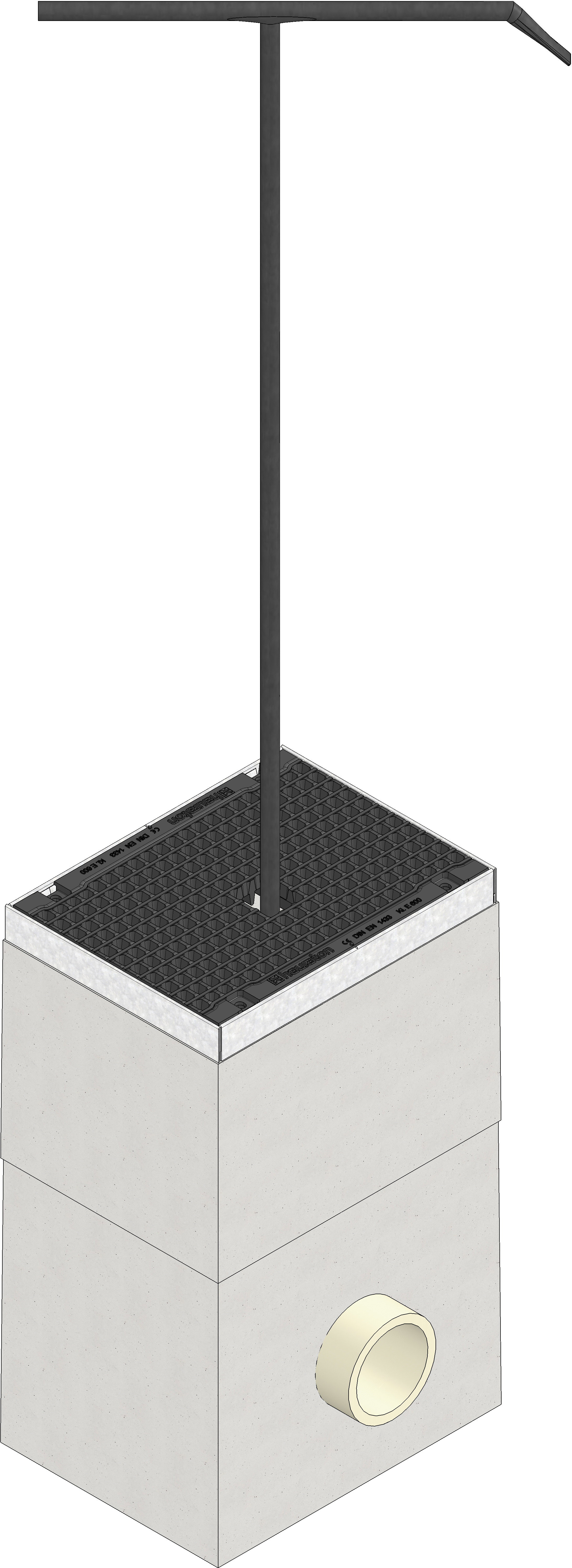

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
24060
Length
510 mm
Width
390 mm
Height
850 mm
Weight
204.00 kg
Material
fibre-reinforced concrete, RECYFIX Material (PP virgin material), Steel with zinc-magnesium coating
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with all-round edge frame made of galvanised steel, with shutter valve, with underground hydrant spanner and modified GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. E 600, FASERFIX KS 100-300, FASERFIX SUPER 100-300 and DRAINFIX
Product description
Sump unit, based on FASERFIX SUPER 300-Sump unit, 2-part, made of fibre-reinforced concrete, with all-round edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the cover, 4-fold locking, with a modified GUGI-ductile iron mesh cover MS 15/25 mm, black, for turning off a shut-off valve without need to open the cover, including underground hydrant spanner and mechanical shutter valve, load class A 15 - E 600 according to EN 1433, CE compliant, sealed at the connection point, one-sided connection possibility DN/OD 160, suitable for both-sided connection of all channel types FASERFIX KS 100 - KS 300, FASERFIX SUPER 100 - 300 and DRAINFIX CLEAN FSU 300, LxWxH 510x390x850 mm, item no. 24060
Packaging unit
2
