Article No. 40003
Trash boxes
for NW 100, with silt bucket made of recycled PP, with ductile iron cover SW 110/9 mm in FIBRETEC-design, KTL-coated, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

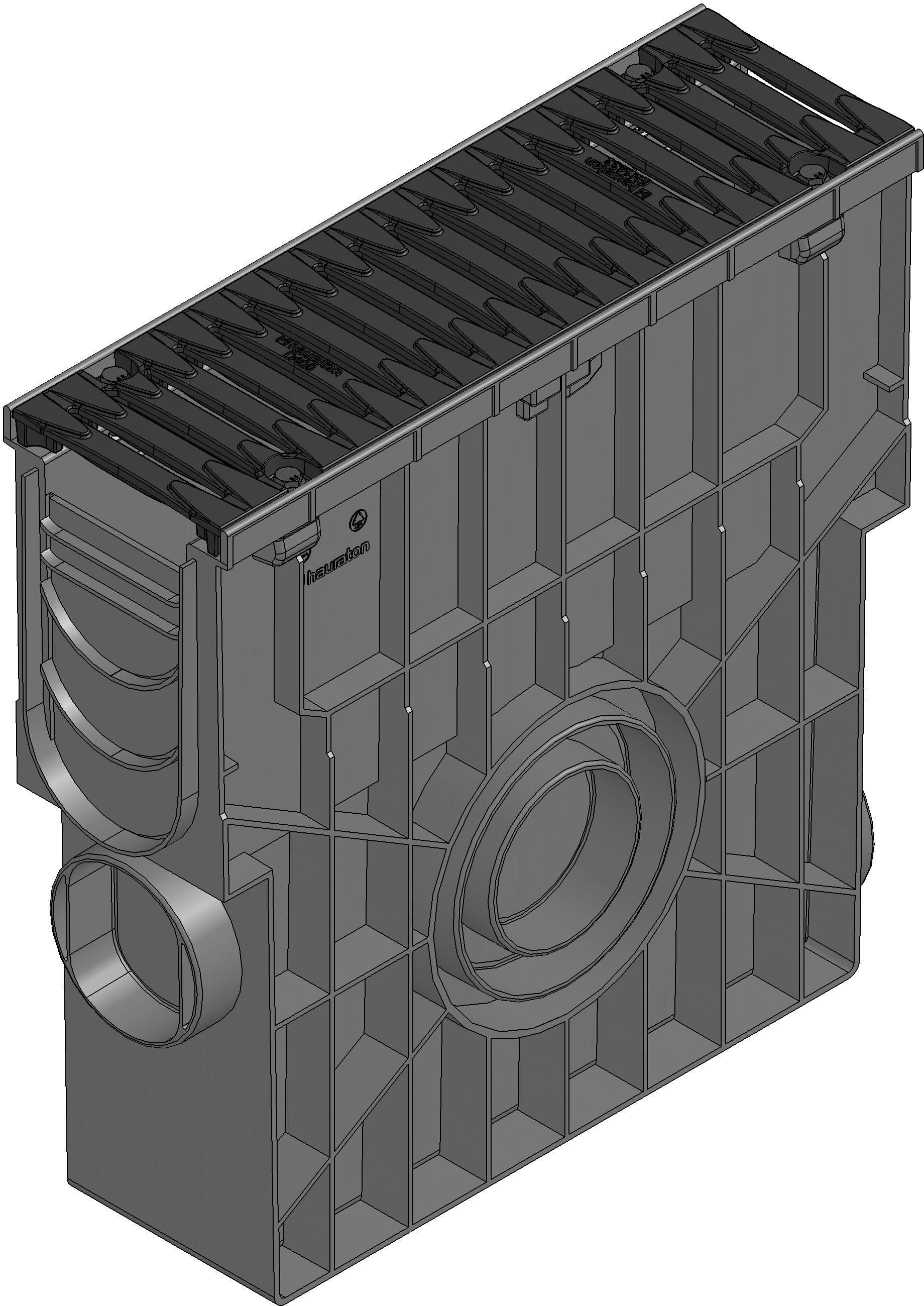

Product image
Technical drawing
Drawing (CAD)

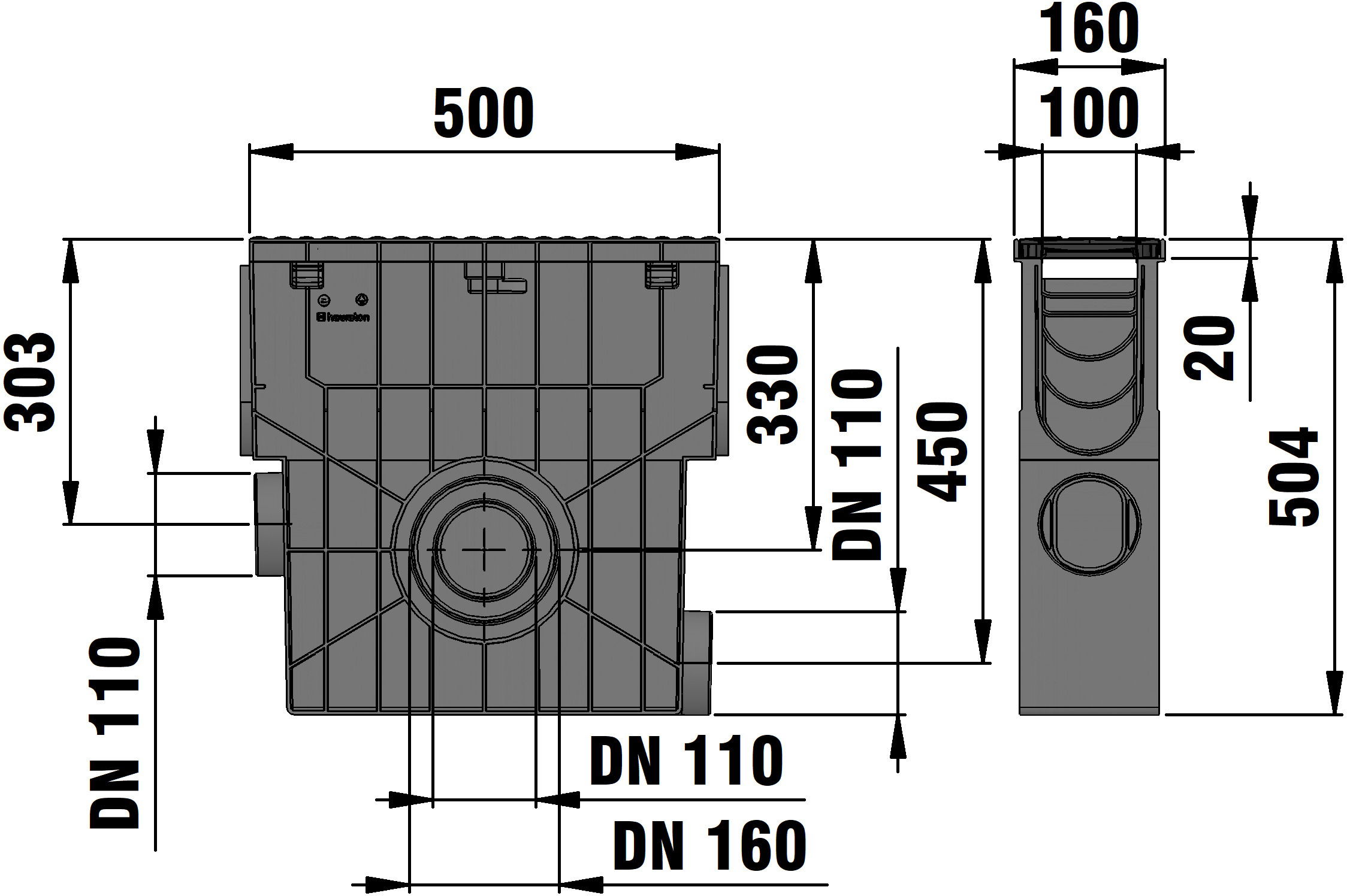

Drawing

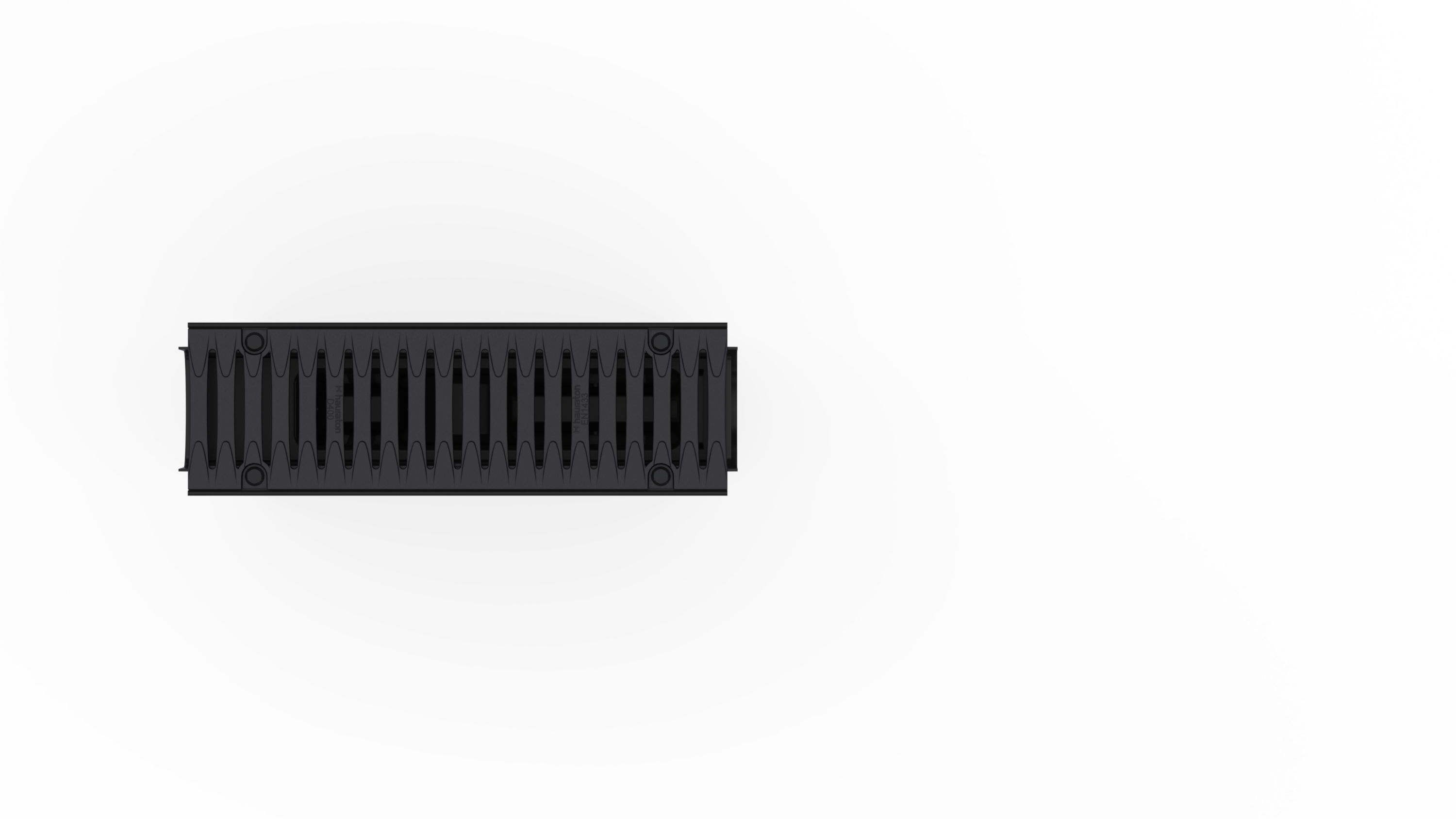

Top view
Technical information and metrics
Article No.
40003
Length
500 mm
Width
160 mm
Height
504 mm
Einlegetiefe
20 mm
Weight
9.24 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
330.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron cover SW 110/9 mm in FIBRETEC design, KTL-coated, cl. D 400, with silt bucket made of recycled PP, RECYFIX NC 100, 0.5 m
Product description
RECYFIX NC 100 - Sump unit made of recycled polypropylene, with integrated edge frame, 4-sided preformed pipe connection element (on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX NC 100, with ductile iron cover SW 110/9 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, with 4-fold bolting, load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 500x160x504 mm, item no. 40003
Packaging unit
28
