Article No. 10486
Trash boxes
for NW 150, for system size 1200, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with connection plate, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

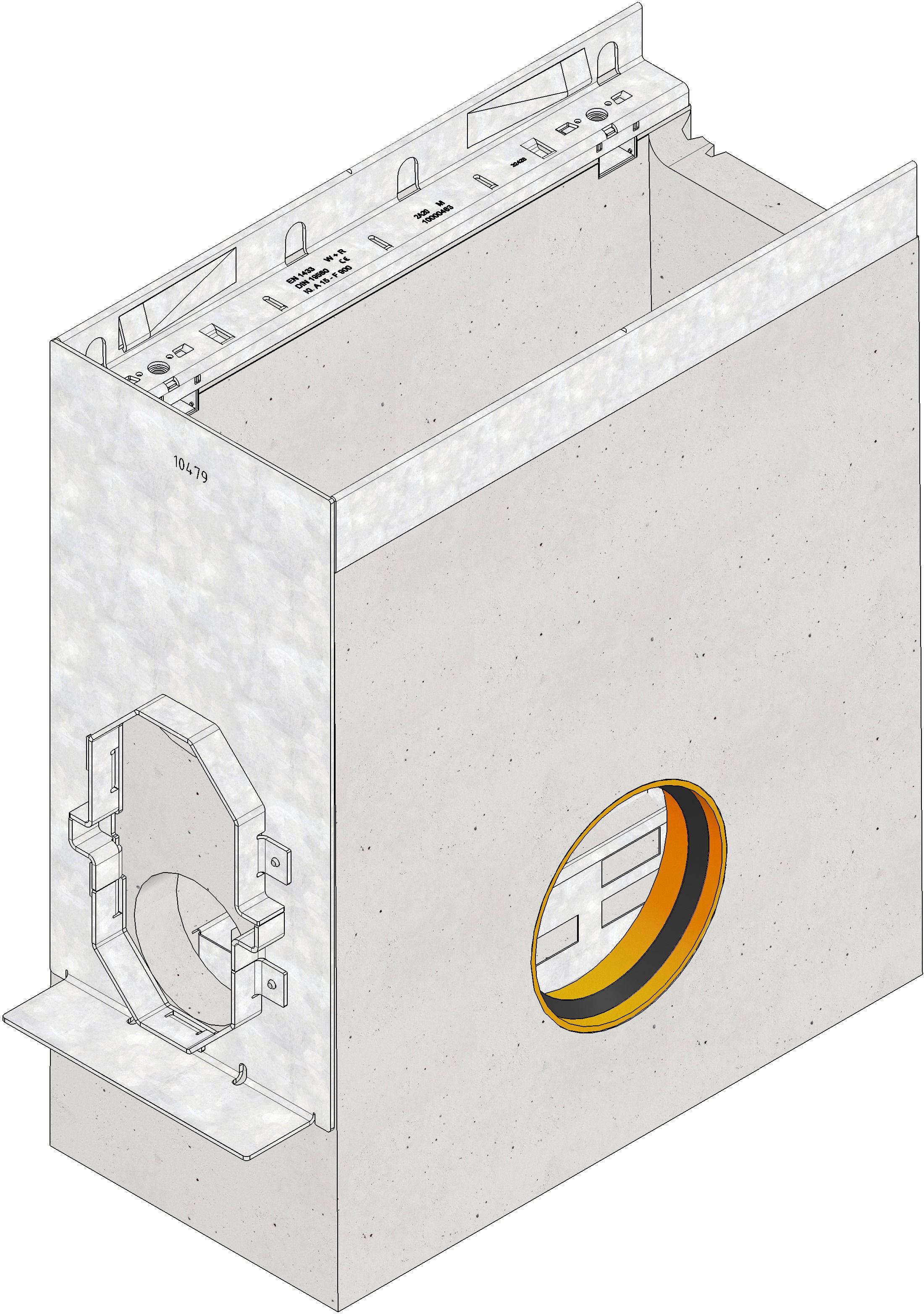

Product image

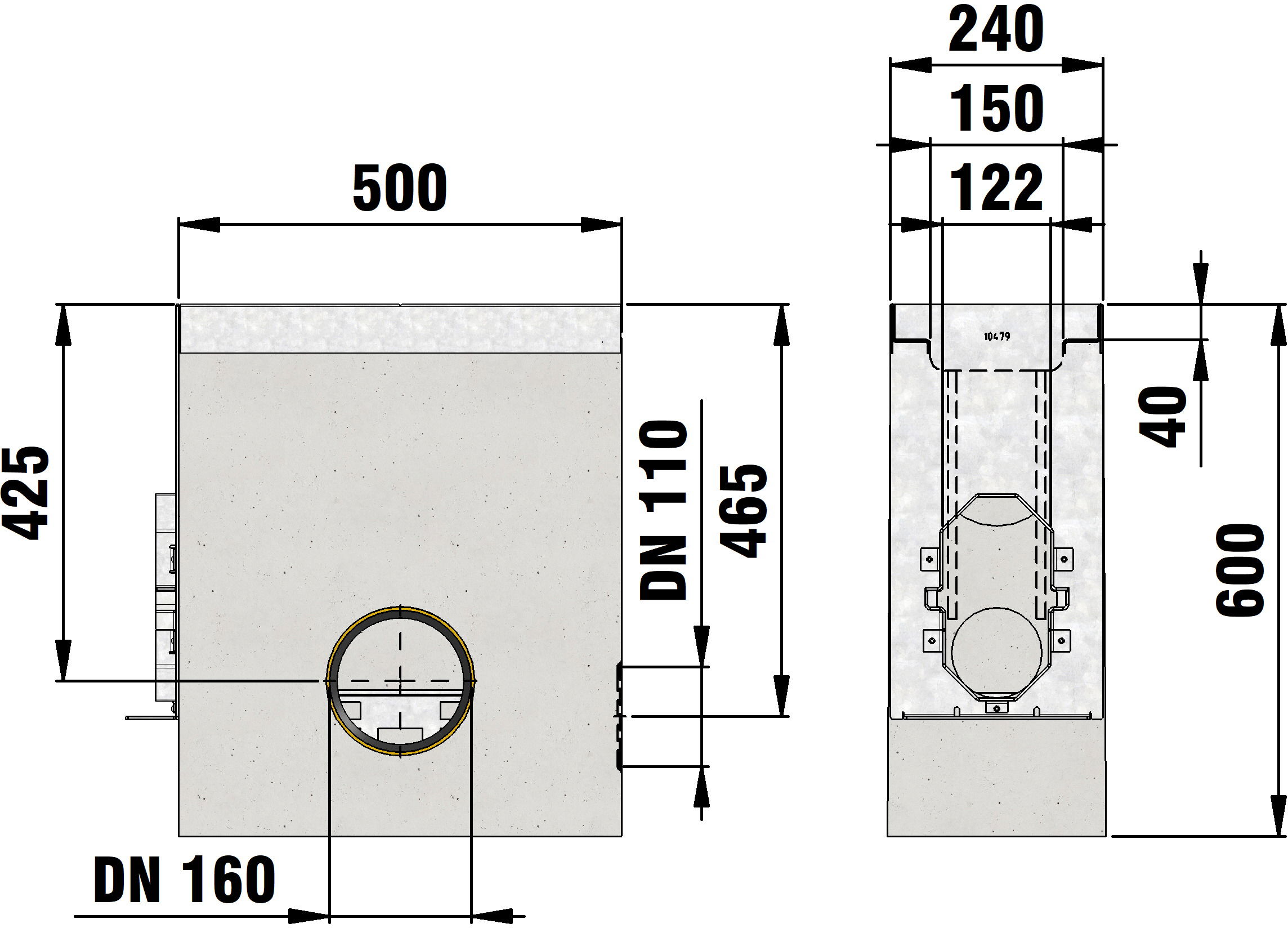

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10486
Length
500 mm
Width
240 mm
Height
600 mm
Weight
90.74 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating, strip galvanized steel
Nominal size
1000, 150
Sales text
Sump unit with edge frames made of galvanised steel, with silt bucket made of galvanised steel, for connection of RECYFIX HICAP 1200 , with connecting plate, galvanised, RECYFIX HICAP 1200, 0.5 m
Product description
RECYFIX HICAP 1200 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel, with boltless quick-locking system SIDE-LOCK, 4-fold locking, 2-sided connection possibility ( on the front side DN/OD 110, on the side with integrated PVC-U socket DN/OD 160), with removable silt bucket made of galvanised steel, with connecting plate, galvanised, for connection of RECYFIX HICAP 1200, LxWxH 500x240x600 mm, item no. 10486
Packaging unit
-
