Article No. 40021
Trash boxes
for NW 150, with edge frames made of galvanised steel and silt bucket made of recycled PP, with ductile iron cover SW 130/6 mm, black, class D 400, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

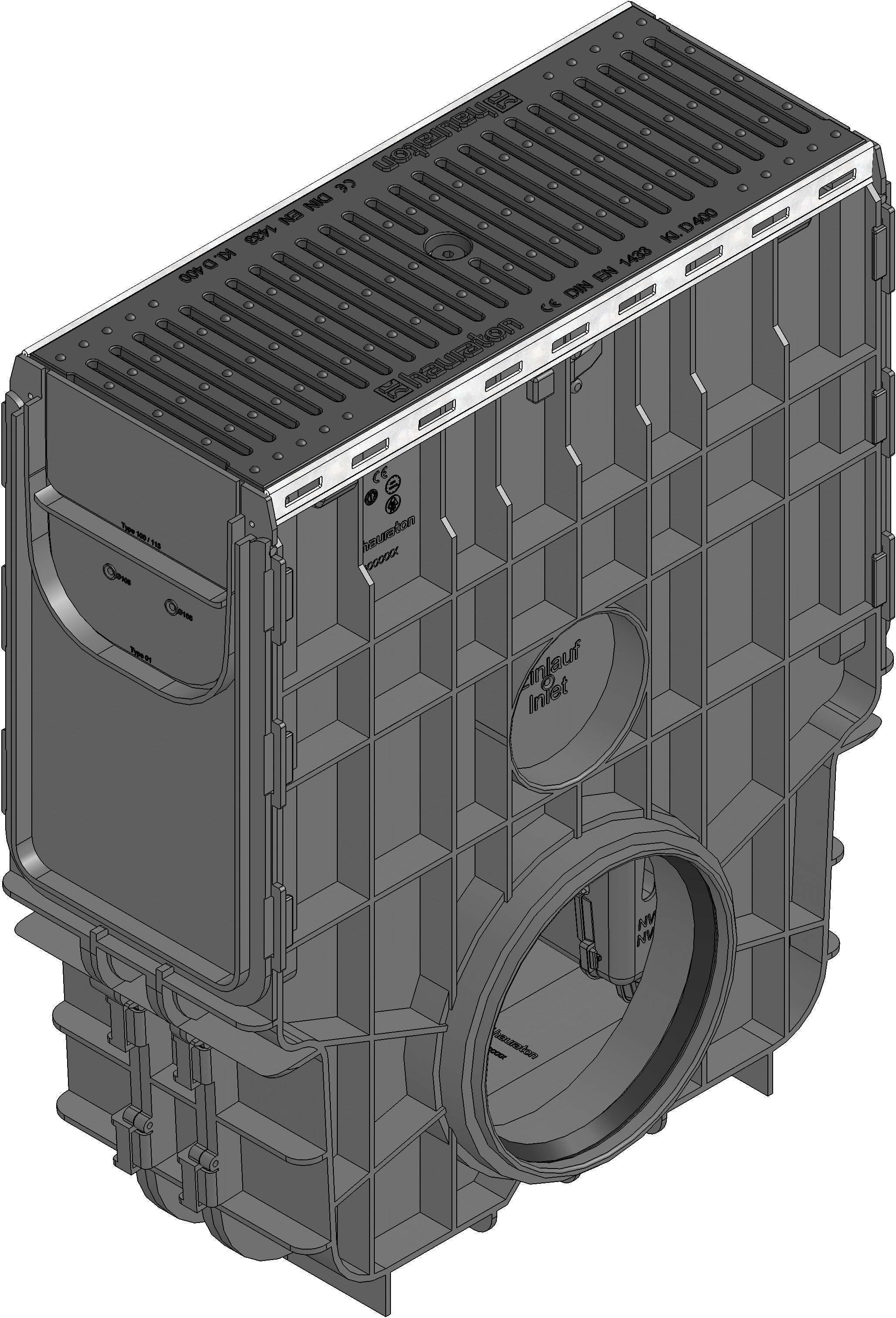

Product image

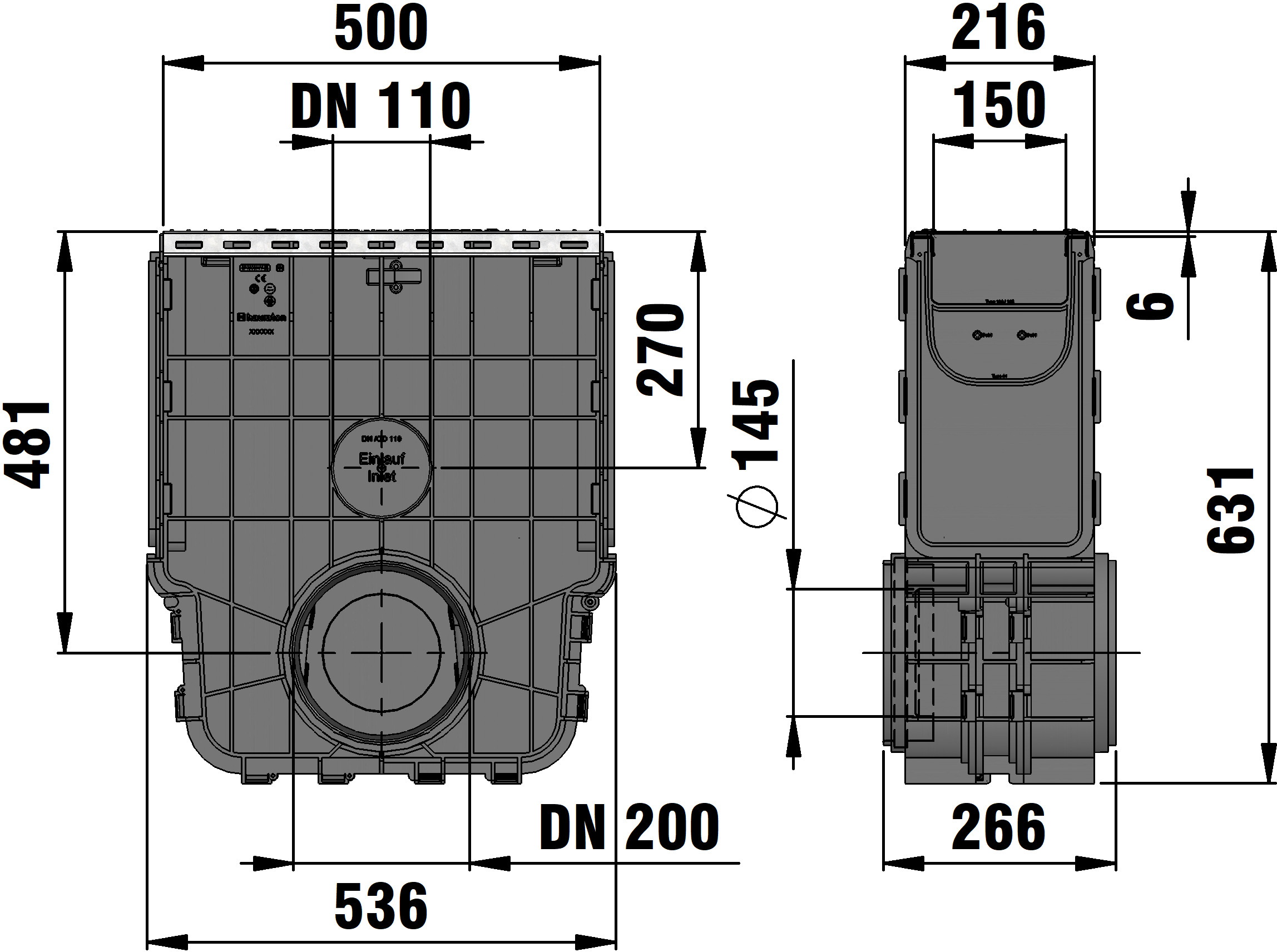

Technical drawing
Drawing (CAD)
Drawing

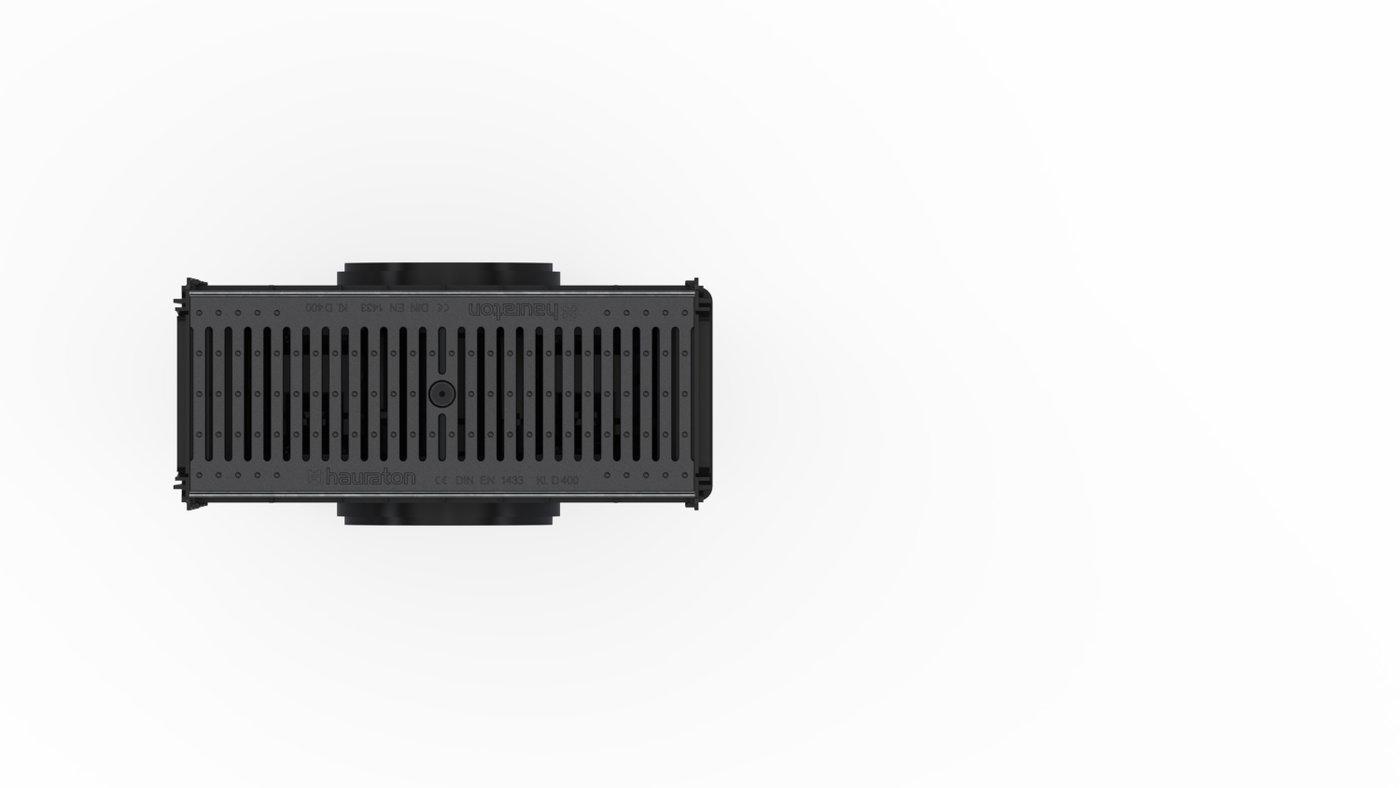

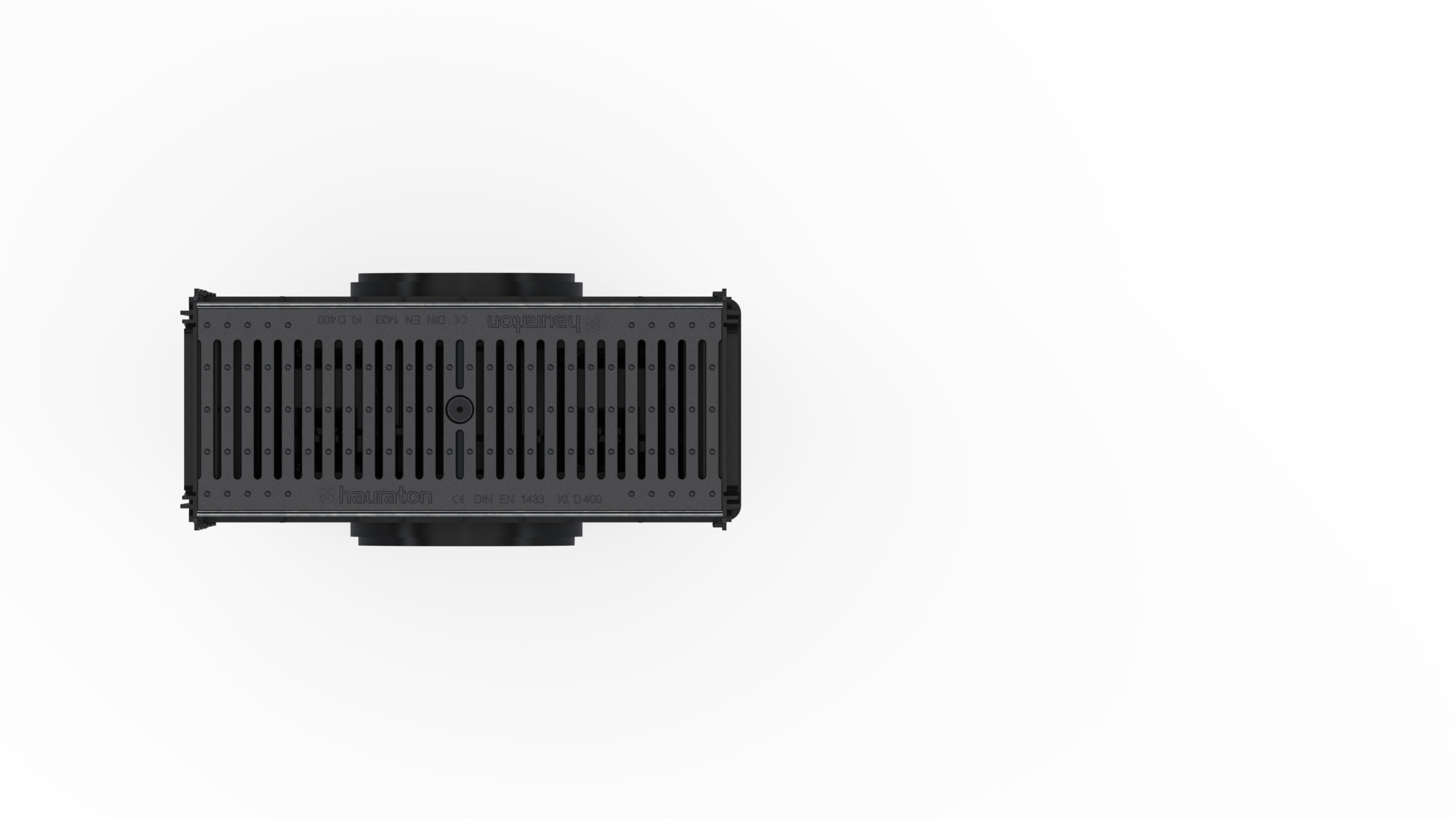

Top view
Technical information and metrics
Article No.
40021
Length
500 mm
Width
216 mm
Height
631 mm
Einlegetiefe
6 mm
Weight
13.56 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
400.0 cm²/m
Nominal size
150
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with ductile iron cover SW 130/6 mm, black, cl. D 400, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PLUS X 150, 0.5 m
Product description
RECYFIX PLUS X 150 - Sump unit made of recycled polypropylene, with edge frame made of galvanised steel, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS X 150, with ductile iron cover SW 130/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x216x631 mm, item no. 40021
Packaging unit
8
