Article No. 22452
Trash boxes
for NW 150, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

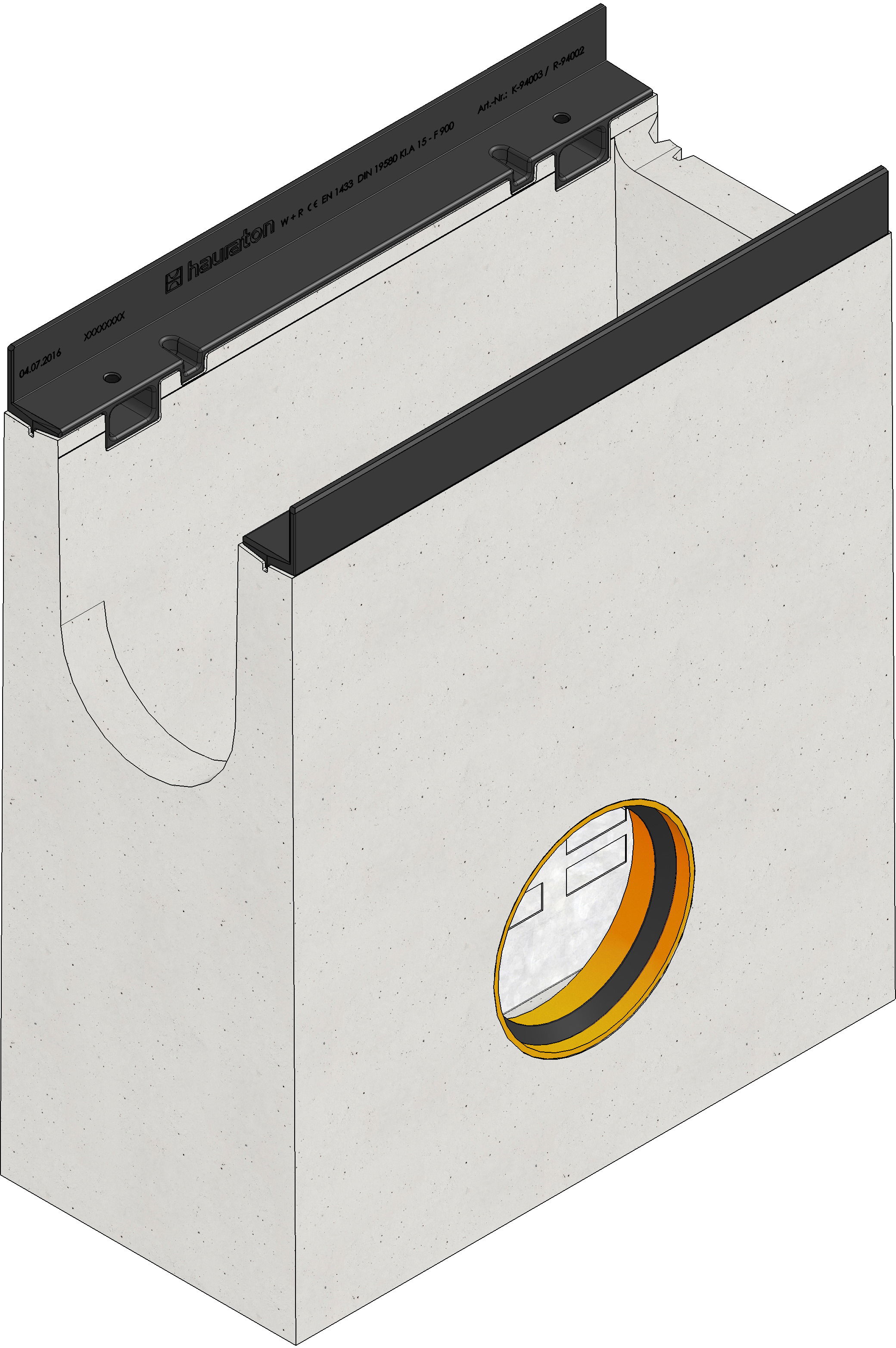

Product image

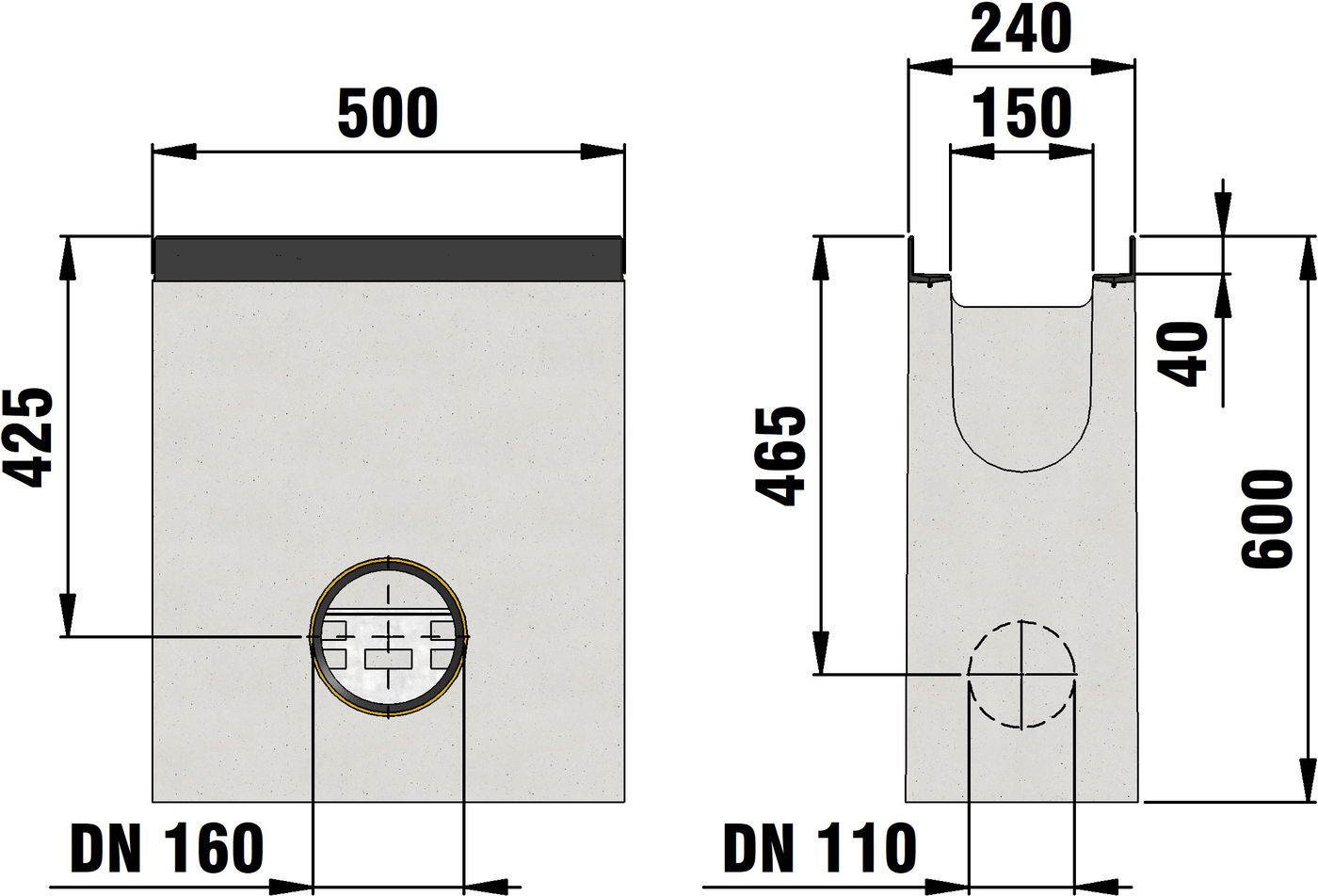

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
22452
Length
500 mm
Width
240 mm
Height
600 mm
Weight
92.30 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
150
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, FASERFIX SUPER 150, 0.5 m
Product description
FASERFIX SUPER 150 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of KTL-coated ductile iron, 2-sided connection possibility (on the front side DN/OD 110, on the side with integrated PVC-U socket DN/OD 160), with removable silt bucket made of galvanised steel, suitable for both-sided connection of channel types FASERFIX SUPER 150, 4-fold-bolting per 0.5 m piece, LxWxH 500x240x600 mm, item no. 22452
Packaging unit
6
