Article No. 40023
Trash boxes
for NW 150, with silt bucket made of recycled polypropylene, with longitudinal cover Filigree, bar distance 8 mm, stainless steel, class A 15, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

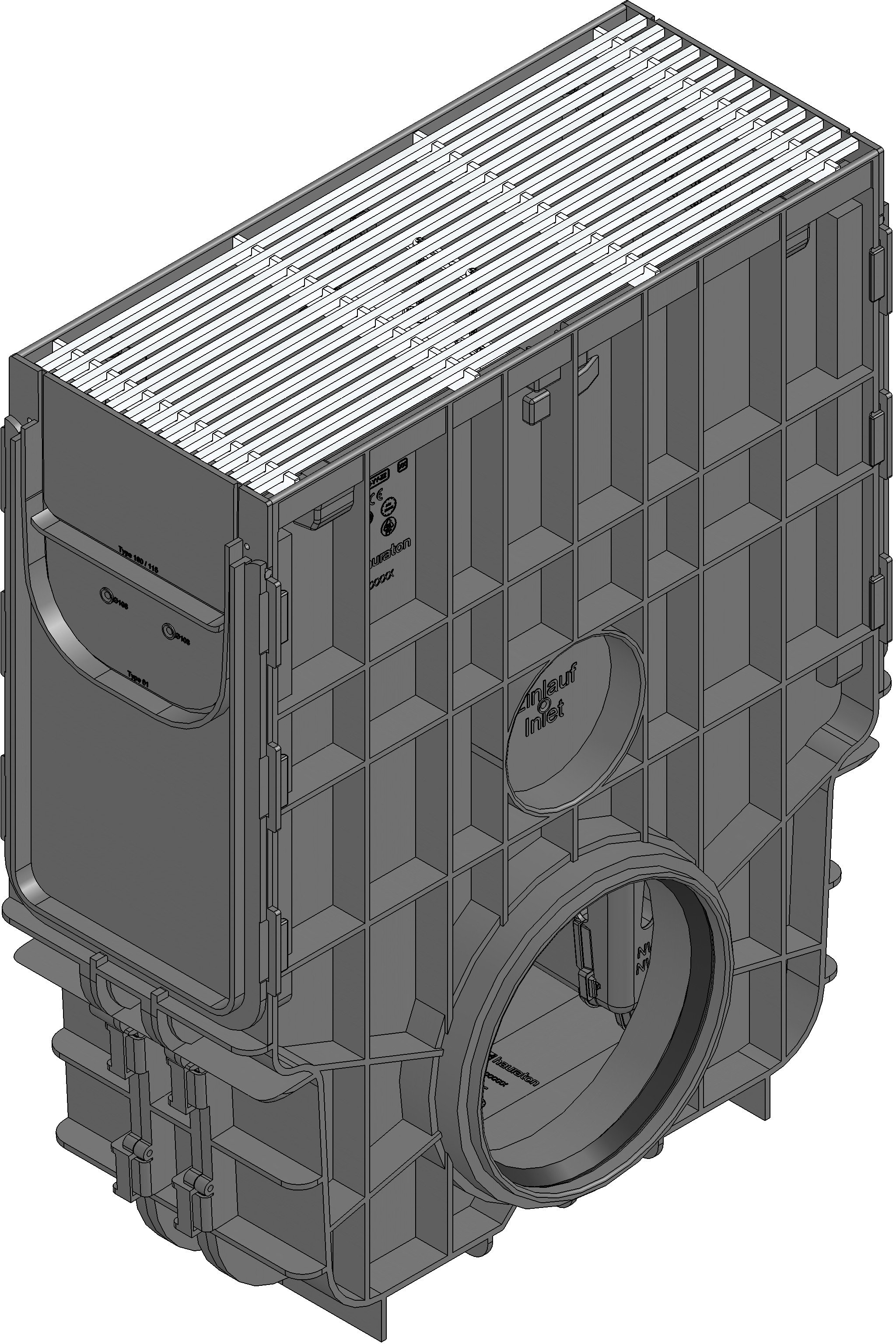

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40023
Length
500 mm
Width
212 mm
Height
643 mm
Einlegetiefe
20 mm
Weight
9.24 kg
Material
recycled, modified Polypropylene, Stainless steel (V2A), Stainless steel 1.4301
Intake cross-section
1156.0 cm²/m
Nominal size
150
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames, with longitudinal cover Filigree, bar distance 8 mm, stainless steel, cl. A 15, locked, with silt bucket made of recycled PP, 2 end caps made of recycled PP, RECYFIX PRO 150, 0.5 m
Product description
RECYFIX PRO 150 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 150, with longitudinal cover Filigree, bar distance 8 mm, stainless steel CNS 1.4301, with locking, load class A 15 according to EN 1433, LxWxH 500x212x643 mm, item no. 40023
Packaging unit
8
