Article No. 40034
Trash boxes
for NW 150, with silt bucket made of recycled PP, with ductile iron cover SW 148/9 mm in FIBRETEC design, KTL-coated, class D 400, with 4-fold bolting, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

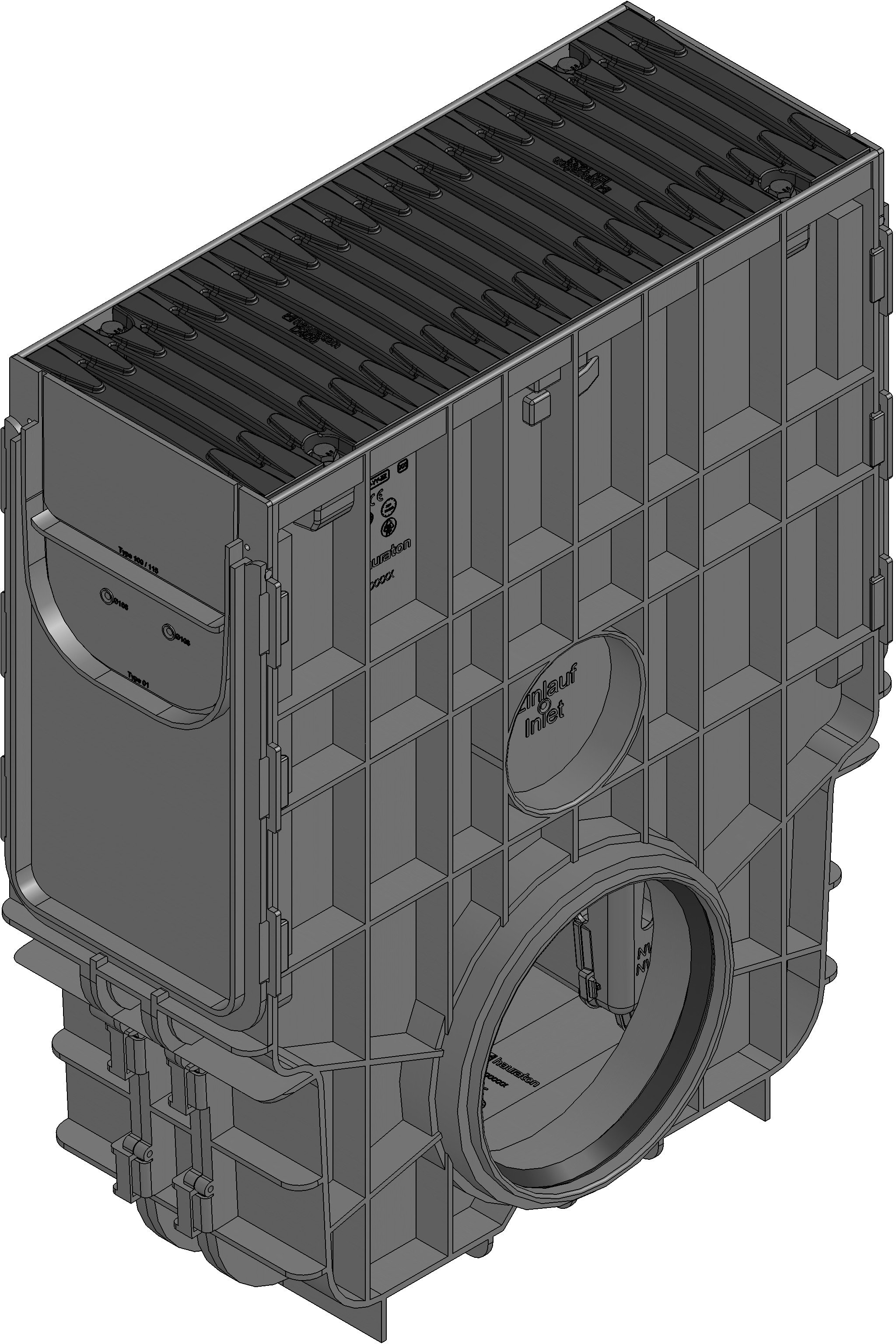

Product image

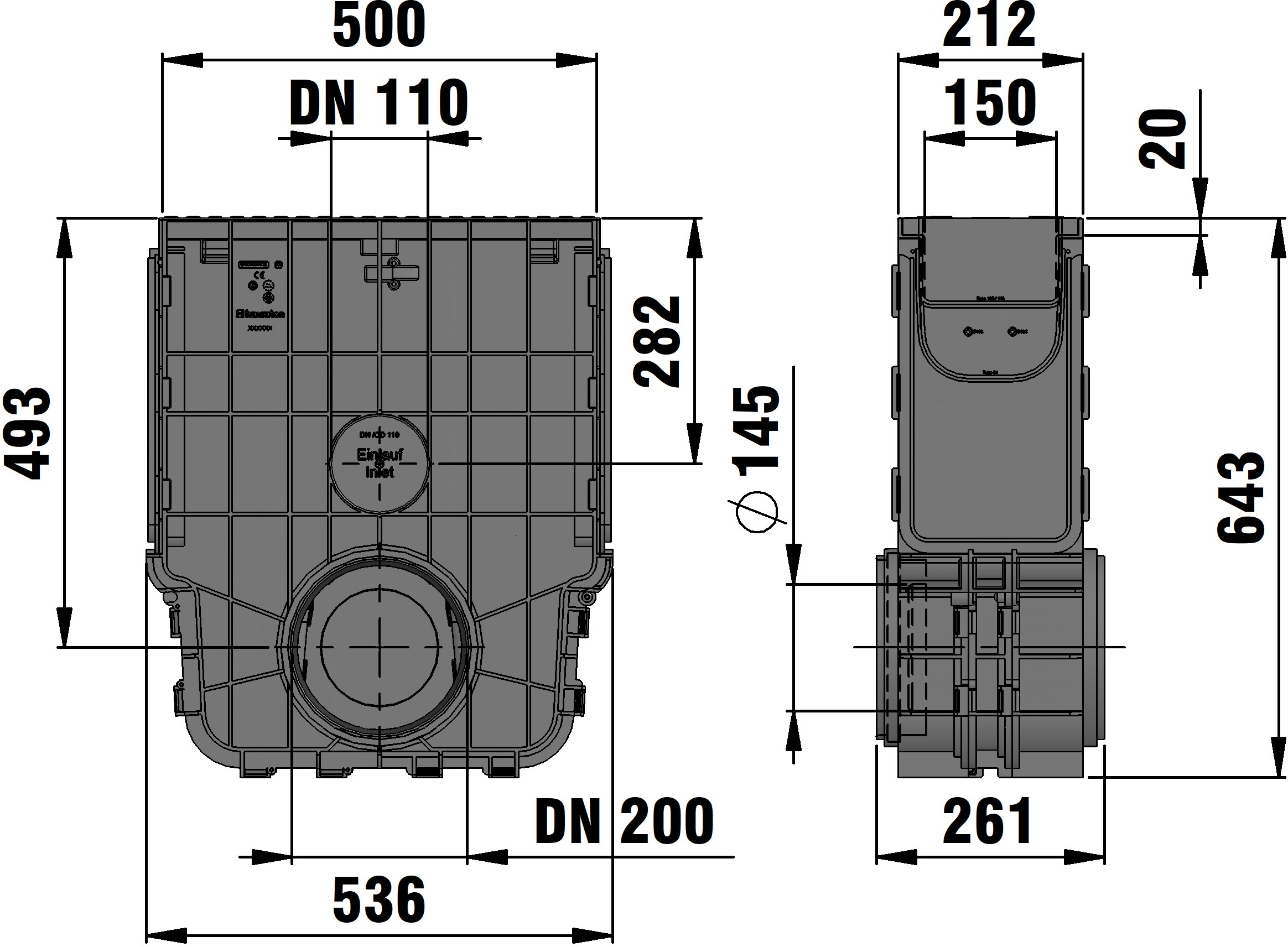

Technical drawing
Drawing (CAD)
Drawing

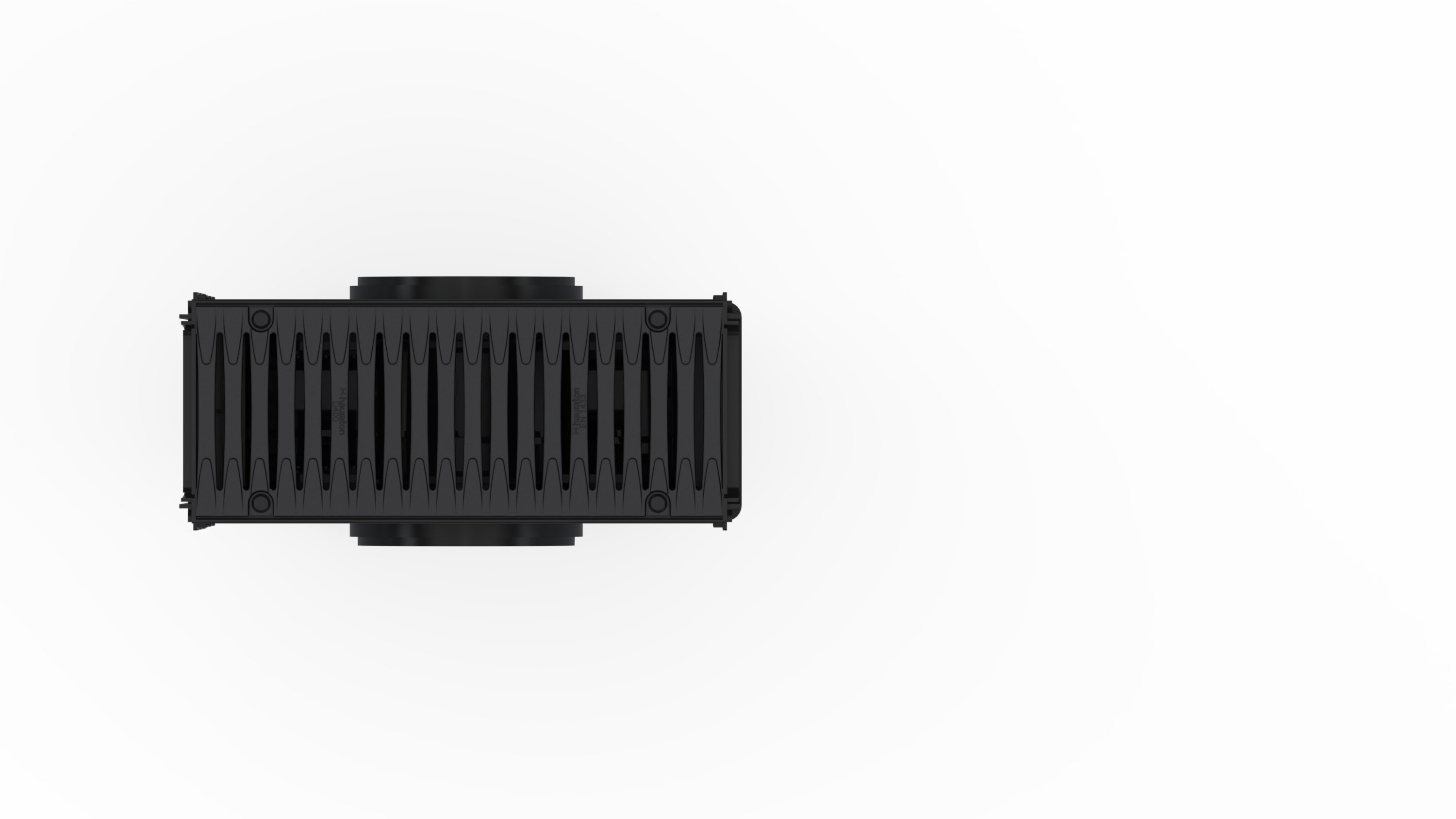

Top view
Technical information and metrics
Article No.
40034
Length
500 mm
Width
212 mm
Height
643 mm
Einlegetiefe
20 mm
Weight
14.30 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
417.0 cm²/m
Nominal size
150
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with ductile iron cover SW 148/9 mm in FIBRETEC design, KTL-coated, cl. D 400, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX NC 150, 0.5 m
Product description
RECYFIX NC 150 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of composite, with 2 end caps made of composite suitable for both-sided connection of channel types RECYFIX NC 150, with ductile iron cover SW 148/9 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS, KTL-coated, with longitudinal slide protection, with 4-fold bolting, load class A 15 - D 400 according to EN 1433, LxWxH 500x212x643 mm, item no. 40034
Packaging unit
8
