Article No. 47254
Trash boxes
for NW 200, with edge frames made of KTL-coated steel and silt bucket made of galvanised steel, with longitudinal ductile iron cover, bar distance 9 mm, KTL-coated, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

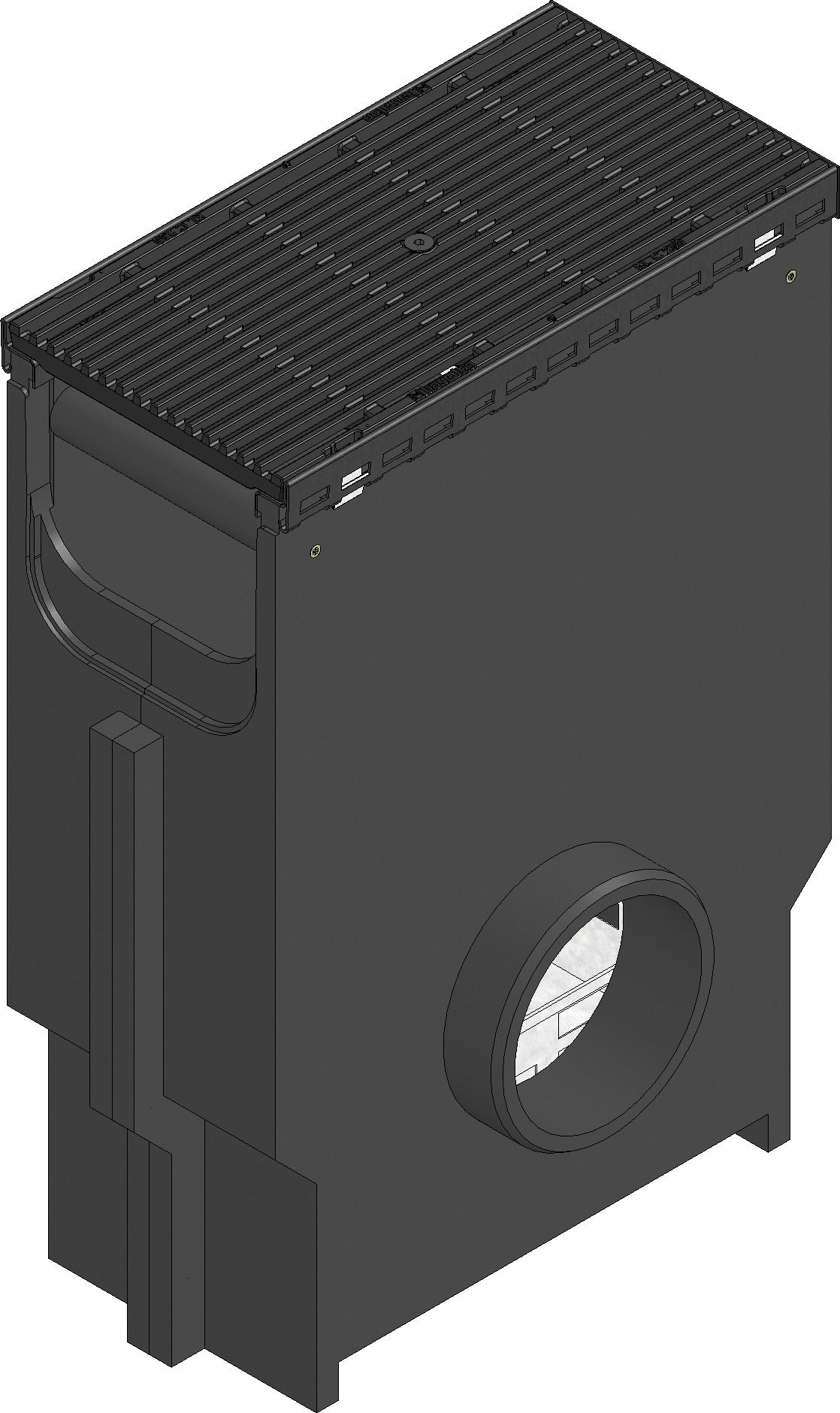

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
47254
Length
500 mm
Width
262 mm
Height
752 mm
Einlegetiefe
20 mm
Weight
36.20 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, KTL coated steel, recycled polyolefin, Steel black galvanised
Intake cross-section
951.0 cm²/m
Nominal size
200
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of KTL-coated steel, with longitudinal ductile iron cover, bar distance 9 mm, KTL-coated, cl. C 250, locked, with silt bucket made of galvanised steel, RECYFIX PRO 200, 0.5 m
Product description
RECYFIX PRO 200 - Sump unit made of recycled polyolefin, with edge frames made of KTL-coated steel, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of channel types RECYFIX PRO 200, with longitudinal ductile iron cover bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x752 mm, item no. 47254
Packaging unit
4
