Article No. 40070
Trash boxes
for NW 200, with silt bucket made of recycled PP, with longitudinal ductile iron cover, bar distance 9 mm, KTL-coated, class C 250 , locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

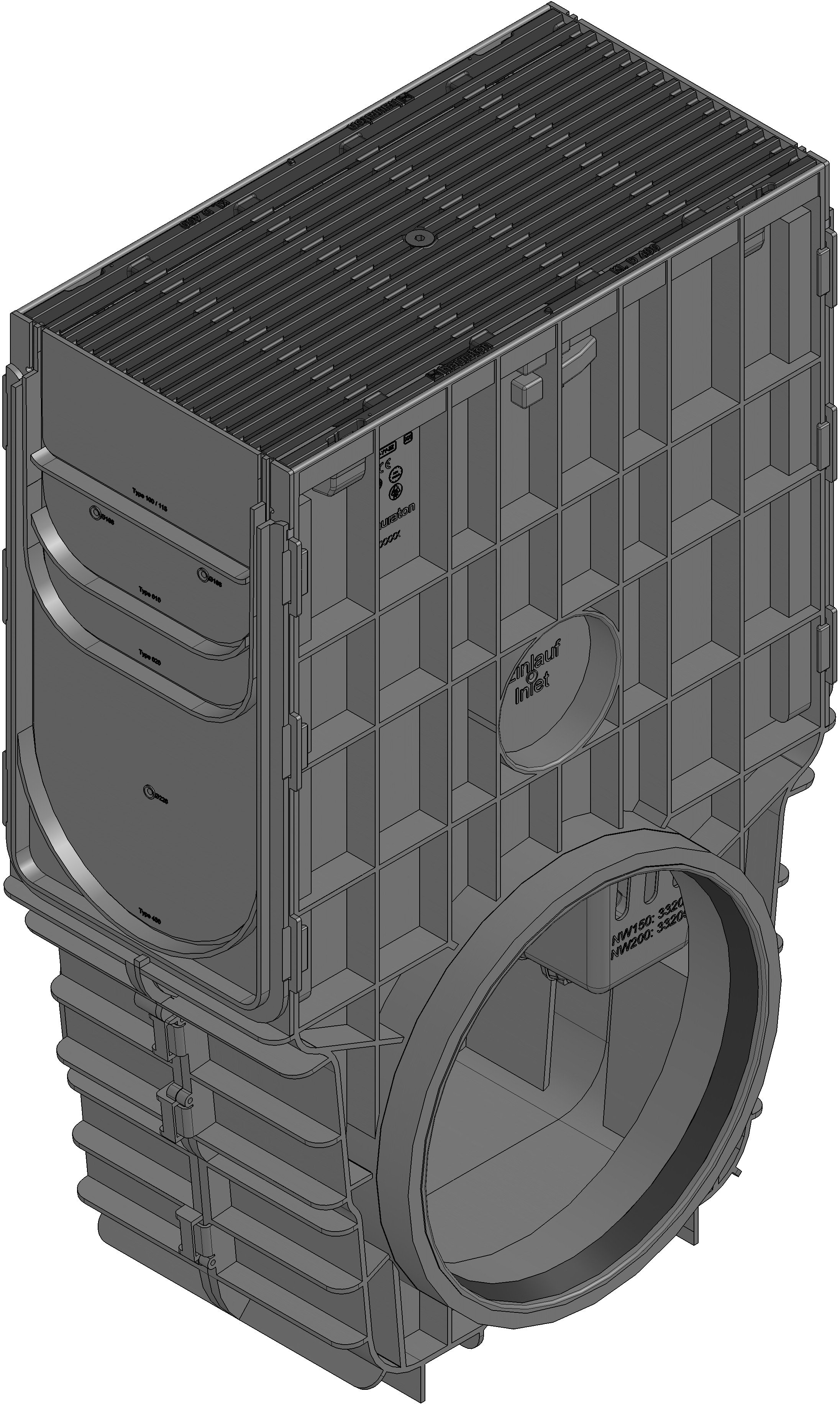

Product image

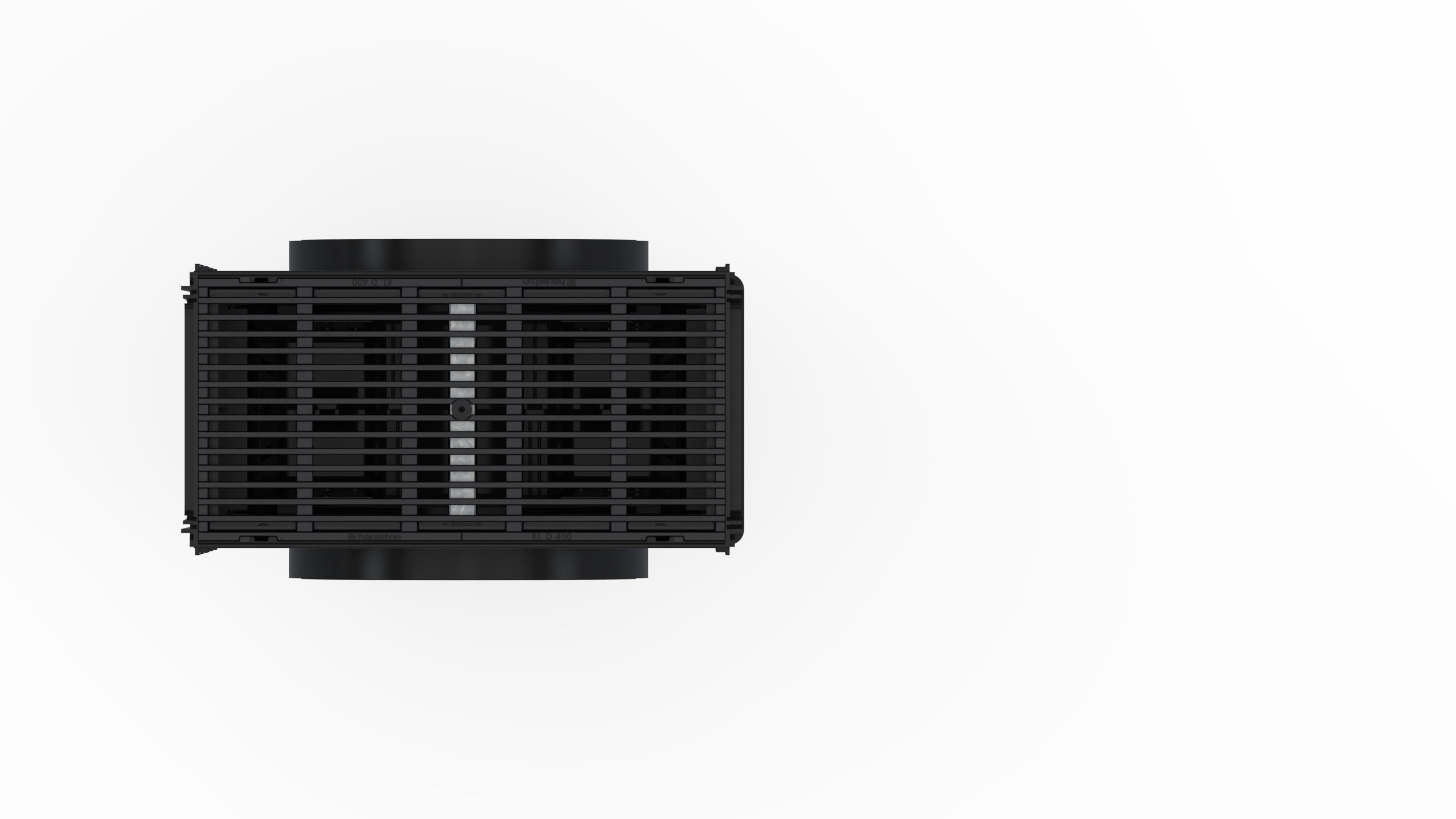

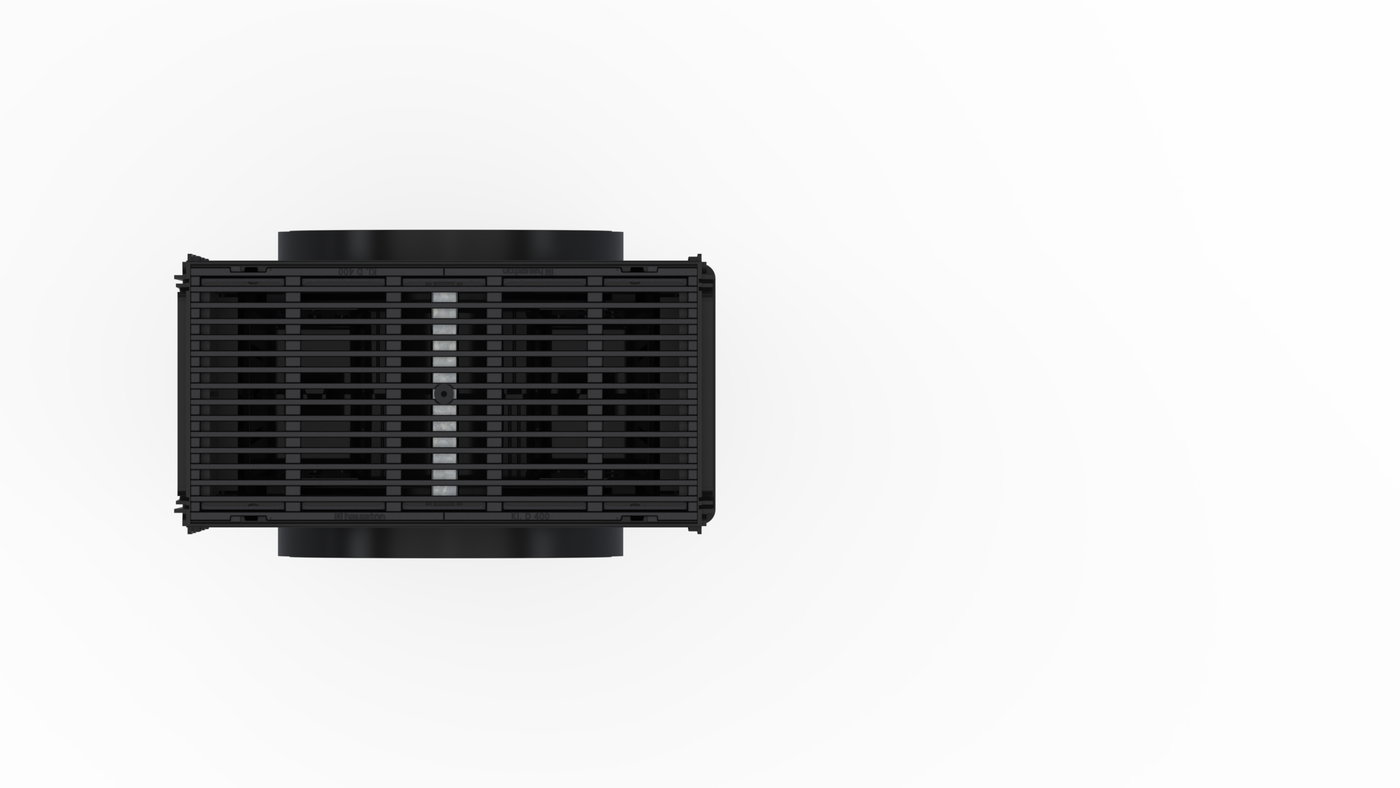

Top view

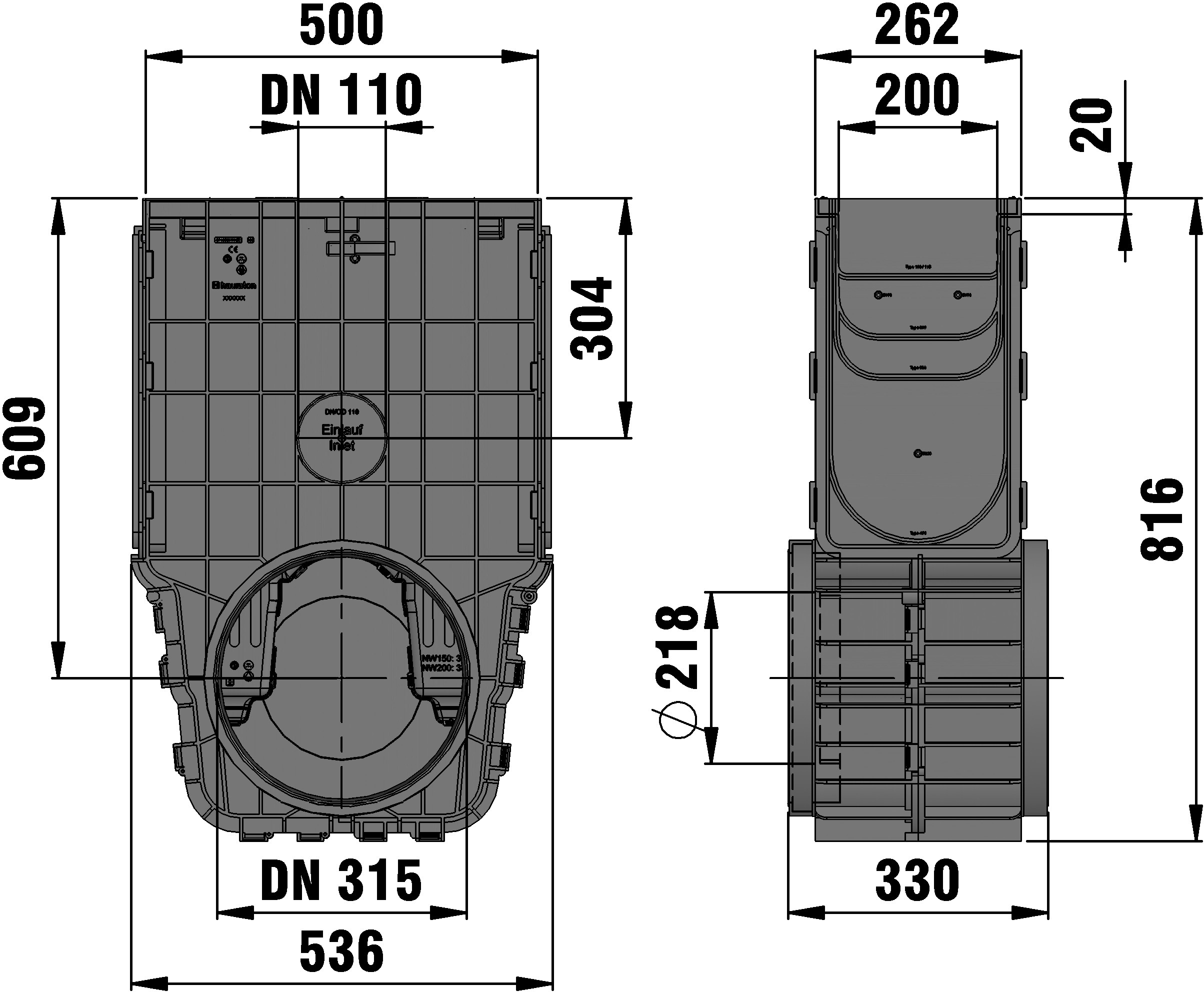

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40070
Length
500 mm
Width
262 mm
Height
816 mm
Einlegetiefe
20 mm
Weight
18.45 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
951.0 cm²/m
Nominal size
200
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with 2 end caps made of recycled PP, with longitudinal ductile iron cover, bar distance 9 mm, KTL-coated, cl. C 250, locked, with silt bucket made of recycled PP, RECYFIX PRO 200, 0.5 m
Product description
RECYFIX PRO 200 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 200, with longitudinal ductile iron cover, bar distance 9 mm, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x816 mm, item no. 40070
Packaging unit
4
