Article No. 24450
Trash boxes
for NW 300, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, 0.51 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

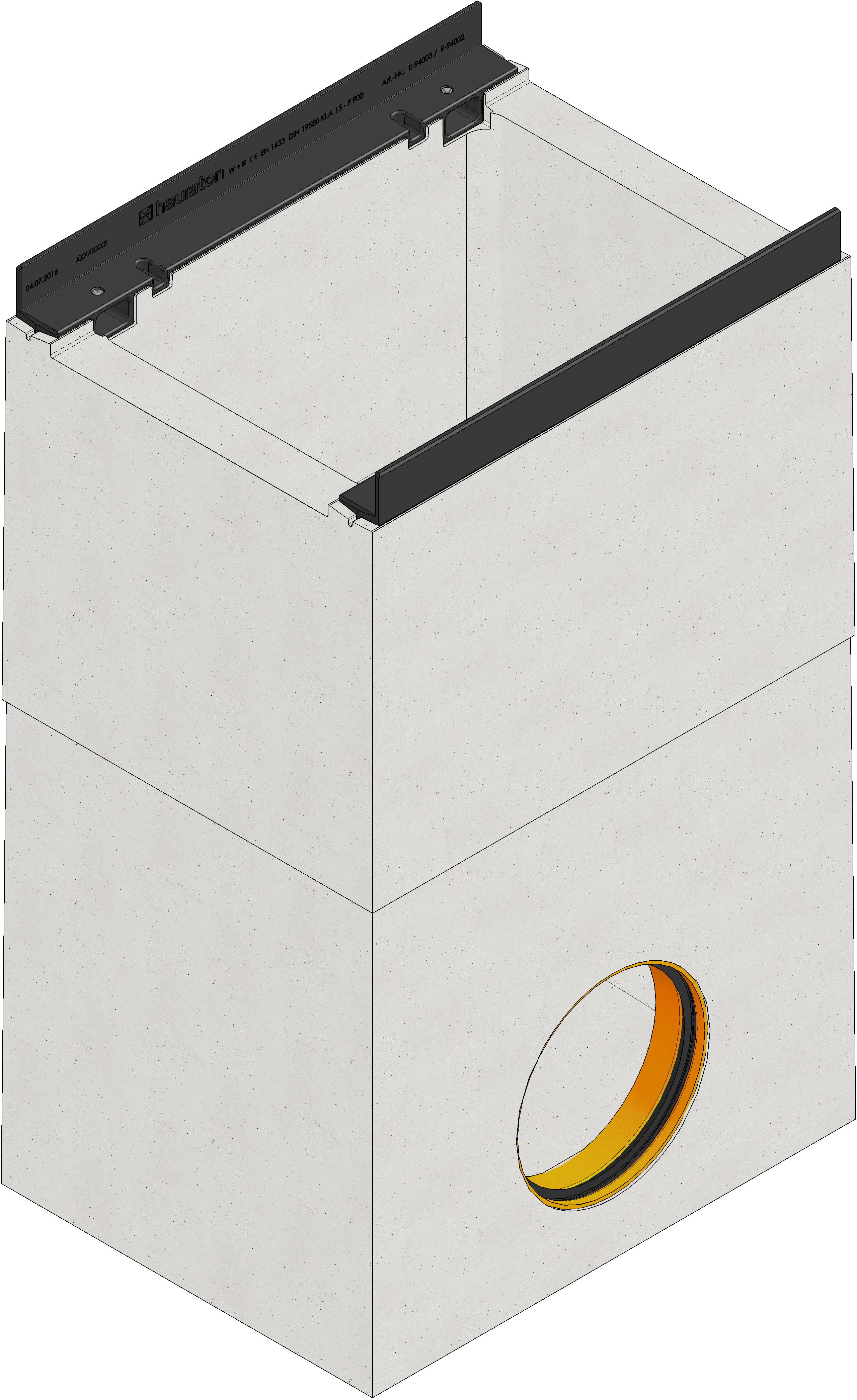

Product image

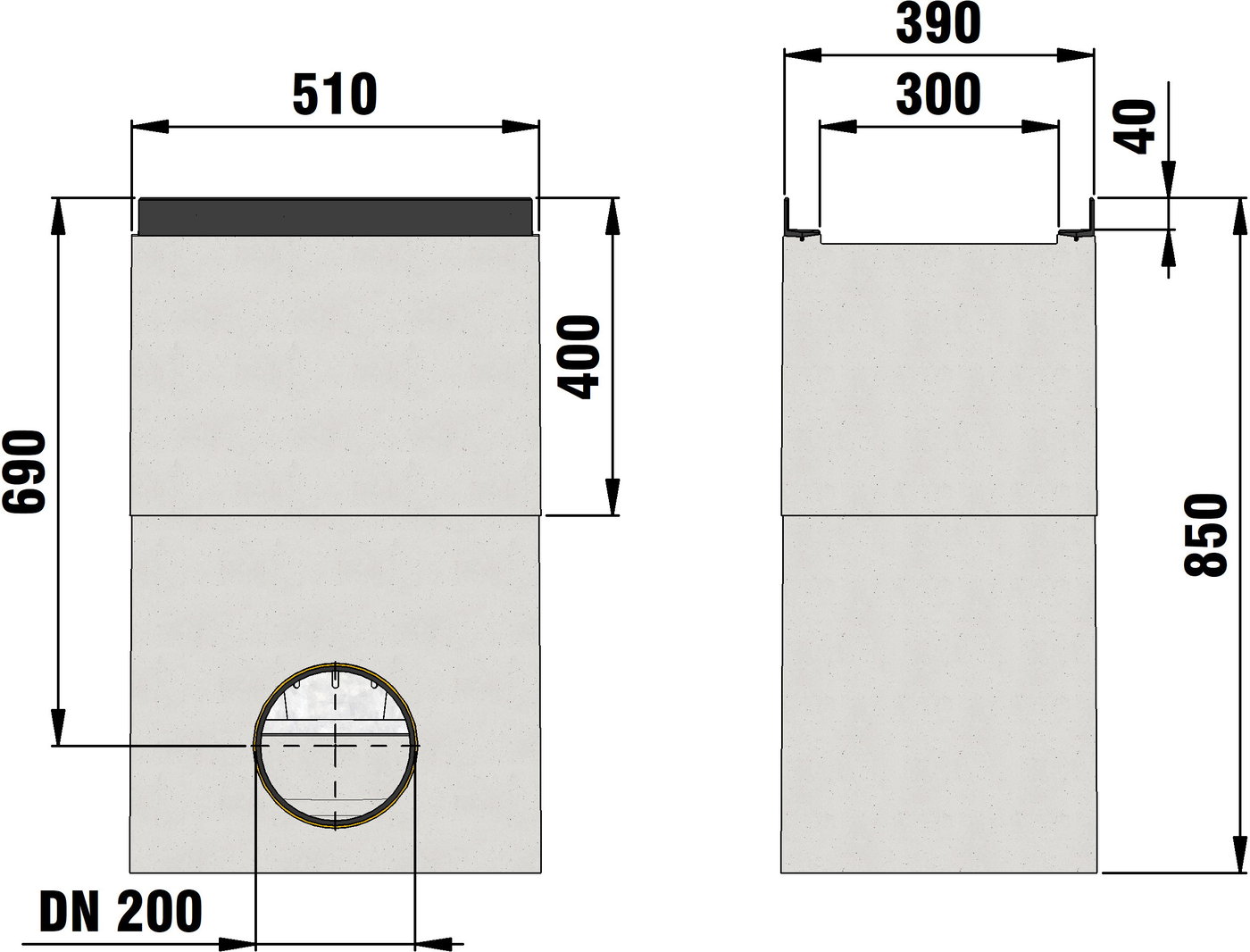

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
24450
Length
510 mm
Width
390 mm
Height
850 mm
Weight
184.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, FASERFIX SUPER 300, 0.51 m
Product description
FASERFIX SUPER 300 - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of KTL-coated ductile iron, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX SUPER 100 -300, 4-fold bolting per 0.5 m piece, LxWxH 510x390x850 mm, item no. 24450
Packaging unit
6
