Article No. 24051
Trash boxes
for NW 300, for type 01, 2-part, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised steel, with outlet Ø 276 mm, 0.51 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

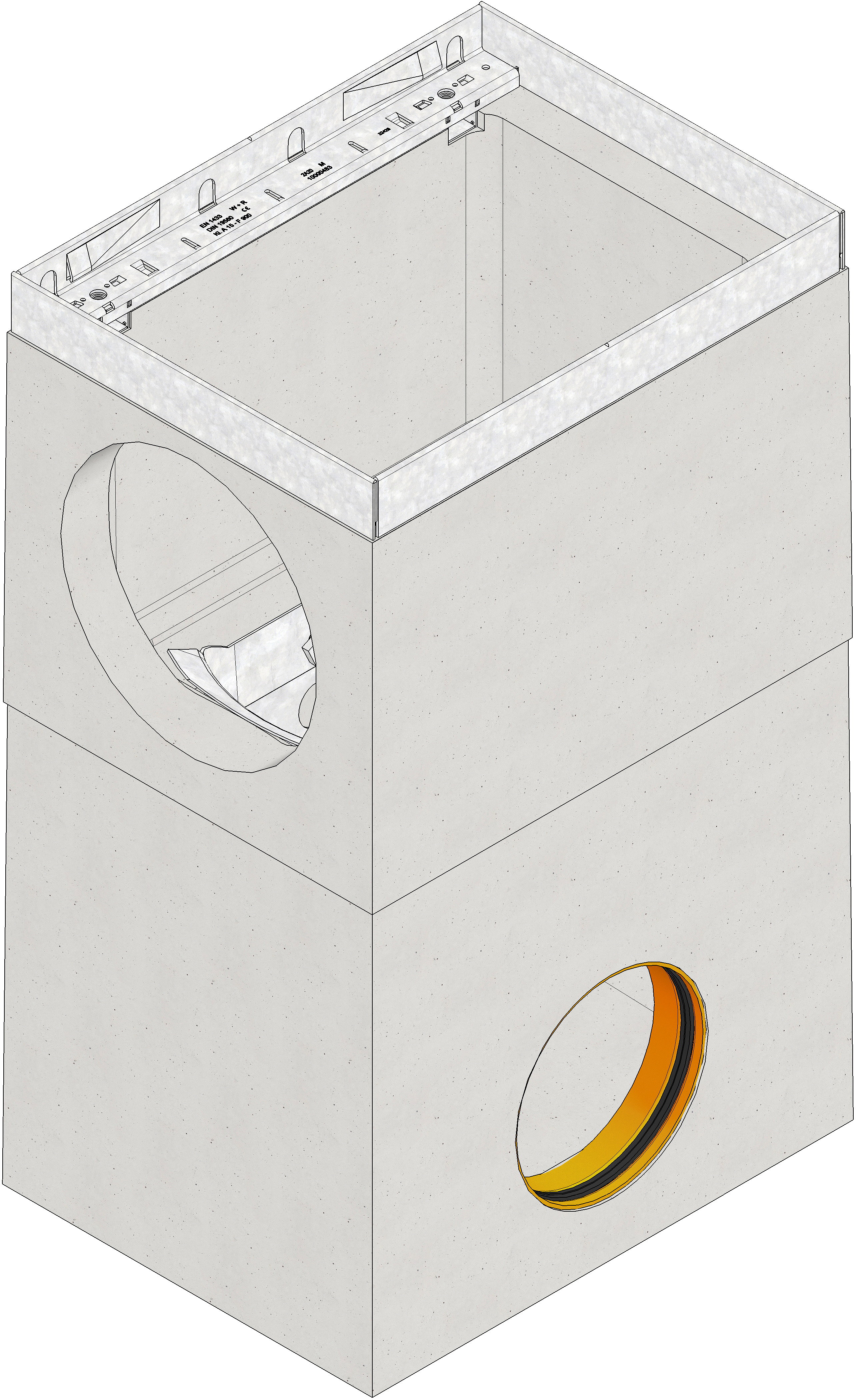

Product image

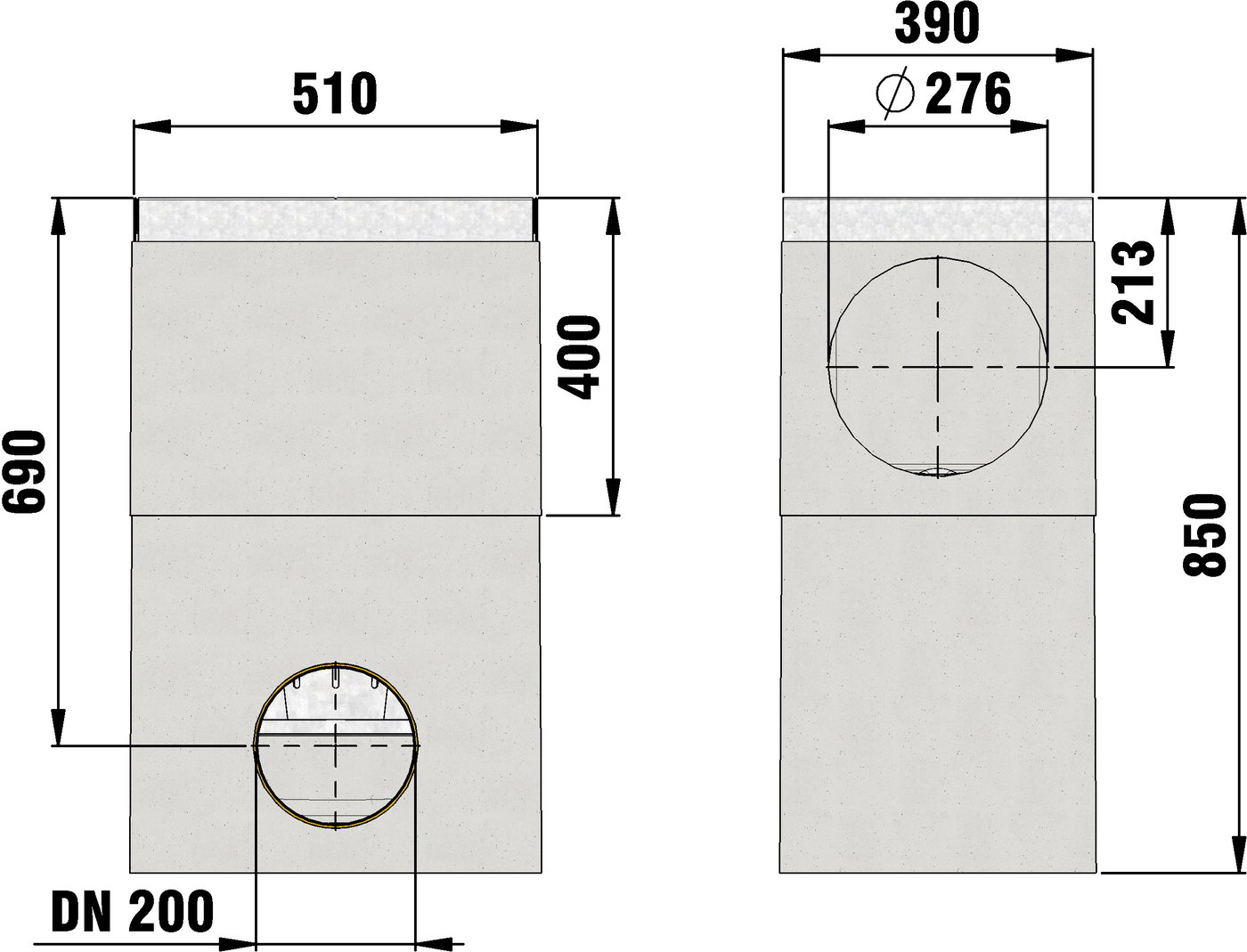

Technical drawing
Drawing (CAD)

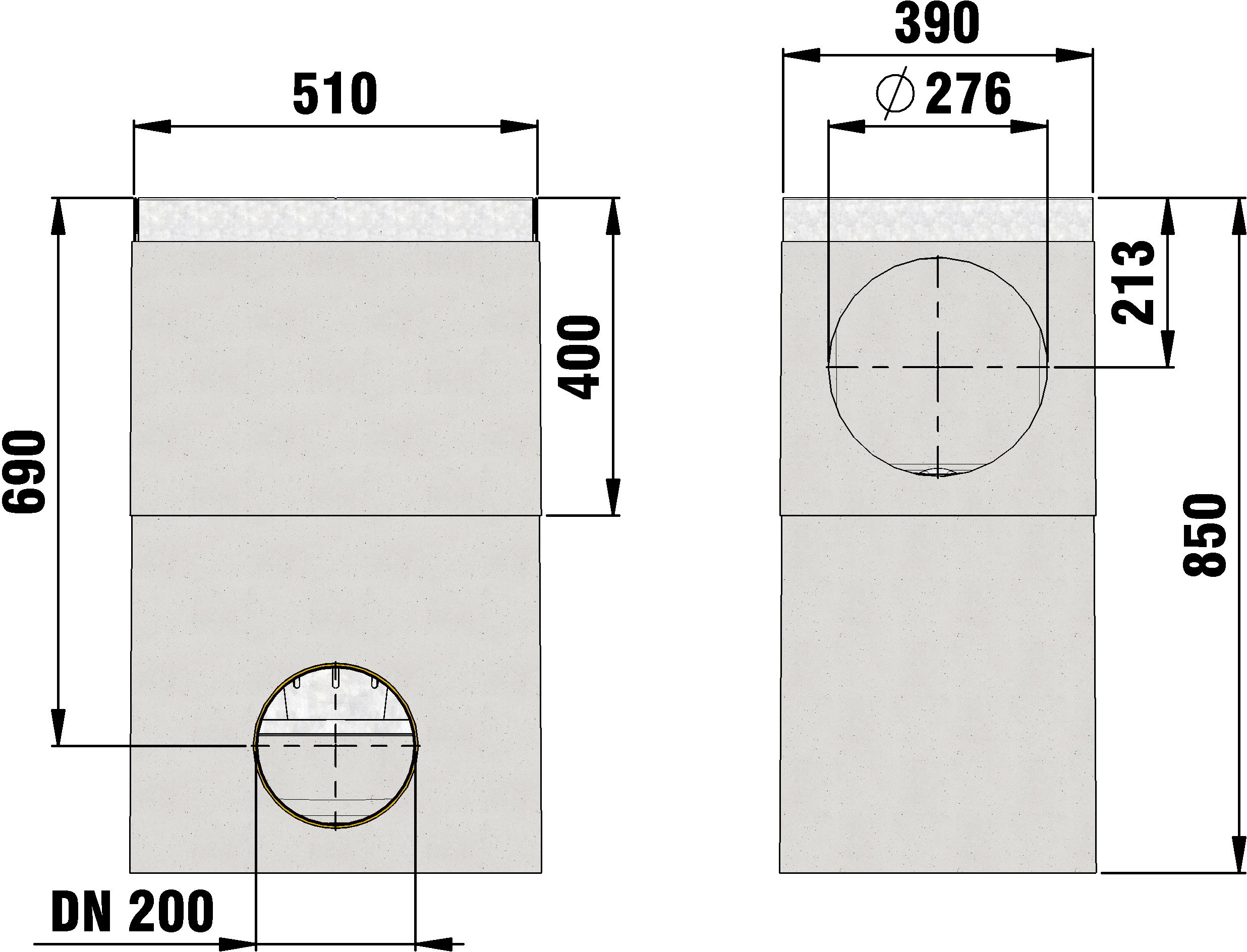

Drawing
Technical information and metrics
Article No.
24051
Length
510 mm
Width
390 mm
Height
850 mm
Weight
173.89 kg
Material
Standard concrete acc. norm, Steel with zinc-magnesium coating
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised steel, with outlet Ø 276 mm in top part for connection of channel FASERFIX SUPER 300 type 01, 0.51 m
Product description
FASERFIX SUPER 300 type 01 - Sump unit, 2-part, made of fibre-reinforced concrete, with outlet Ø 276 mm in top part for connection of channel FASERFIX SUPER 300 type 01, load class A 15 - F 900 according to EN 1433, CE compliant, with all-round edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the cover, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, LxWxH 510x390x850 mm, item no. 24051
Packaging unit
-
