Article No. 40083
Trash boxes
for NW 300, with silt bucket made of recycled PP, with ductile iron cover G-TEC 2x SW 141/9 mm, KTL-coated, class C 250, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

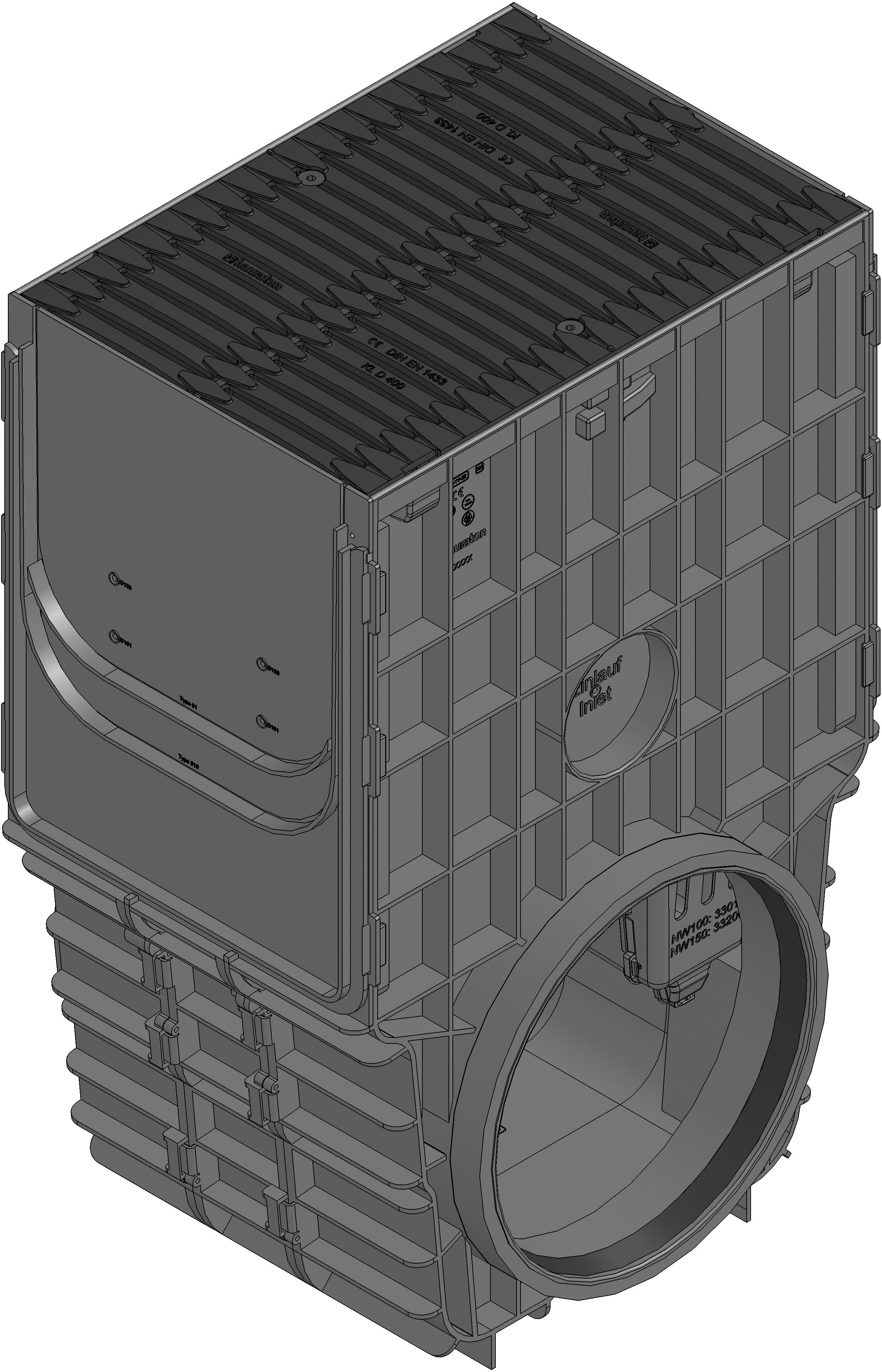

Product image
Technical drawing
Drawing (CAD)

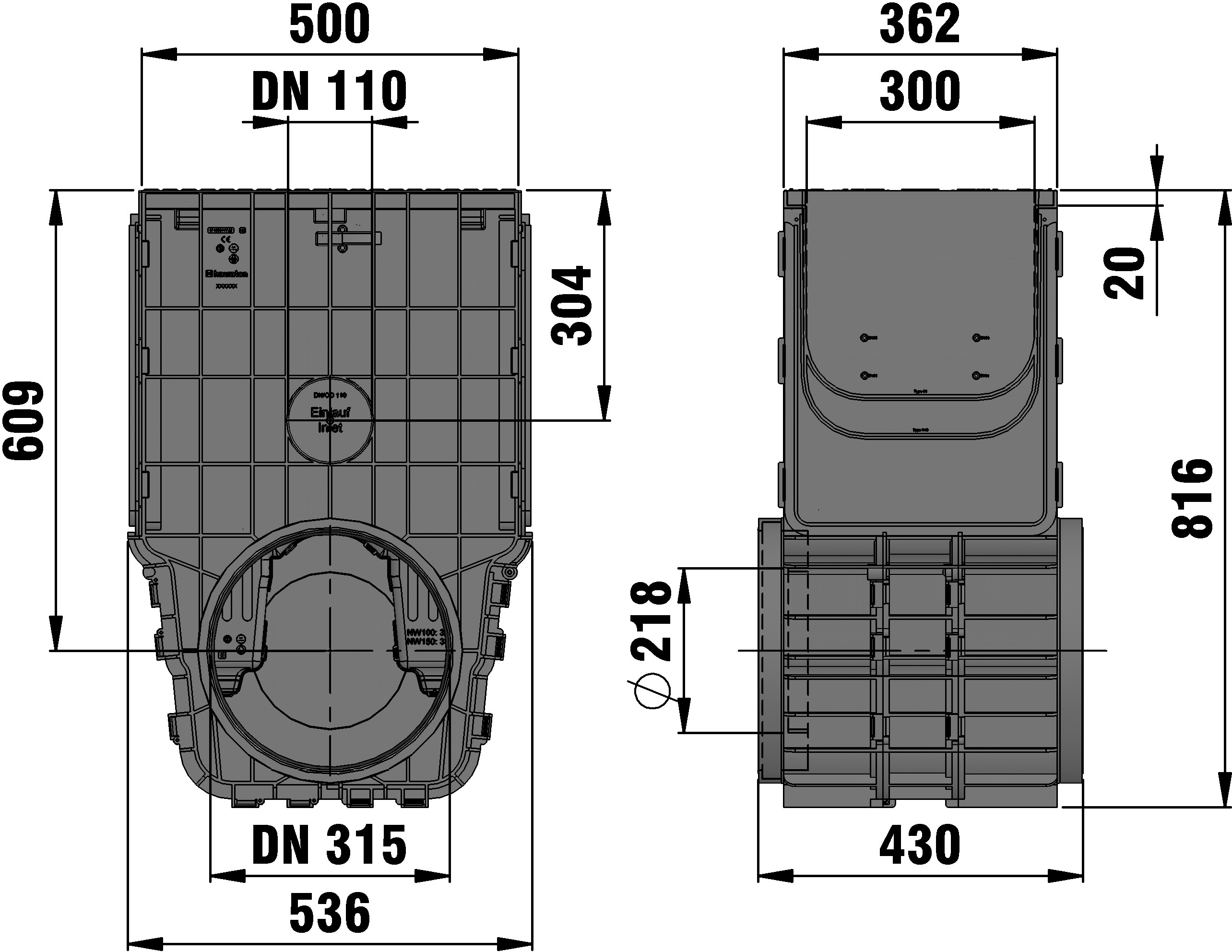

Drawing

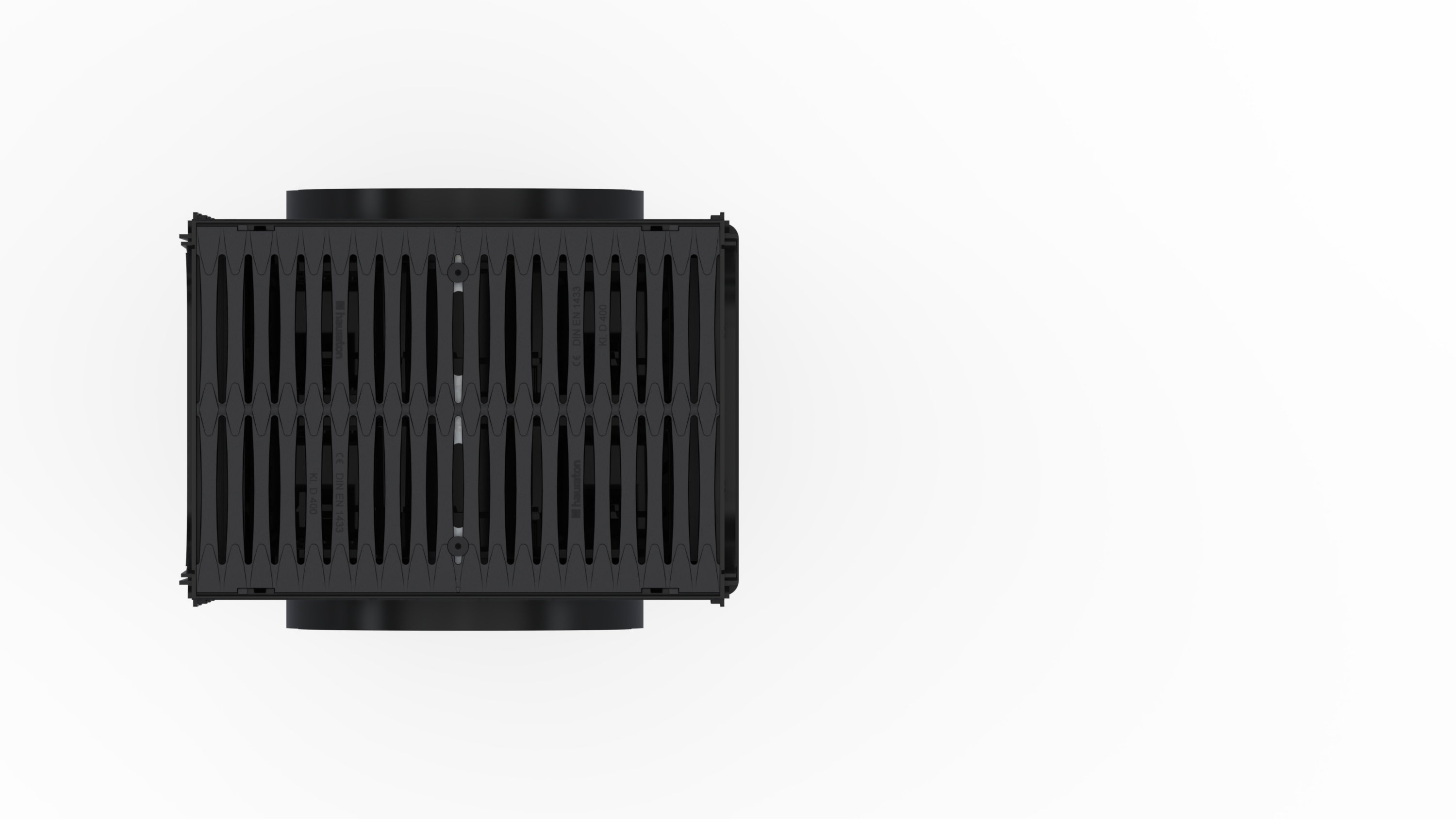

Top view
Technical information and metrics
Article No.
40083
Length
500 mm
Width
362 mm
Height
816 mm
Einlegetiefe
20 mm
Weight
25.61 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Steel black galvanised, strip galvanized steel
Intake cross-section
960.0 cm²/m
Nominal size
300
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with 2 end caps made of recycled PP, with ductile iron cover G-TEC 2x SW 141/9 mm, KTL-coated, cl. C 250, with silt bucket made of recycled PP, RECYFIX PRO 300, 0.5 m
Product description
RECYFIX PRO 300 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 300, ductile iron cover G-TEC 2x SW 141/9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x362x816 mm, item no. 40083
Packaging unit
4
