Article No. 24420
Trash boxes
for NW 400, for Type 01 and Type 01E, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

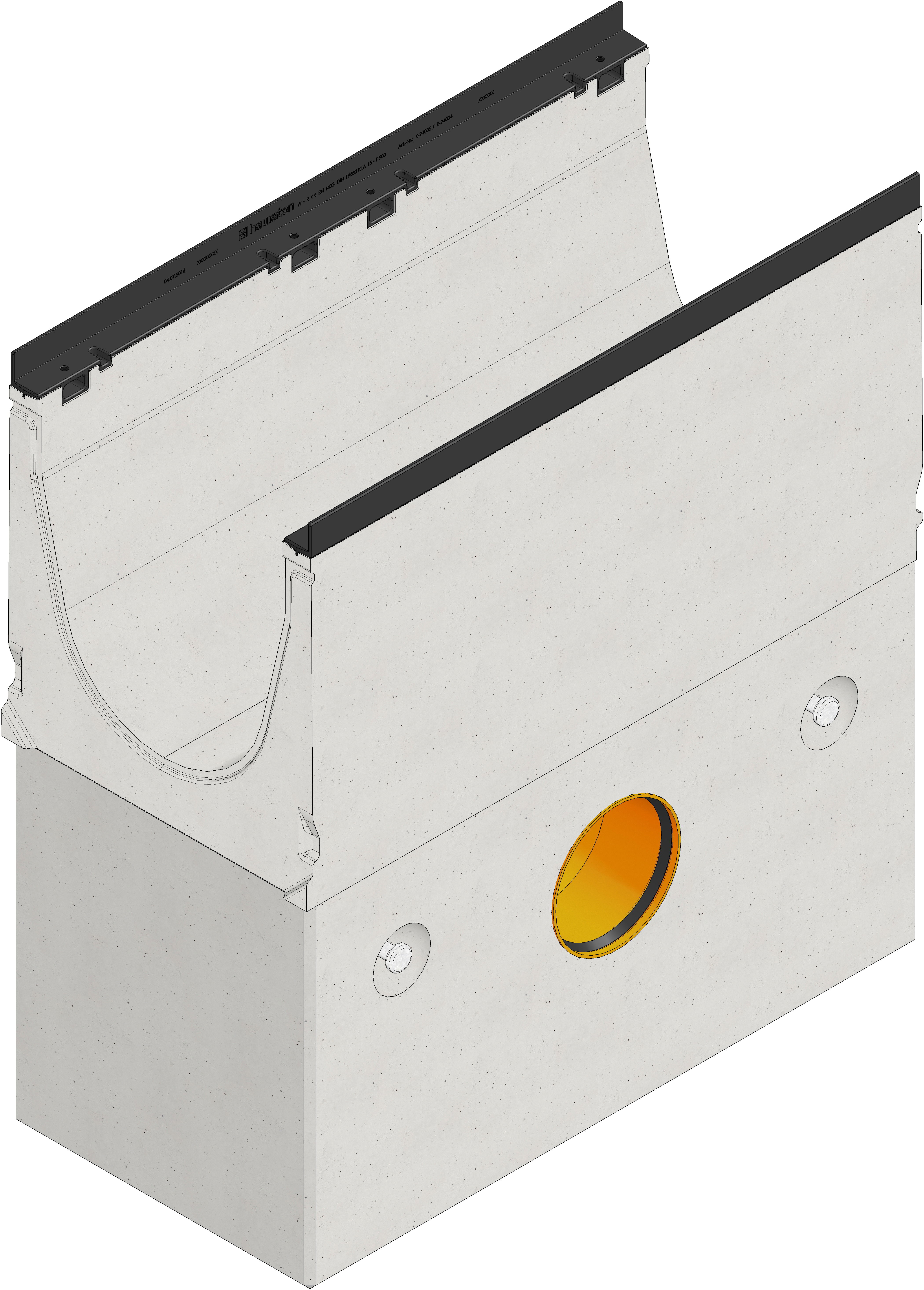

Product image

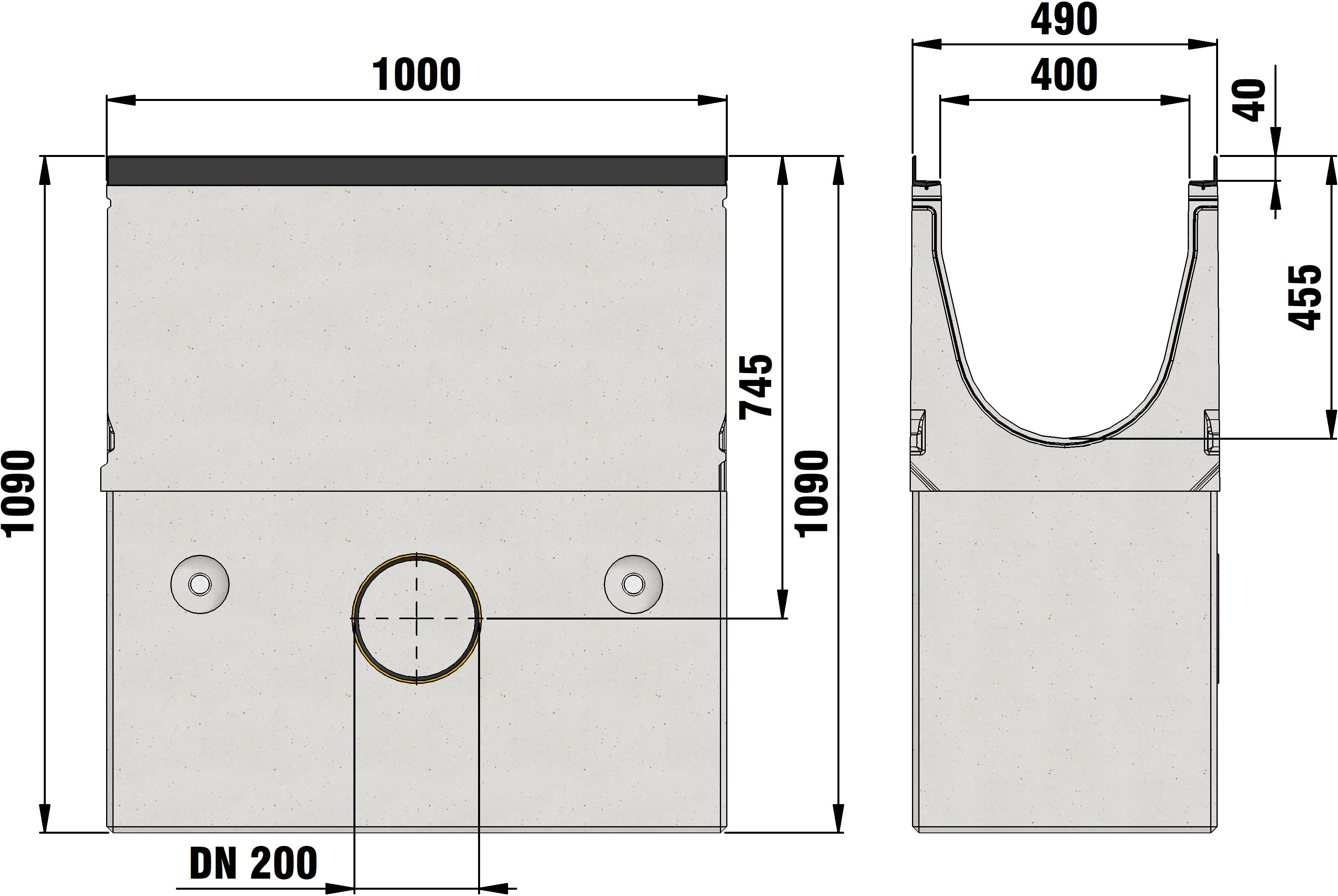

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
24420
Length
1000 mm
Width
490 mm
Height
1090 mm
Weight
847.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
400
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, FASERFIX SUPER 400 type 01/type 01E, 1 m
Product description
FASERFIX SUPER 400 type 01/type 01E - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to DIN 19580/EN 1433, CE compliant, with edge frame made of KTL-coated ductile iron, 8-fold locking, one-sided connection possibility (on the side) with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of FASERFIX SUPER 400 type 01/type 01E, LxWxH 1000x490x1090 mm, item no. 24420
Packaging unit
1
