Article No. 32694
Trash boxes
for system size up to type 8000, with edge frame made of stainles steel, with ductile iron cover, 3x SW 140/20 mm, black, with sealing, class F 900
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

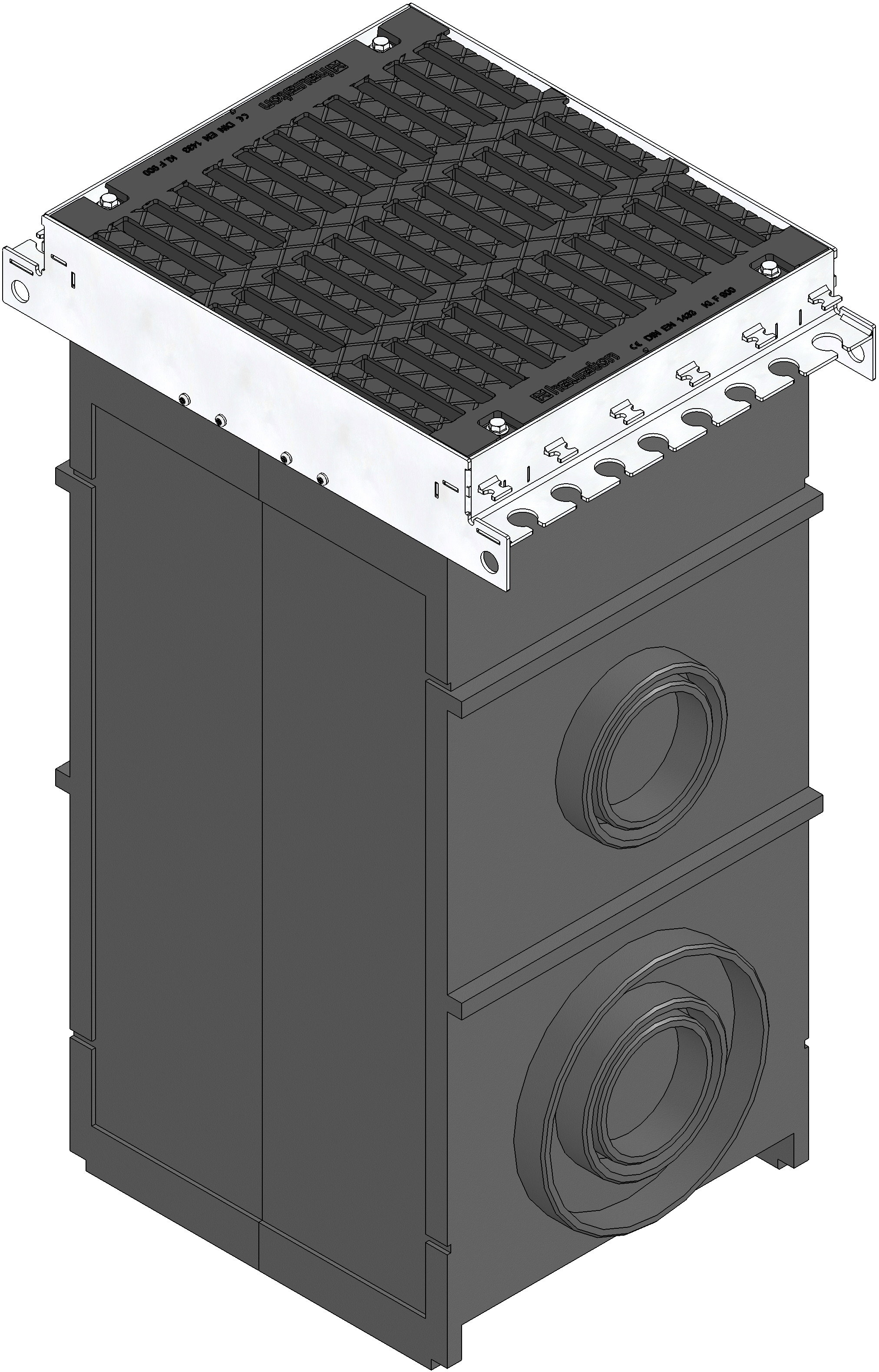

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
32694
Length
510 mm
Width
590 mm
Height
1116 mm
Einlegetiefe
40 mm
Weight
102.01 kg
Material
Ductile iron GJS 500-7, recycled polyolefin, Stainless steel 1.4301
Intake cross-section
1810.0 cm²/m
Nominal size
1000, 2000, 3000, 5000, 8000
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with stainless steel frame, with ductile iron cover 3x SW 140/18 mm, black, cl. F 900, with sealing, RECYFIX HICAP 1000/ 2000/3000/5000/8000
Product description
RECYFIX HICAP 1000/2000/3000/5000/8000 - Sump unit made of recycled polyolefin, according to EN 1433, CE compliant, with all-round edge frame made of stainless steel CNS 1.4301, with ductile iron cover 3x SW 140/18 mm, made of spheroidal ductile iron EN-GJS-500 -7, black, load class A 15 - F 900 according to EN 1433, with sealing, 4-fold locking, 2-sided optional pipe outlet connection possibility DN/OD 160, DN/OD 200, DN/OD 315, for connection of RECYFIX HICAP channels, LxWxH 510x590x1116 mm, item no. 32694
Packaging unit
2
