Article No. 2861
Trash boxes
Ductile iron grating SW 150/20 mm, KTL-coated, with plastic caps, 0.5 m

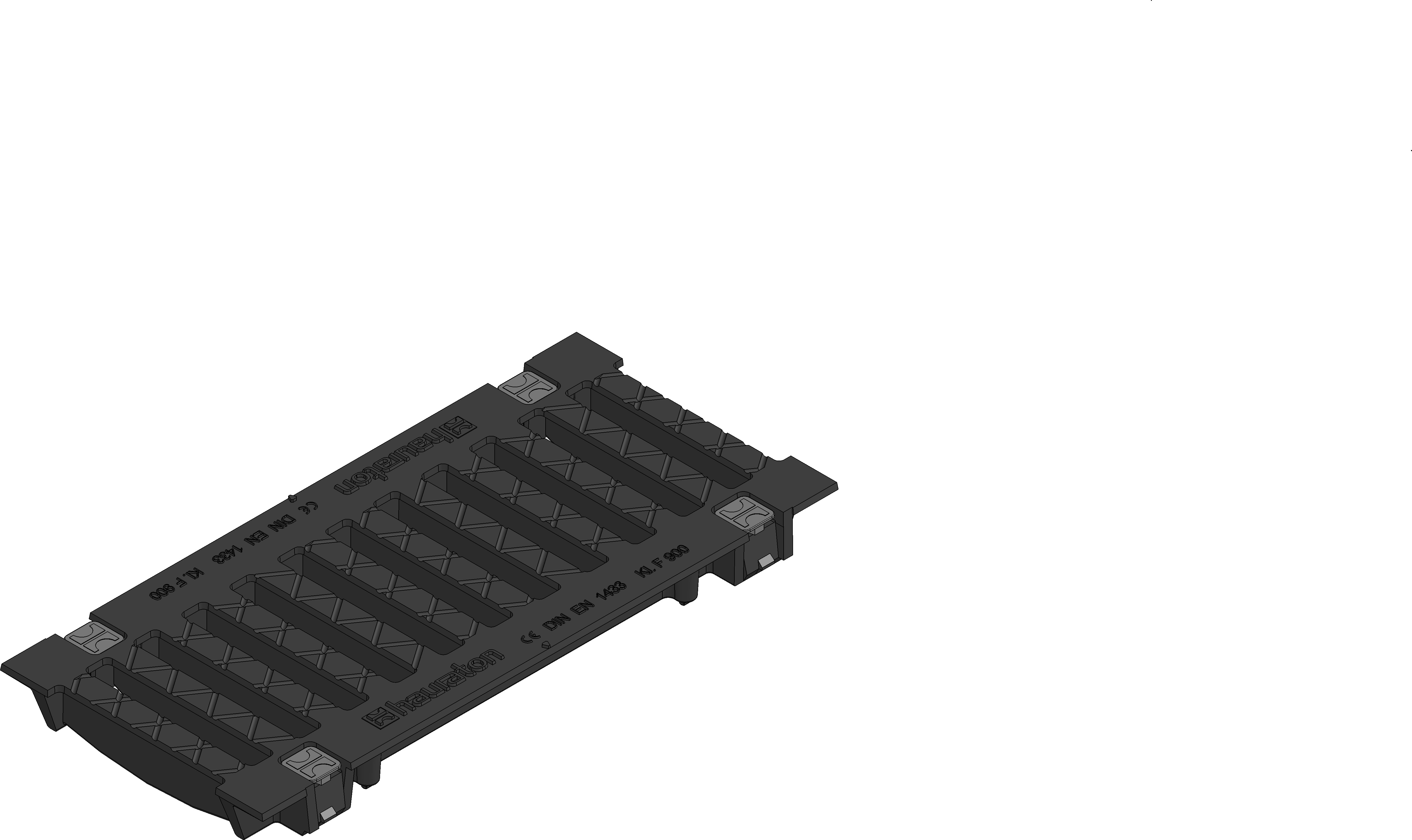

Product image
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
2861
Length
500 mm
Width
229 mm
Height
48 mm
Inlay depth
40 mm
Weight
9.90 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
710.0 cm²/m
Nominal size
150
Inlet opening
150 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating FASERFIX SUPER 150, cl. F, SW 20 mm, KTL-coated, 0.5 m
Product description
FASERFI SUPER 150 - Ductile iron grating, loading capacity A 15 - F 900 acc. DIN V 19580/EN 1433, CE-konform, slot size 150 x 20 mm, length 500 mm, KTL-coated, 4-times locking, with plastic pins, Art.-no. 2861
Packaging unit
98
