Article No. 3861
Trash boxes
Ductile iron grating, SW 170/20 mm, KTL-coated, with plastic caps, 0.5 m

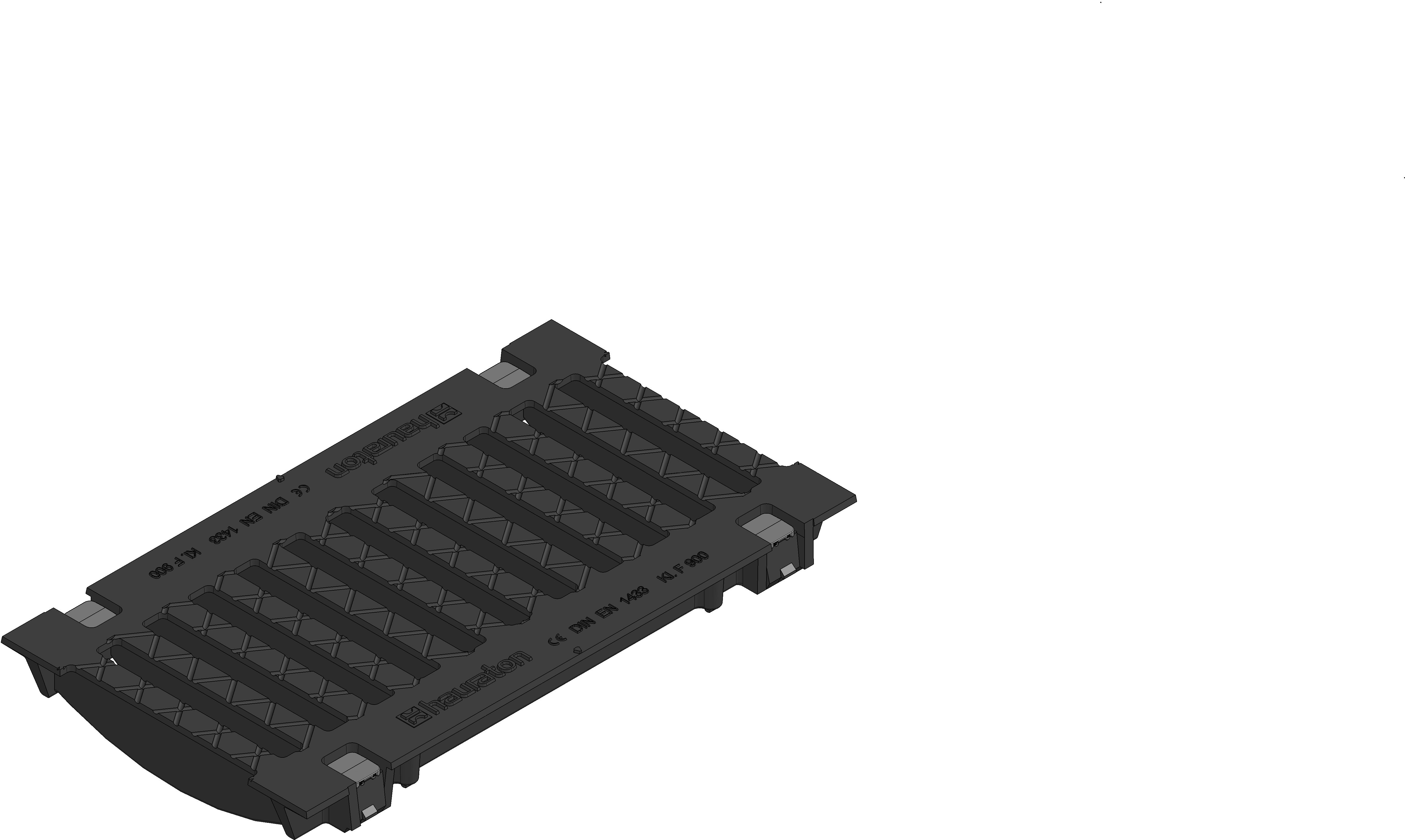

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
3861
Length
500 mm
Width
279 mm
Height
62 mm
Inlay depth
40 mm
Weight
13.70 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
833.0 cm²/m
Nominal size
200
Inlet opening
170 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 170/20 mm, KTL-coated, cl. F 900, FASERFIX SUPER 200, 0.5 m
Product description
FASERFIX SUPER 200 - Ductile iron grating SW 170/20 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, load class A 15 -F 900 according to EN 1433, CE compliant, 4-fold locking, with bolt hole caps, installation length 500 mm, item no. 3861
Packaging unit
84
