Article No. 98016
DRAINFIX CLEAN RNC 400 filter substrate channel with ductile iron grating slot width 3x 118 (133)/18 mm for class D 400 with drainage pipe with geotextile and connection element
Type 010, starting element, 1.0 m

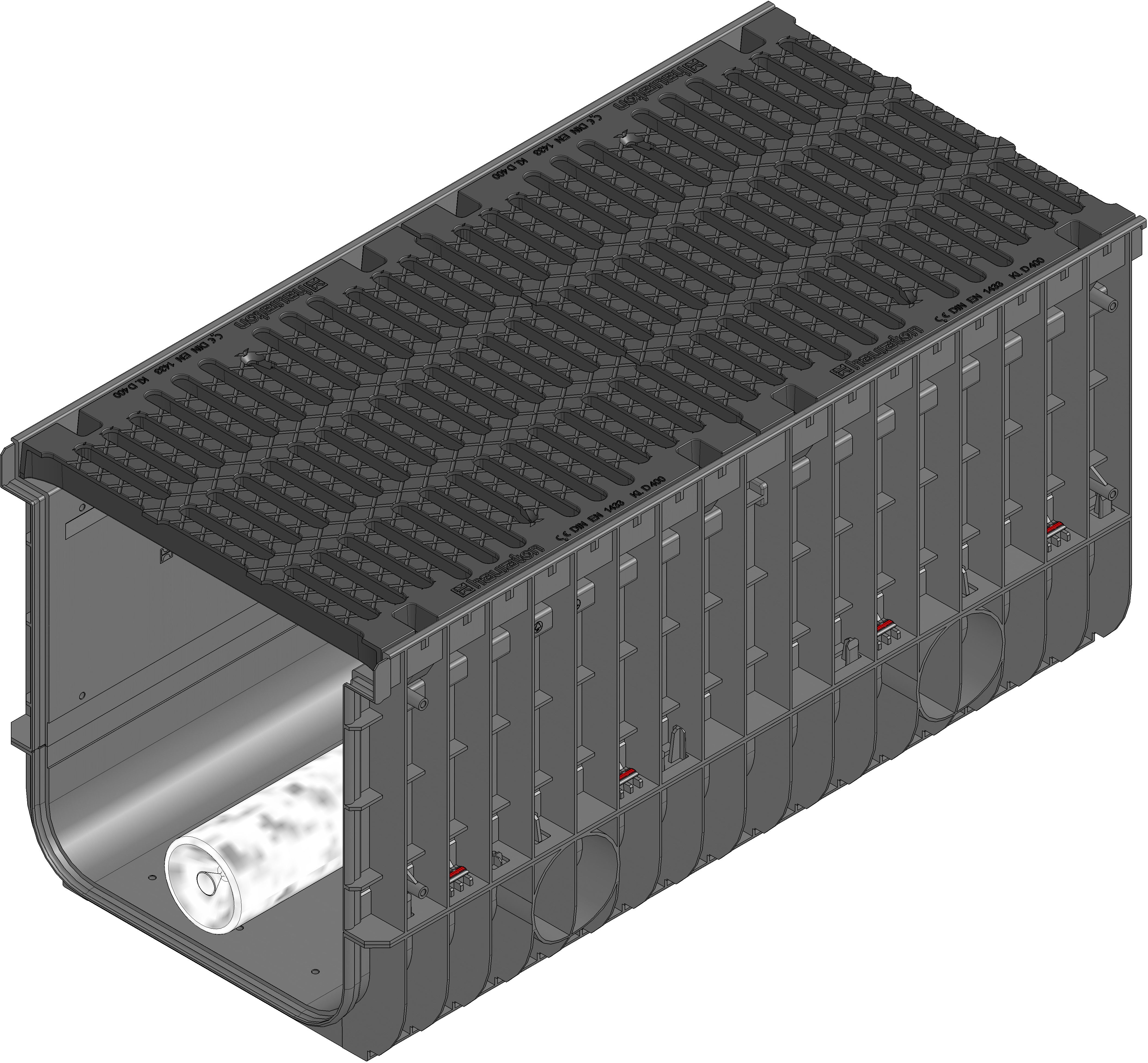

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
98016
Length
1000 mm
Width
500 mm
Height
500 mm
Weight
58.49 kg
Retention volume
68.5 l/m
Retention cross-section
685.0 cm²
Height filling of substratum
(effective, from the middle of the filter grid tube to the top edge of the substrate)
200.0 mm
Substrate requirement
93.0 l/lfdm.
Nominal size
400
Regulations
EN 1433, DIN 19580
Sales text
DRAINFIX CLEAN RNC 400 type 010 - Starting element, filter substrate channel with the operating principle of surface filtration, with integrated edge frame, with ductile iron grating 3x SW 118 (133)/18 mm, black, cl. D 400, locked, with drainage pipe DN/O
Product description
DRAINFIX CLEAN RNC 400 type 010 - Starting element, filter substrate channel with the operating principle of surface filtration, made of recycled polypropylene, nominal width 400 mm, CE compliant, with national technical approval (abZ by DIBt) number: Z-84.2-7 with integrated edge frames, incl. DRAINFIX CLEAN-Drainage pipe DN/OD 100, wrapped with geotextile and connector, tied at the end, with ductile iron grating 3x SW 118 (133)/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, load class A 15 - D 400 according to EN 1433, with longitudinal slide protection and locking, LxWxH 1000x500x500 mm, item no. 98016
Packaging unit
-
Tender Texts
Installation example

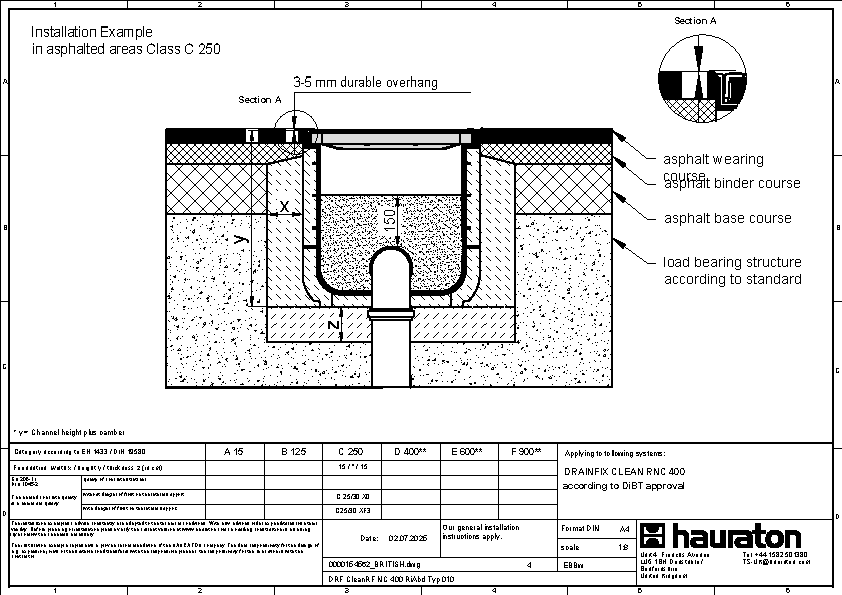

Asphalt class C 250,

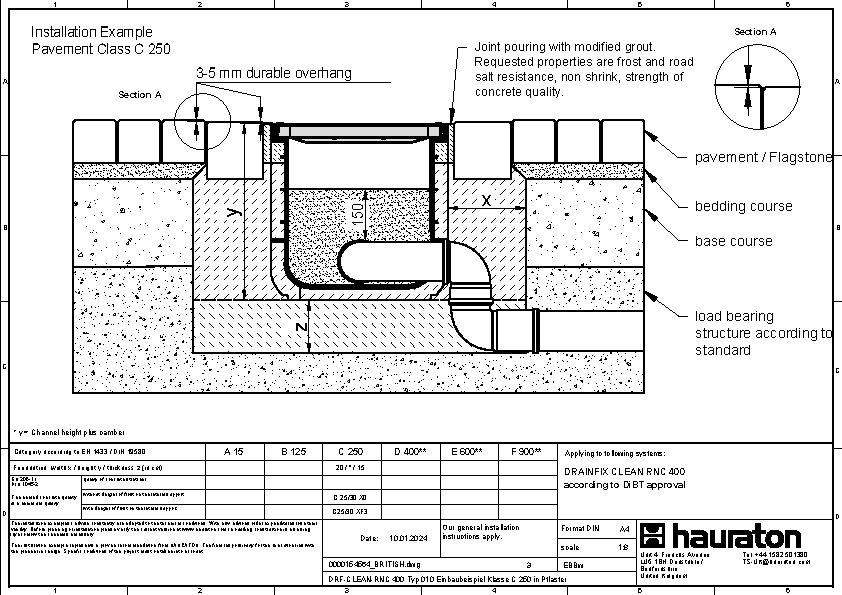

Pavement class C 250,

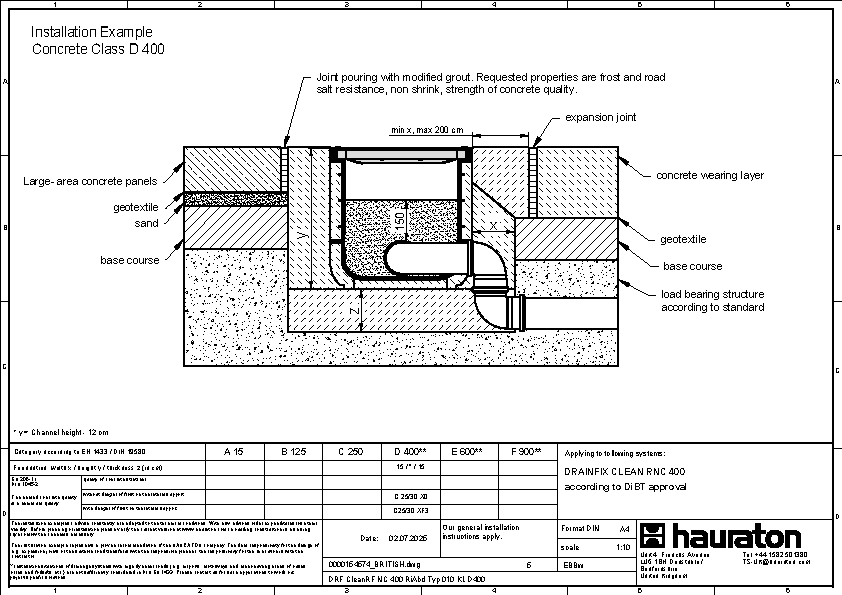

Concrete class D 400,

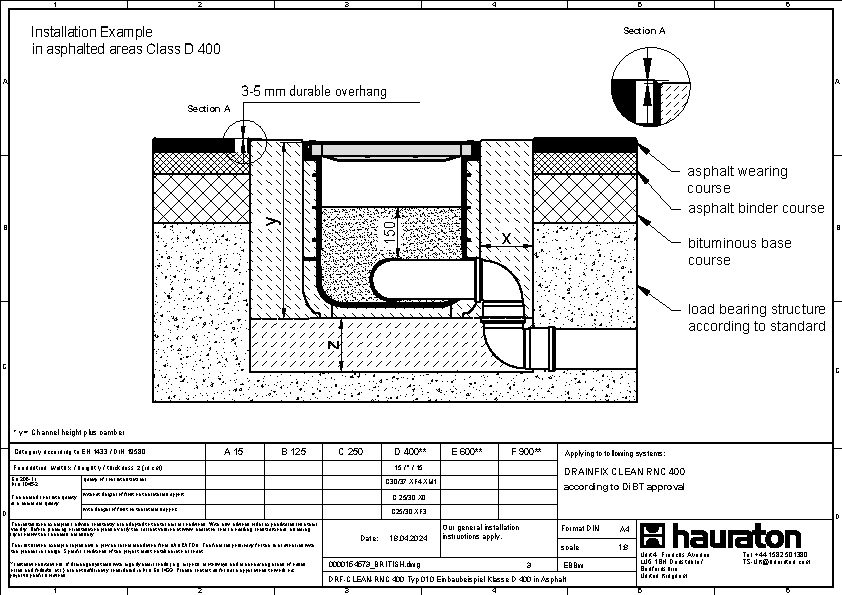

Asphalt class D 400,

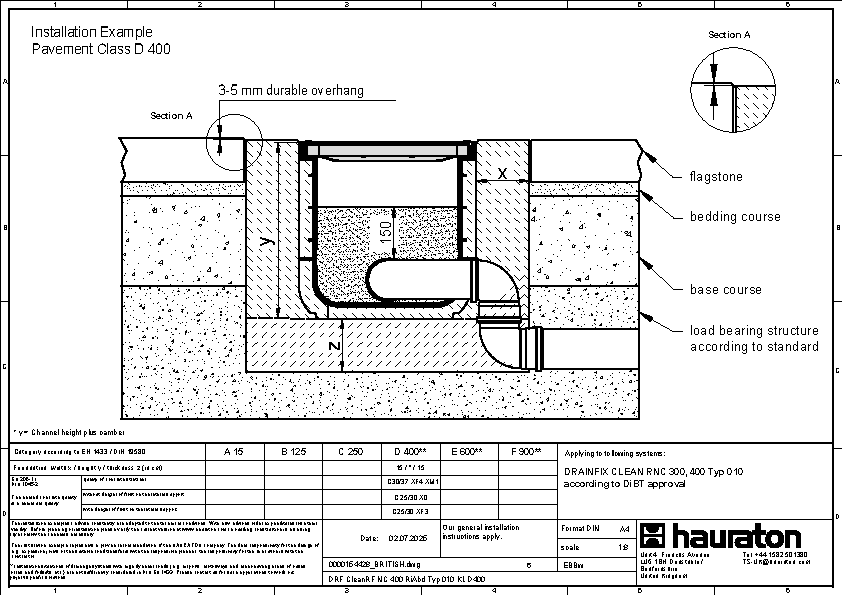

Pavement class D 400,

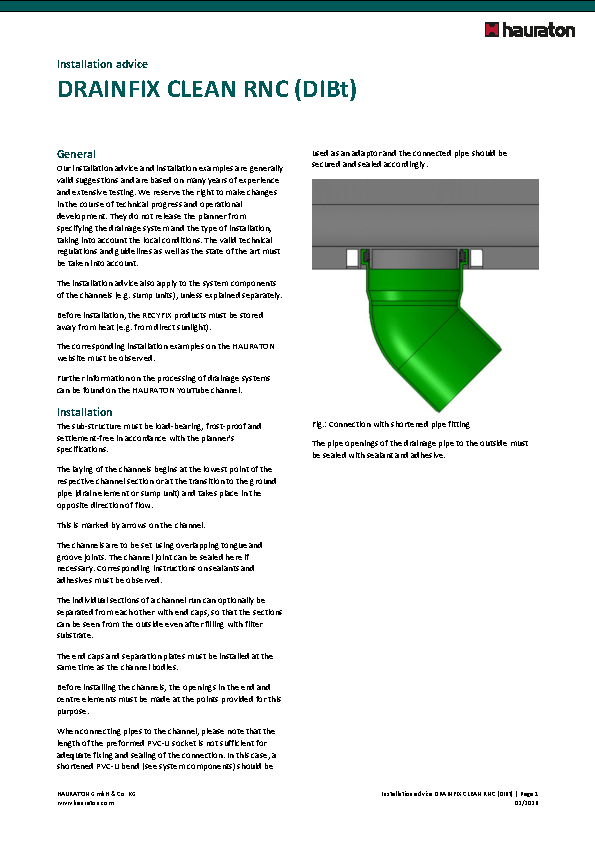

Installation instructions
