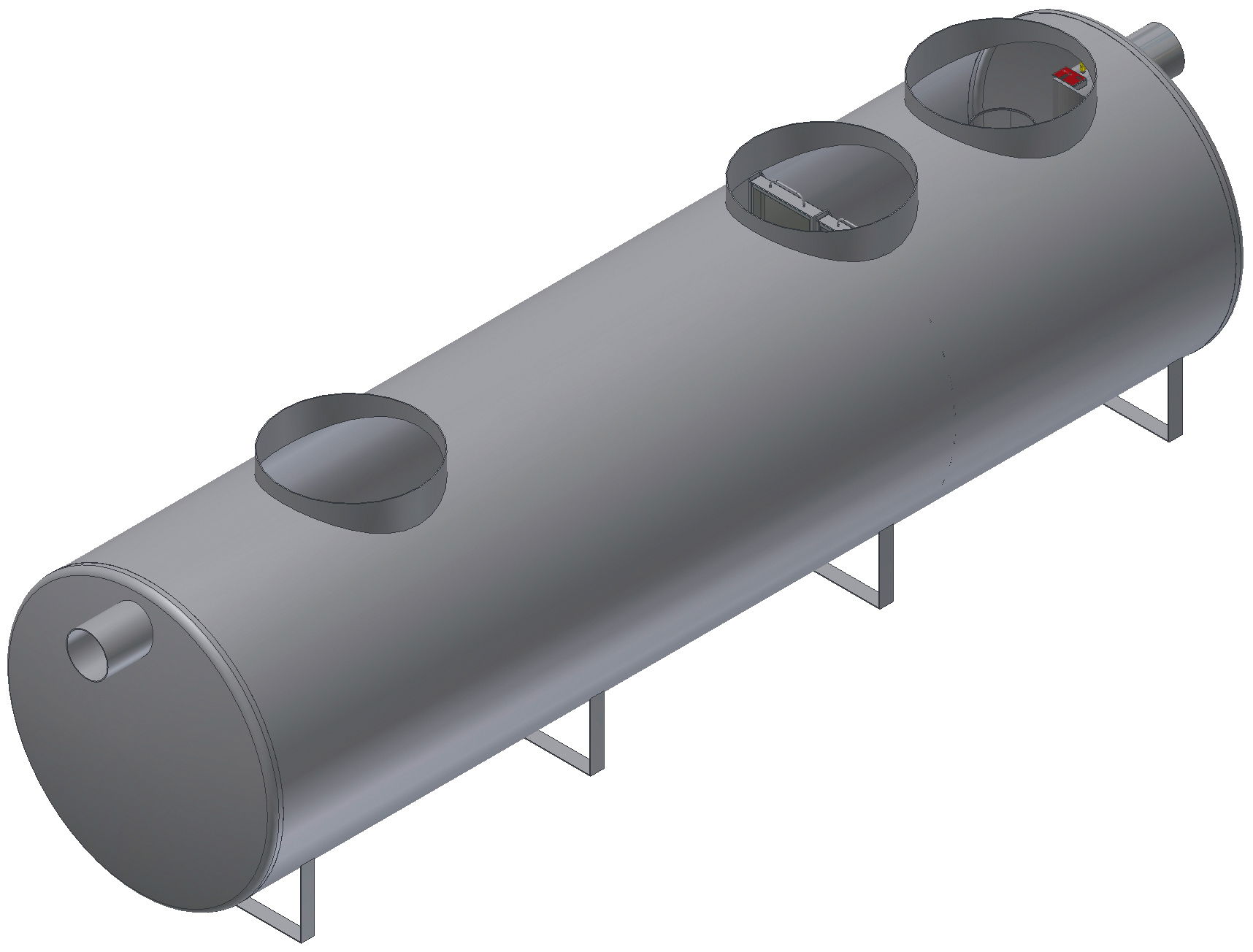

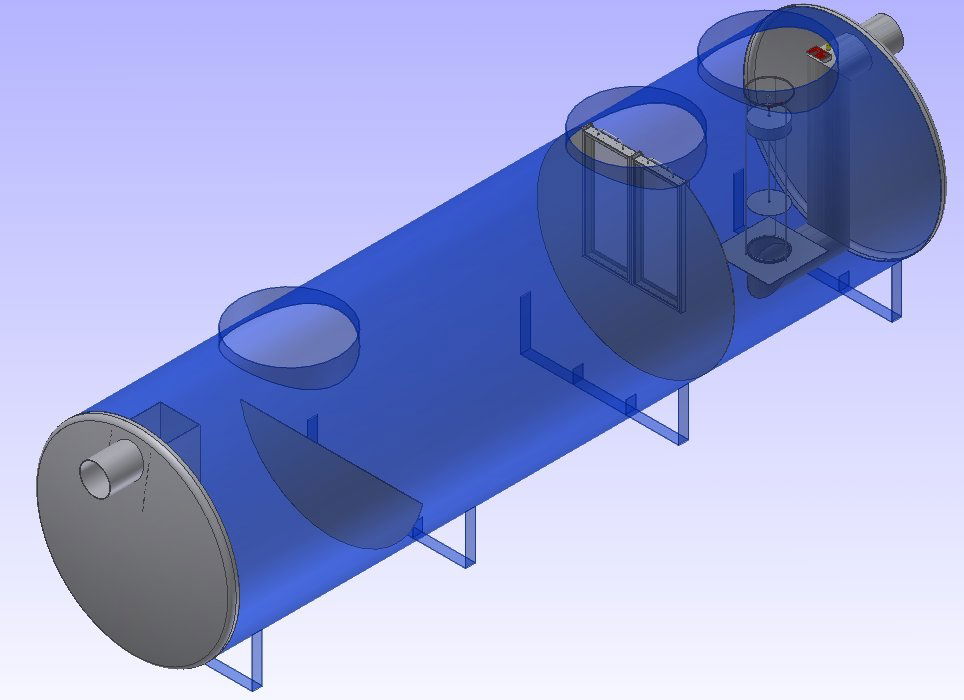

Product image
Installation drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
96410
Length
9000 mm
Width
2500 mm
External diameter
2500 mm
Height
2650 mm
Weight
4900.00 kg
Material
AQUAFIX Coalescence material, AQUAFIX Steel
Nominal size
50 l/s
Bypass
without bypass
Flow performance
50.0 l/s
Sludge trap capacity
-
Separator capacity
34770 l
DN in-/outlet
315 mm
HE height inlet
2100 mm
HA height outlet
2000 mm
DNE Manhole 1
1000 mm
Sales text
DRAINFIX rainwater treatment plant, type 50, ATV
Product description
DRAINFIX RAINWATER TREATMENT PLANT TYPE 50 DWA , DN 2500 mm for 50 l/s inlet in front of DRAINFIX ditch including filter element and sedimentation space; pipe connection possibility DN/OD 315; length 9000 mm, Shaft height 2650 mm, weight 4900 kg, Item No. 96410
Packaging unit
-
Tender Texts

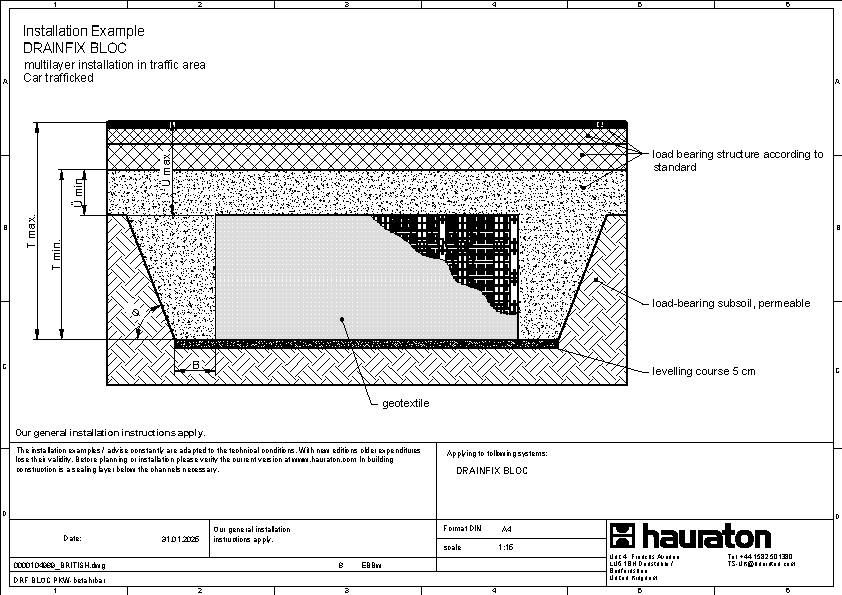

Installation example
multi-layer paving for traffic areas

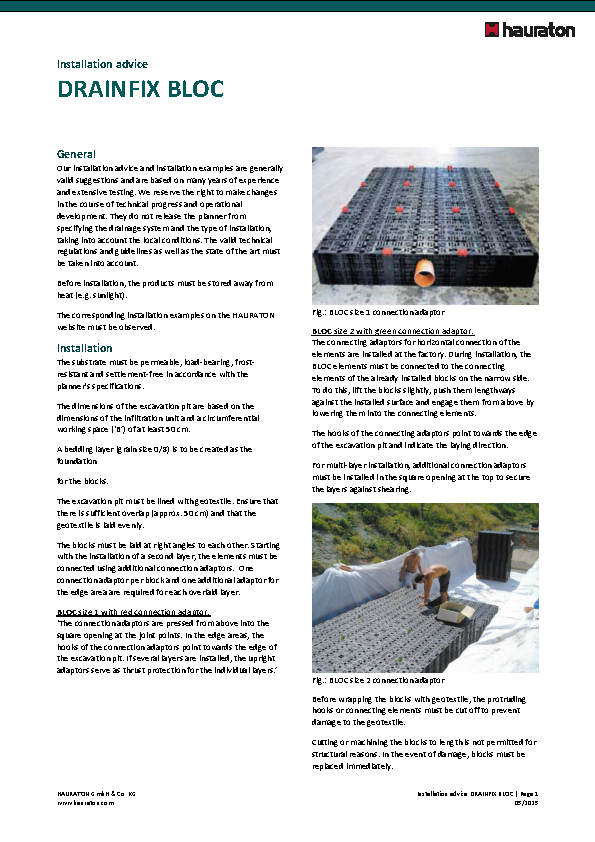

Installation instructions
