Article No. 12054
FASERFIX KS 200
for NW 200, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with integrated PVC-U socket DN/OD 200, 0,5 m
Product image

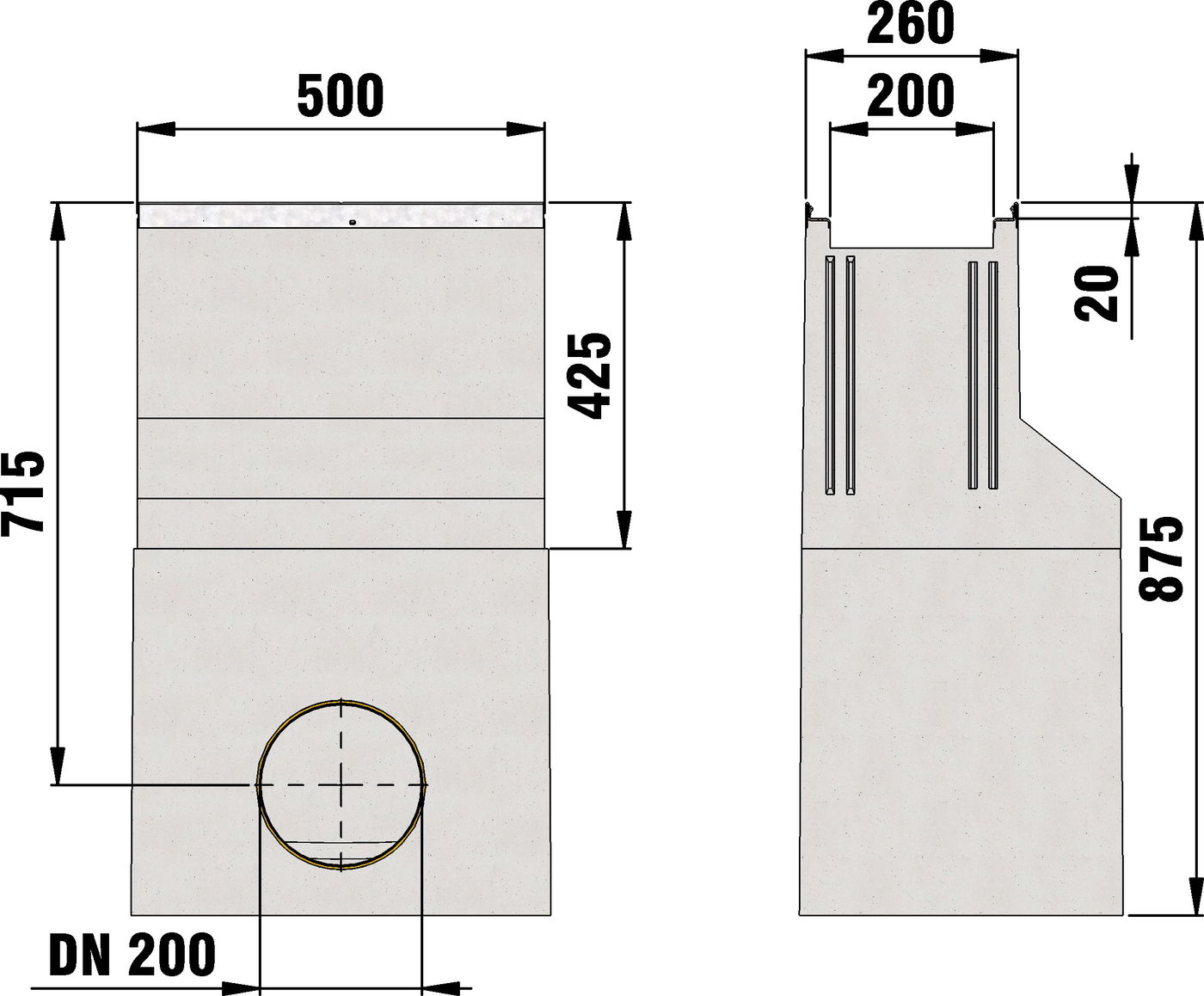

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
12054
Length
500 mm
Width
260 mm
Height
875 mm
Weight
177.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
200
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX KS 200, LxWxH 500x260x875mm, item no. 12054
Packaging unit
6
