Article No. 13010

RECYFIX HICAP F 2000 up to load class D 400

Type 2200, with ductile iron slotted grating SW 6 mm, KTL-coated, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

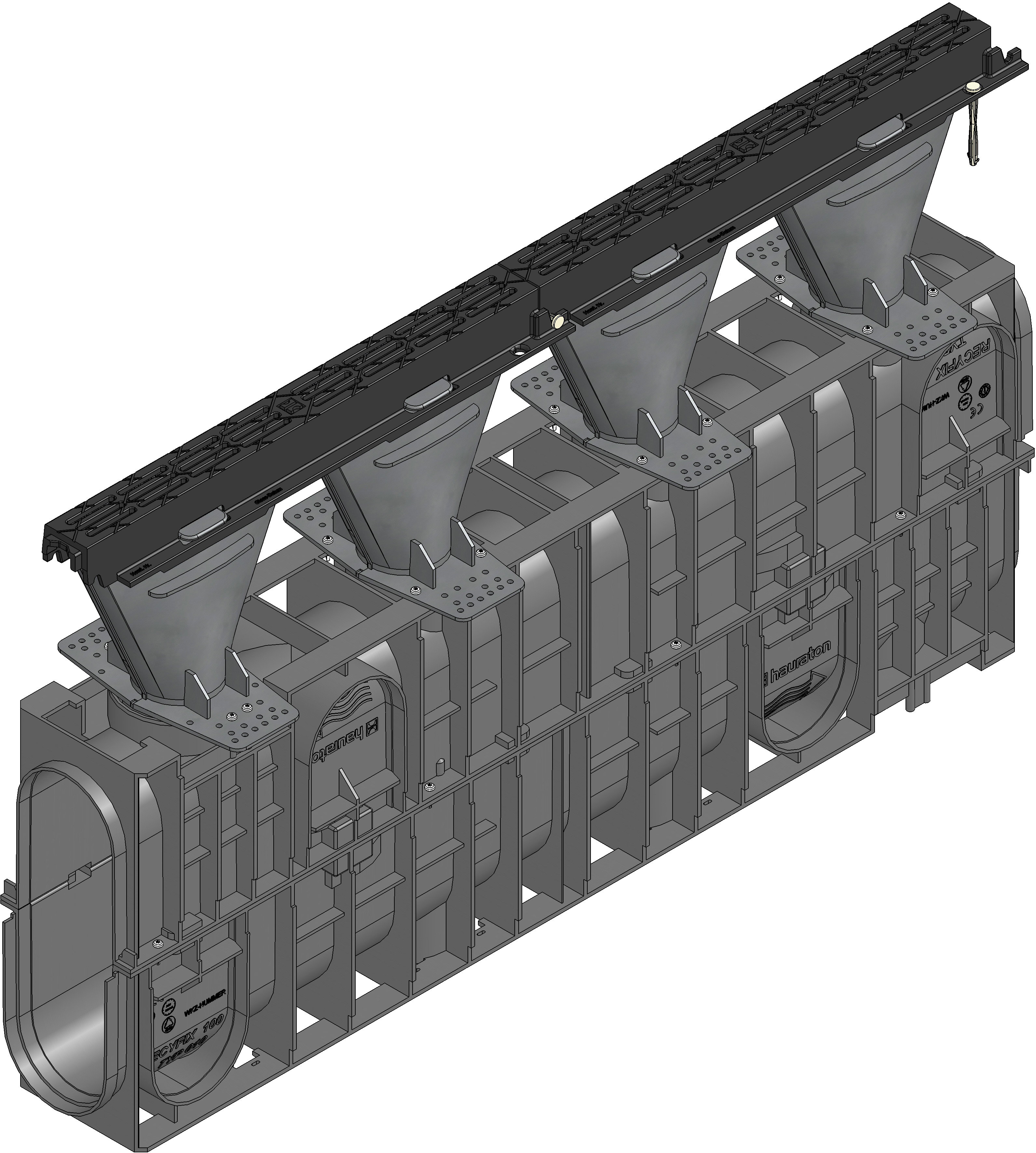

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13010
Length
1000 mm
Width
147 mm
Height
565 mm
Weight
13.20 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, PE-HD, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
129.0 cm²/m
Nominal size
2000
Internal channel cross-section
284 cm²
Fall
-
Height funnel
200 mm
Inlet opening
5 x 51 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 2200 with ductile iron slotted grating SW 6 mm, KTL-coated, cl. D 400, 1 m
Product description
RECYFIX HICAP F 2200 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated ductile iron slotted grating SW 6 mm, KTL-coated, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 13010
Packaging unit
21
