Article No. 13024

RECYFIX HICAP F 2000 up to load class D 400

Type 2200, with stainless steel slotted grating SW 24 mm, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

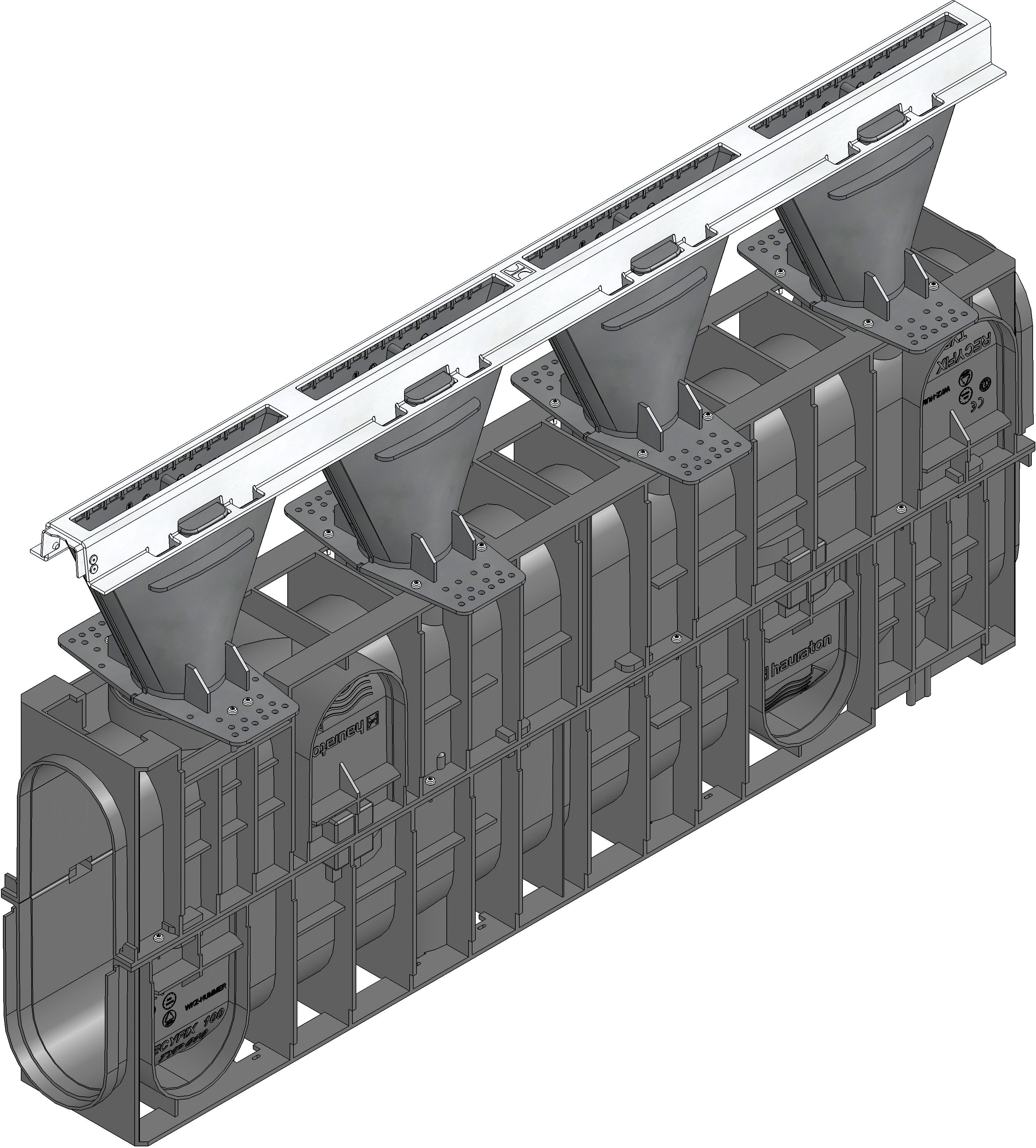

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13024
Length
1000 mm
Width
147 mm
Height
562 mm
Weight
-
Material
ABS, Aluminium, Galvanised steel, PE-HD, Polyamide, recycled polypropylene, Stainless steel 1.4301
Height of angle housing
229 mm
Intake cross-section
211.0 cm²/m
Nominal size
2000
Internal channel cross-section
284 cm²
Fall
-
Height funnel
200 mm
Channel material
recycled polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 2200 with stainless steel slotted grating SW 24 mm, cl. D 400, 1 m
Product description
RECYFIX HICAP F 2200 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated slotted grating SW 24 mm, made of stainless steel CNS 1.4301, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 13024
Packaging unit
-
