Article No. 13224

RECYFIX HICAP F 3000 up to load class D 400

Type 3200, with stainless steel slotted grating SW 24 mm, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

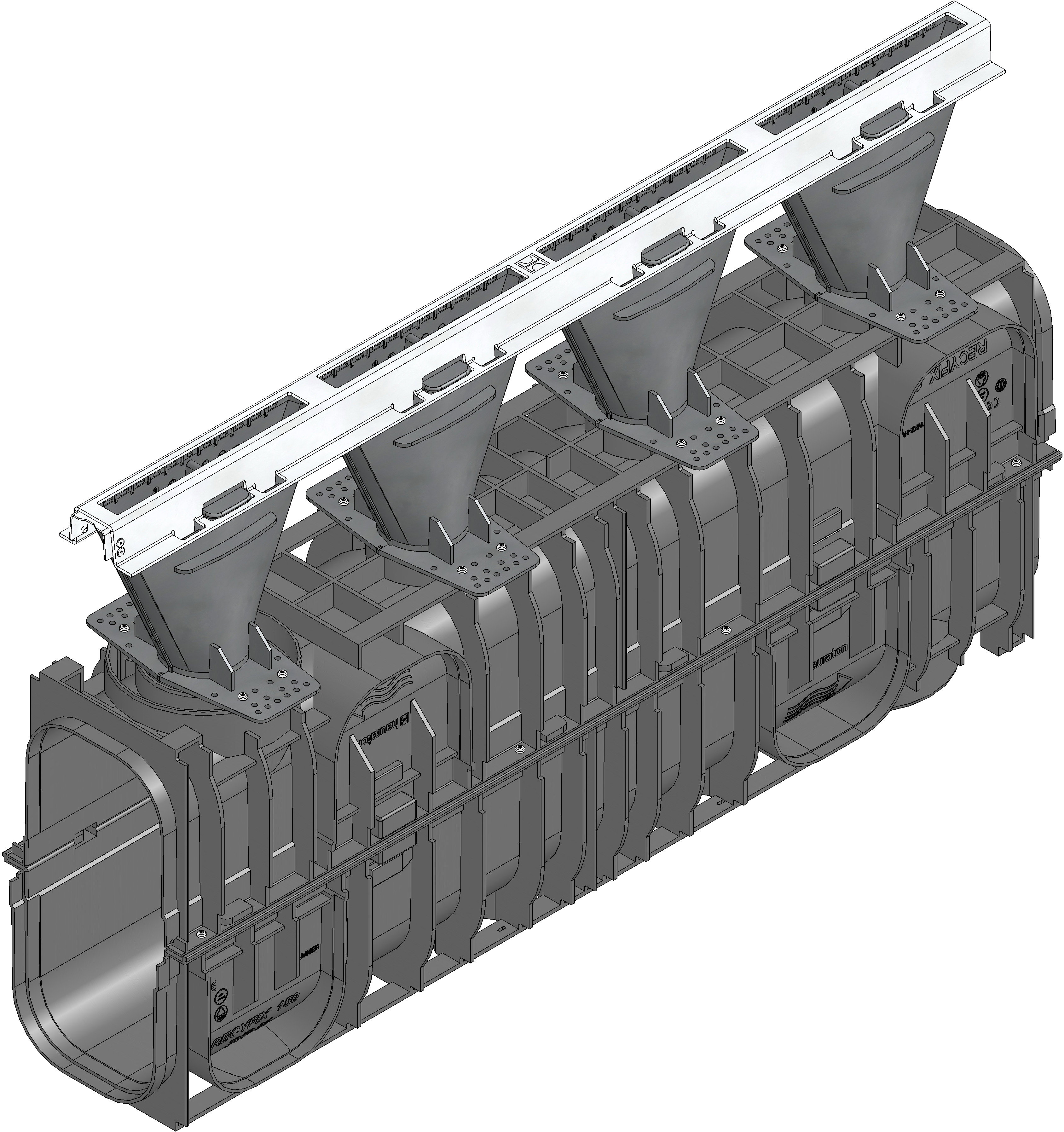

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13224
Length
1000 mm
Width
210 mm
Height
576 mm
Weight
10.23 kg
Material
ABS, Aluminium, Galvanised steel, PE-HD, Polyamide, recycled, modified Polypropylene, Stainless steel 1.4301
Height of angle housing
228 mm
Intake cross-section
211.0 cm²/m
Nominal size
3000
Internal channel cross-section
460 cm²
Fall
-
Height funnel
200 mm
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 3200 with stainless steel slotted grating SW 24 mm, cl. D 400, 1 m
Product description
RECYFIX HICAP F 3200 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated slotted grating SW 24 mm, made of stainless steel CNS 1.4301, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 13224
