Article No. 13782
RECYFIX HICAP F 8000 up to load class E 600
Access unit, with ductile iron grating, closed, KTL-coated, 1.0 m

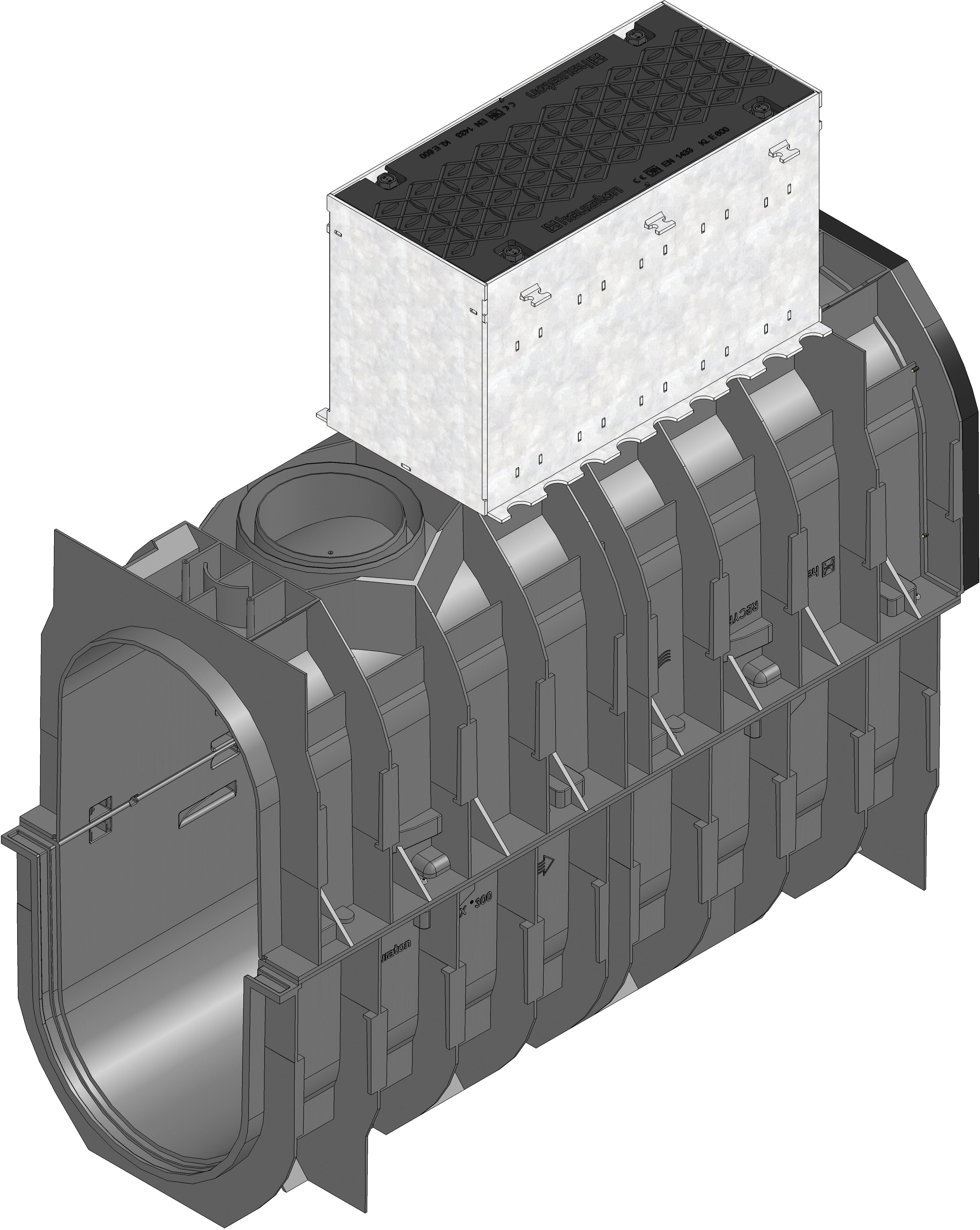

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
13782
Length
1000 mm
Width
420 mm
Height
1050 mm
Weight
56.73 kg
Material
Ductile iron GJS 500-7, Galvanised steel, Stainless steel (V2A), Steel 8.8 zinc-laminated black
Intake cross-section
0.0 cm²/m
Nominal size
8000
Type according to DIN EN 1433
M
Material grating
Ductile iron GJS 500-7
Regulations
DIN 19580
Sales text
Access unit with ductile iron grating, closed, KTL-coated, cl. E 600, RECYFIX HICAP 8300, 1 m
Product description
RECYFIX HICAP 8300 Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene, and top element, height 300 mm, made of galvanised steel, with ductile iron grating closed made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, 4-fold locking, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 13782
Packaging unit
-
Tender Texts
Installation example
Pavement class A 15 - C 250,
Concrete class B 125 - E 600,
Asphalt class A 15 - E 600,
Asphalt class F 900,
Concrete class F 900,
Asphalt class D 400 - E 600, RECYFIX HICAP 8200 Inspection element
Concrete class D 400 - E 600, RECYFIX HICAP 8200 Inspection element
Asphalt class F 900, RECYFIX HICAP 8200 Inspection element
Asphalt class F 900, RECYFIX HICAP 8300 Inspection element
Concrete class F 900, RECYFIX HICAP 8200 Inspection element
Concrete class F 900, RECYFIX HICAP 8300 Inspection element
