Article No. 12146
RECYFIX NC X 100, class F 900
Type 01 with ductile iron grating SW 100/6 mm, black, 8-fold bolting, 1.0 m

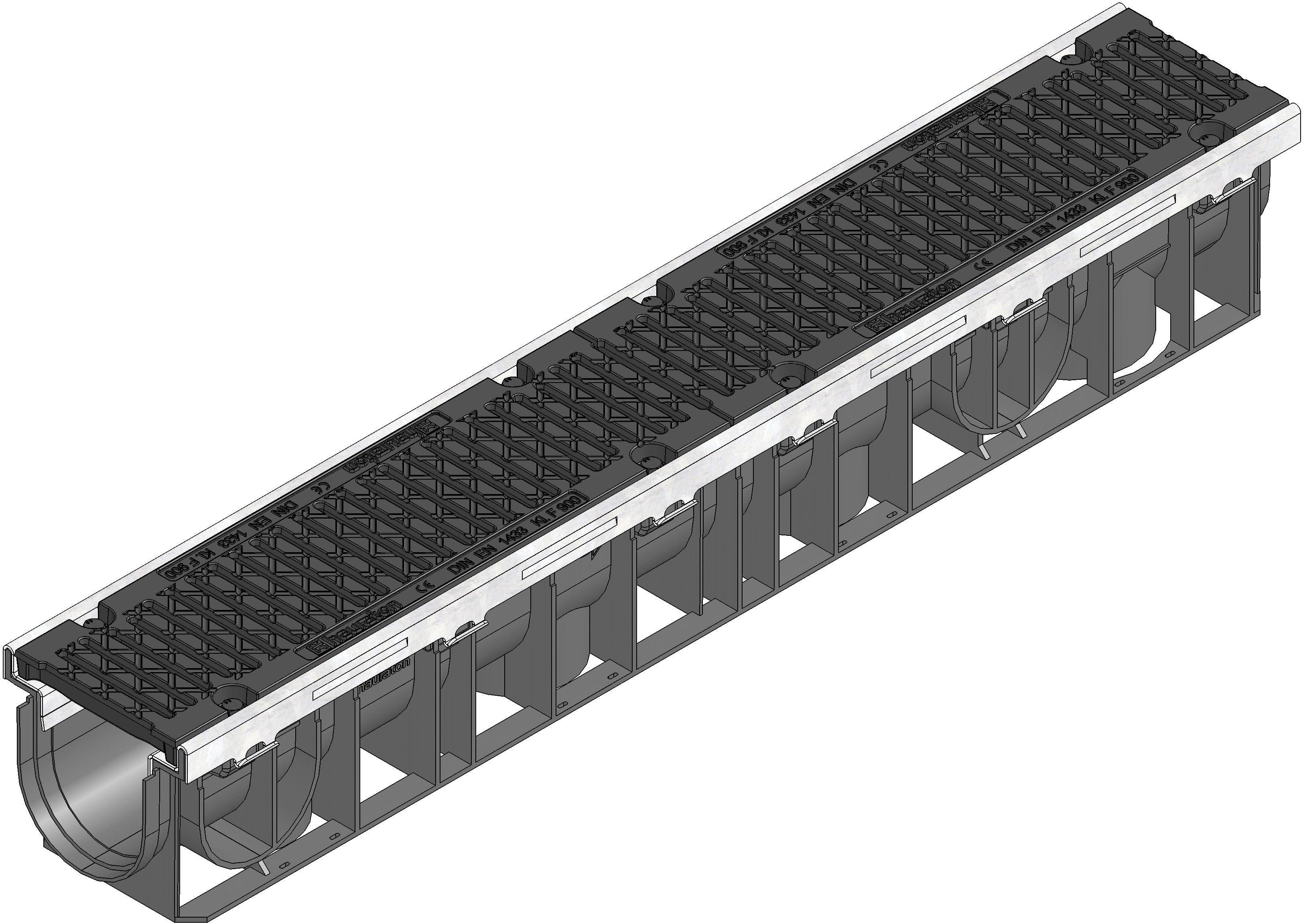

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12146
Length
1000 mm
Width
165 mm
Height
152 mm
Inlay depth
21 mm
Weight
16.31 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
302.0 cm²/m
Nominal size
100
Internal channel cross-section
94 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC X 100 Channel type 01 with edge frames made of galvanised steel and ductile iron grating SW 100/6 mm, black, cl. F 900, 8 -fold bolting, 1 m
Product description
RECYFIX NC X 100 type 01 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN /OD 110, with ductile iron grating SW 100/6 mm, of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 8-fold bolting, load class A 15 - F 900 according to EN 1433, LxWxH 1000x165x152 mm, item no. 12146
Packaging unit
36
Tender Texts
Installation instructions
Installation example
Asphalt class F 900,
Concrete class F 900,
