Article No. 12229
RECYFIX NC X 150, class F 900
Type 01 with ductile iron grating 2x SW 67/10 mm, black, 4-fold bolting, 0.5 m

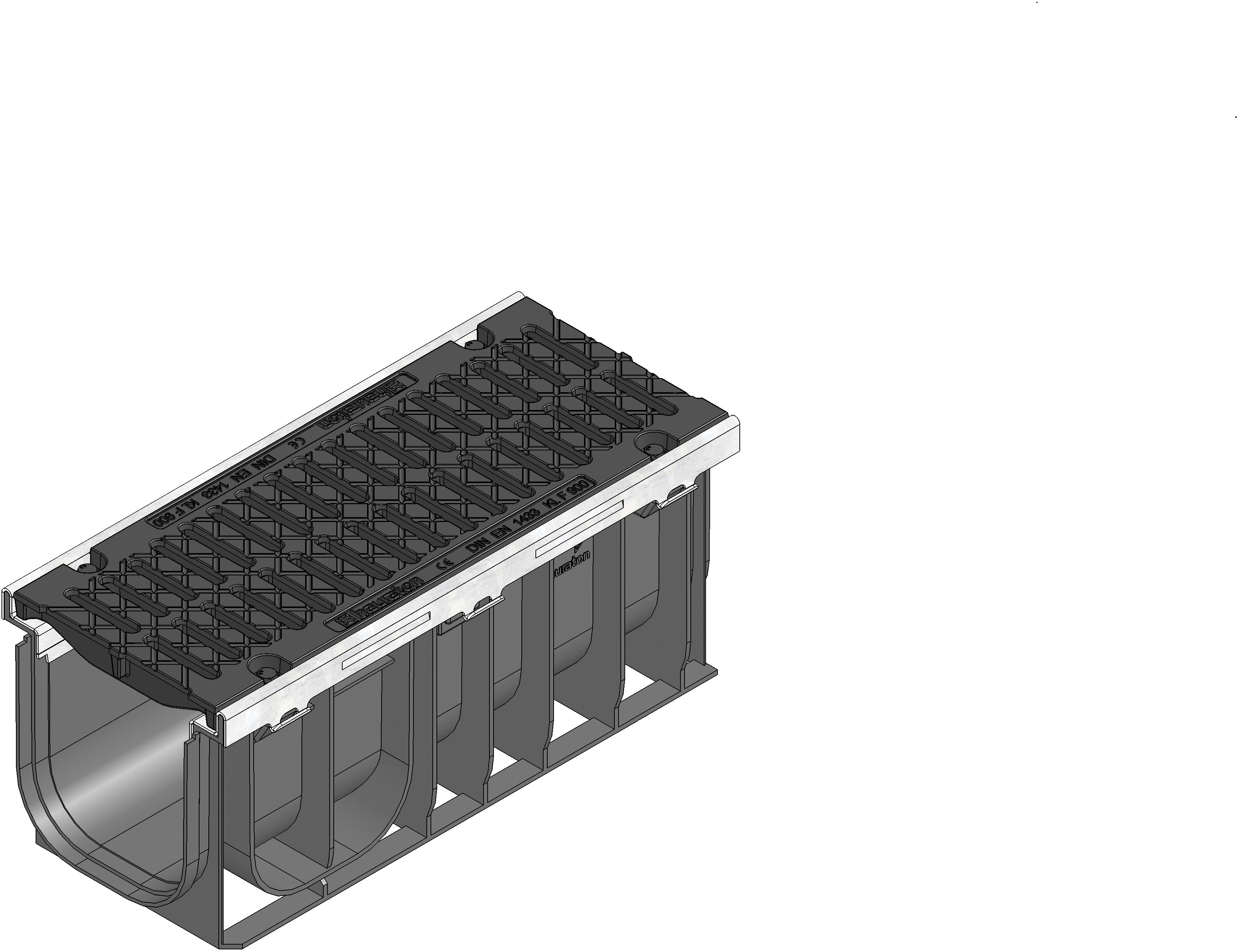

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12229
Length
500 mm
Width
217 mm
Height
212 mm
Inlay depth
21 mm
Weight
11.60 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
449.0 cm²/m
Nominal size
150
Internal channel cross-section
-
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC X 150 Channel type 01 with edge frames made of galvanised steel and ductile iron grating 2x SW 67/10 mm, black, cl. F 900 , 4-fold bolting, 0.5 m
Product description
RECYFIX NC X 150 type 01 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with ductile iron grating 2x SW 67/10 mm, of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 4-fold bolting, load class A 15 - F 900 according to EN 1433, LxWxH 500x165x152 mm, item no. 12229
Packaging unit
40
Tender Texts

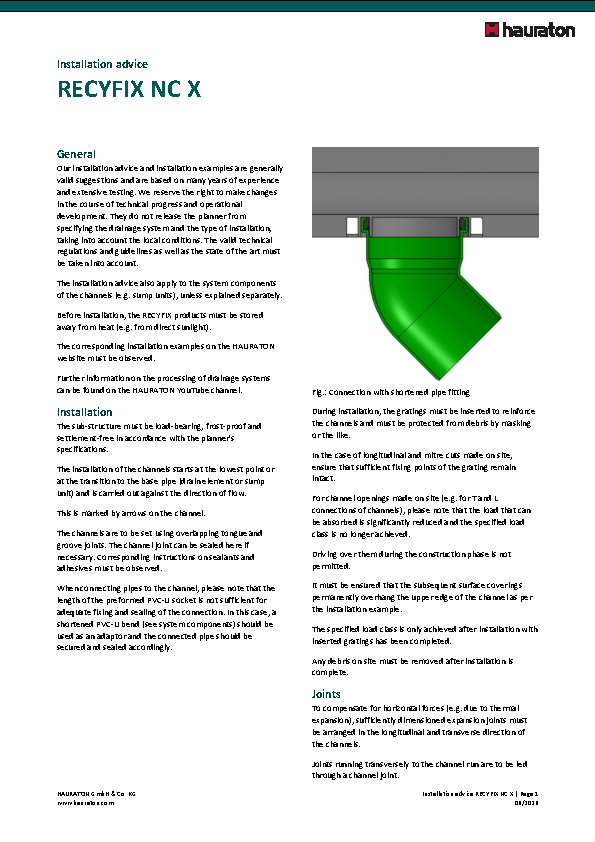

Installation instructions
Installation example

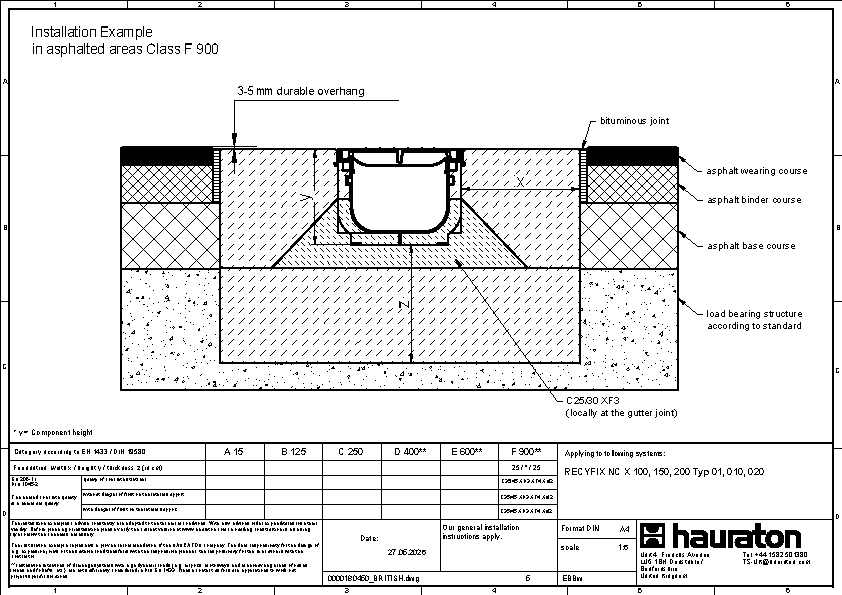

Asphalt class F 900,

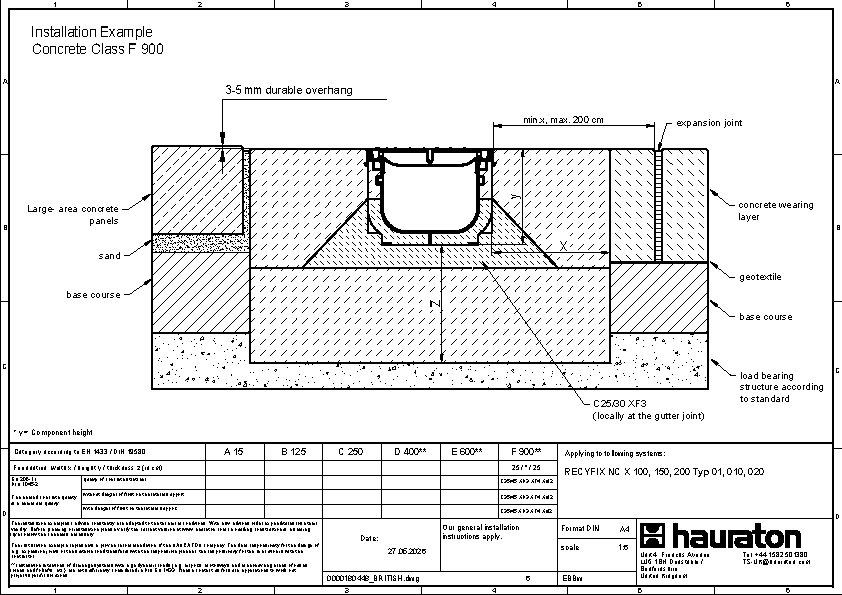

Concrete class F 900,
