Article No. 41227
RECYFIX STANDARD 100, class B 125
Type 01 with mesh grating MS 30/10 mm, galvanised, locked, 0,5 m

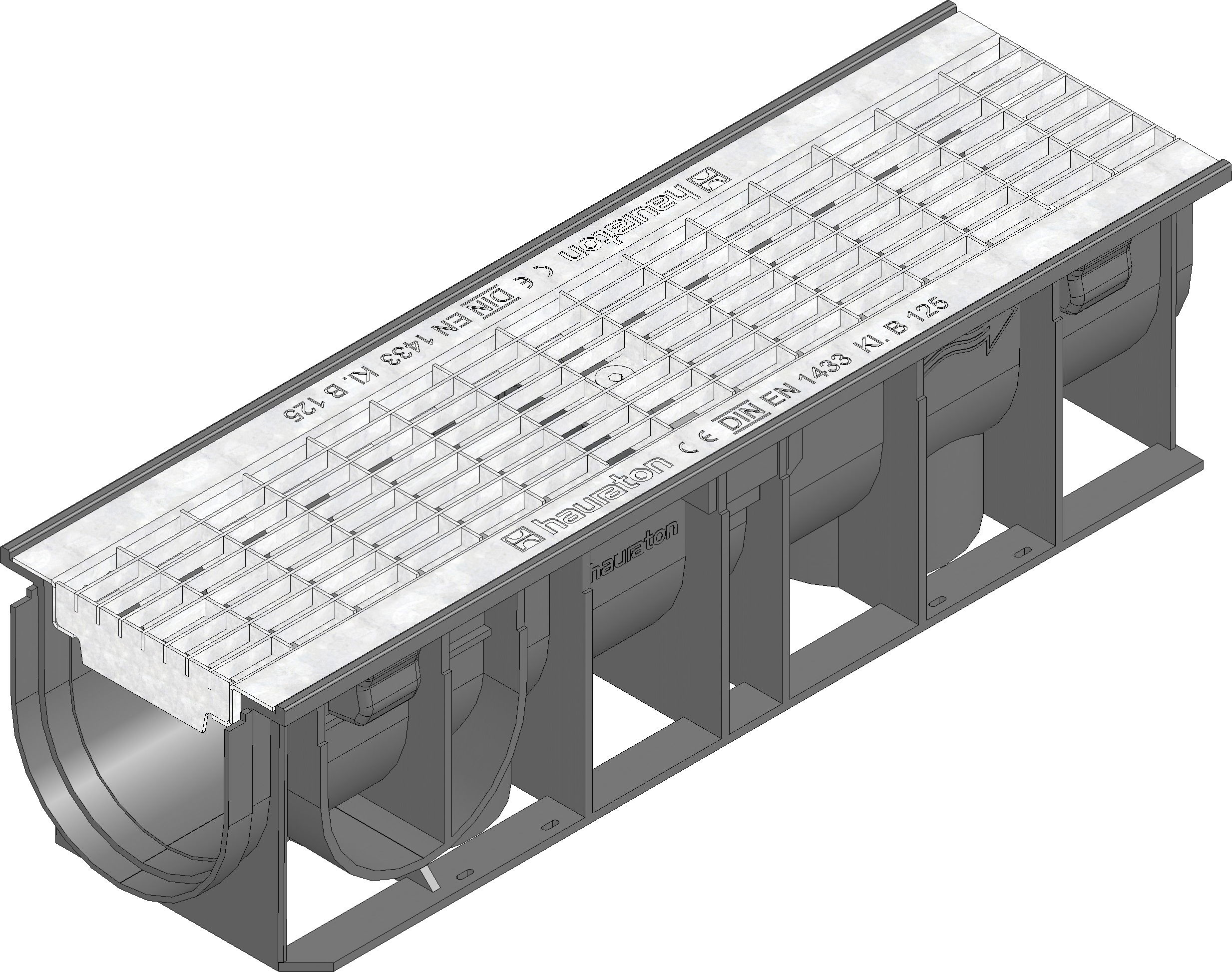

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
41227
Length
500 mm
Width
150 mm
Height
134 mm
Inlay depth
2 mm
Weight
2.50 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 01 with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, 0.5 m
Product description
RECYFIX STANDARD 100 type 01 - Channel body made of recycled polypropylene, with mesh grating MS 30/10 mm, made of galvanized steel, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x150x134 mm, item no. 41227
Packaging unit
98
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
