Article No. 40267
RECYFIX STANDARD 100, trafficable
Type 010 with mesh grating MS 30/10 mm, galvanised, locked, 0,5 m

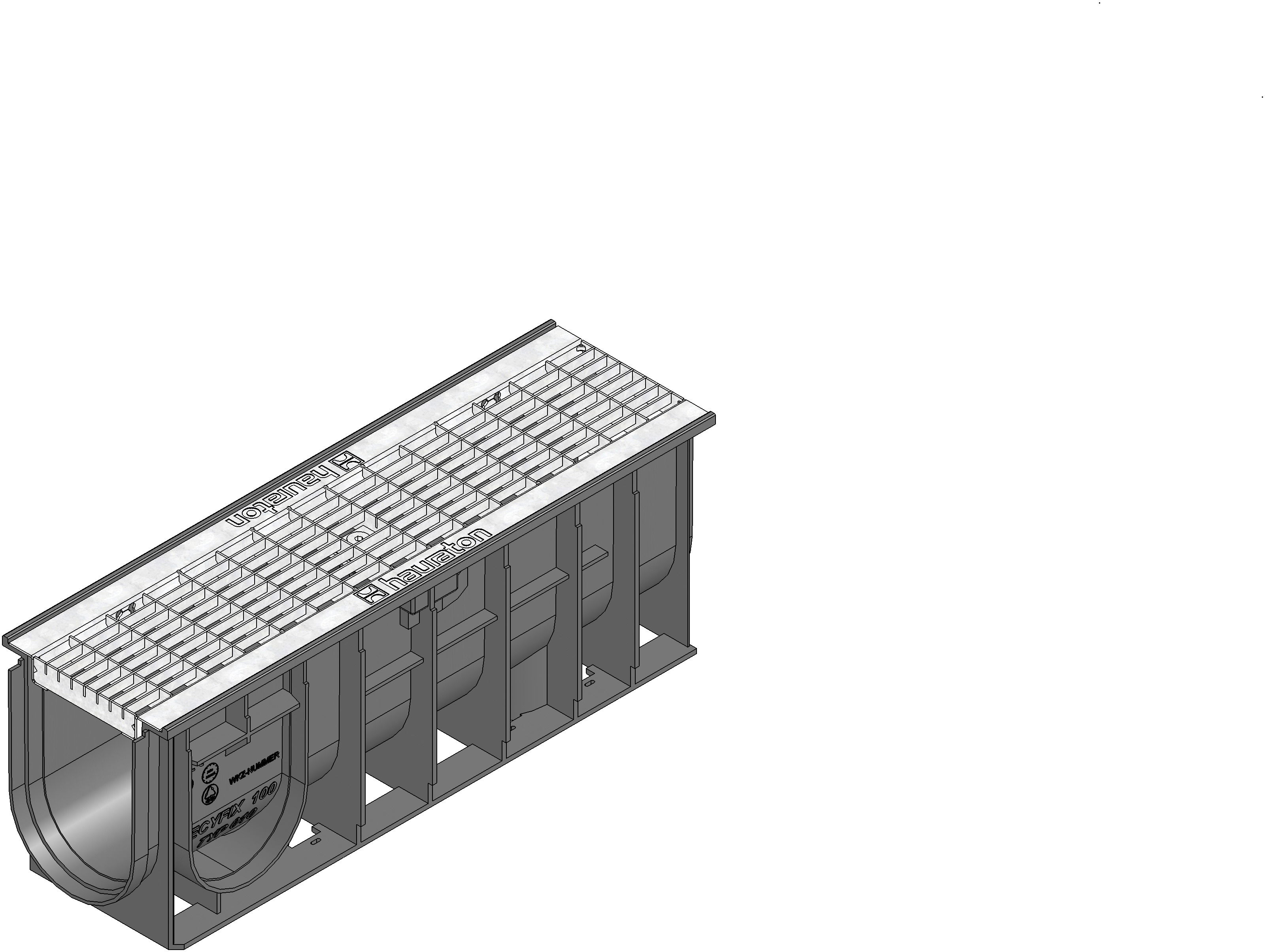

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
40267
Length
500 mm
Width
150 mm
Height
185 mm
Inlay depth
2 mm
Weight
2.74 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
760.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 010 with mesh grating MS 30/10 mm, galvanised, trafficable locked, 0.5 m
Product description
RECYFIX STANDARD 100 type 010 - Channel body made of recycled polypropylene, according to EN 1433, with mesh grating MS 30/10 mm, made of galvanised steel, overlying, trafficable, with locking, LxWxH 500x150x185 mm, item no. 40267
Packaging unit
84
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
