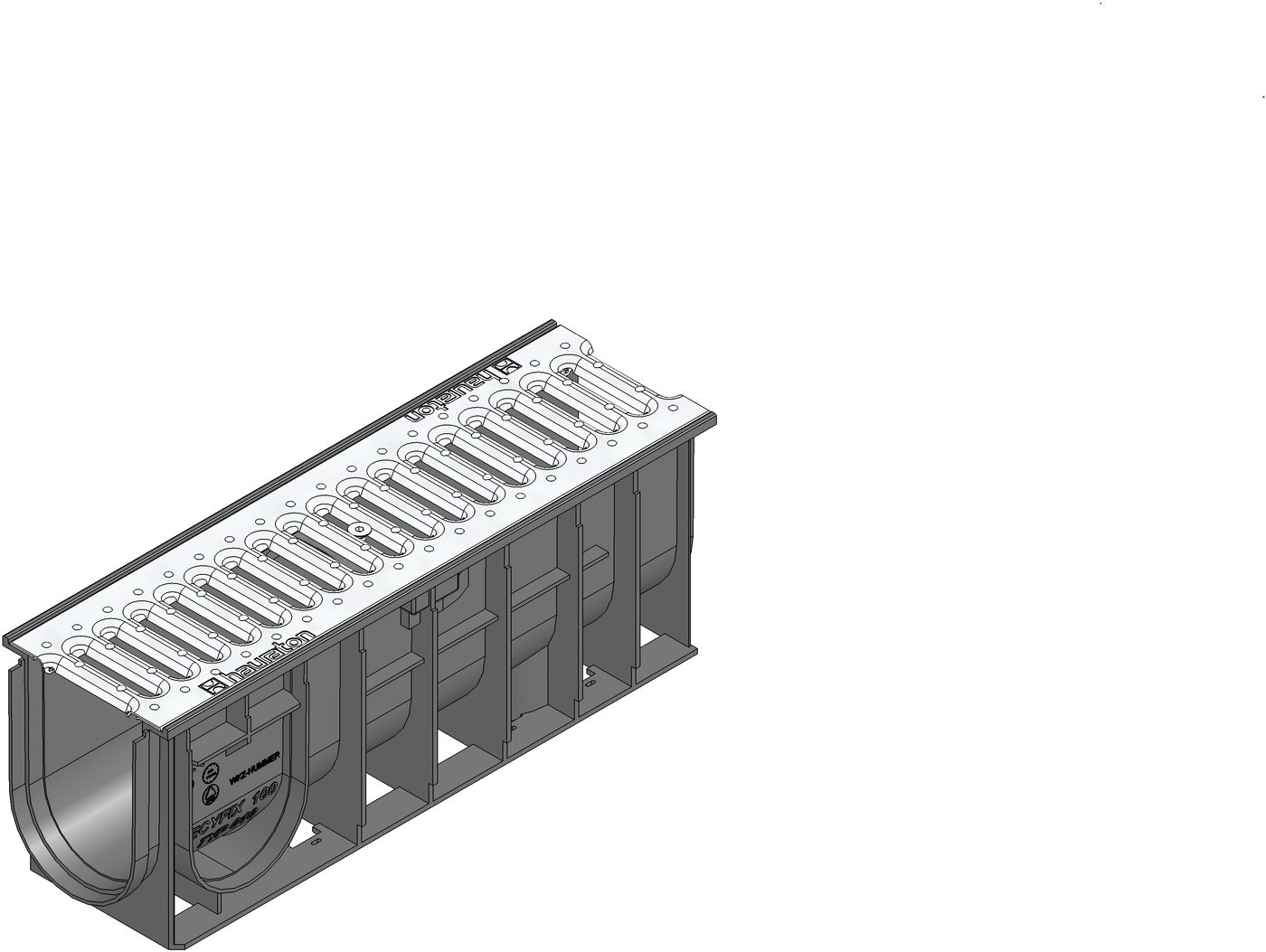

Article No. 41208
RECYFIX STANDARD 100, trafficable
Type 010 with slotted grating SW 75/9 mm, stainless steel, locked, 0,5 m

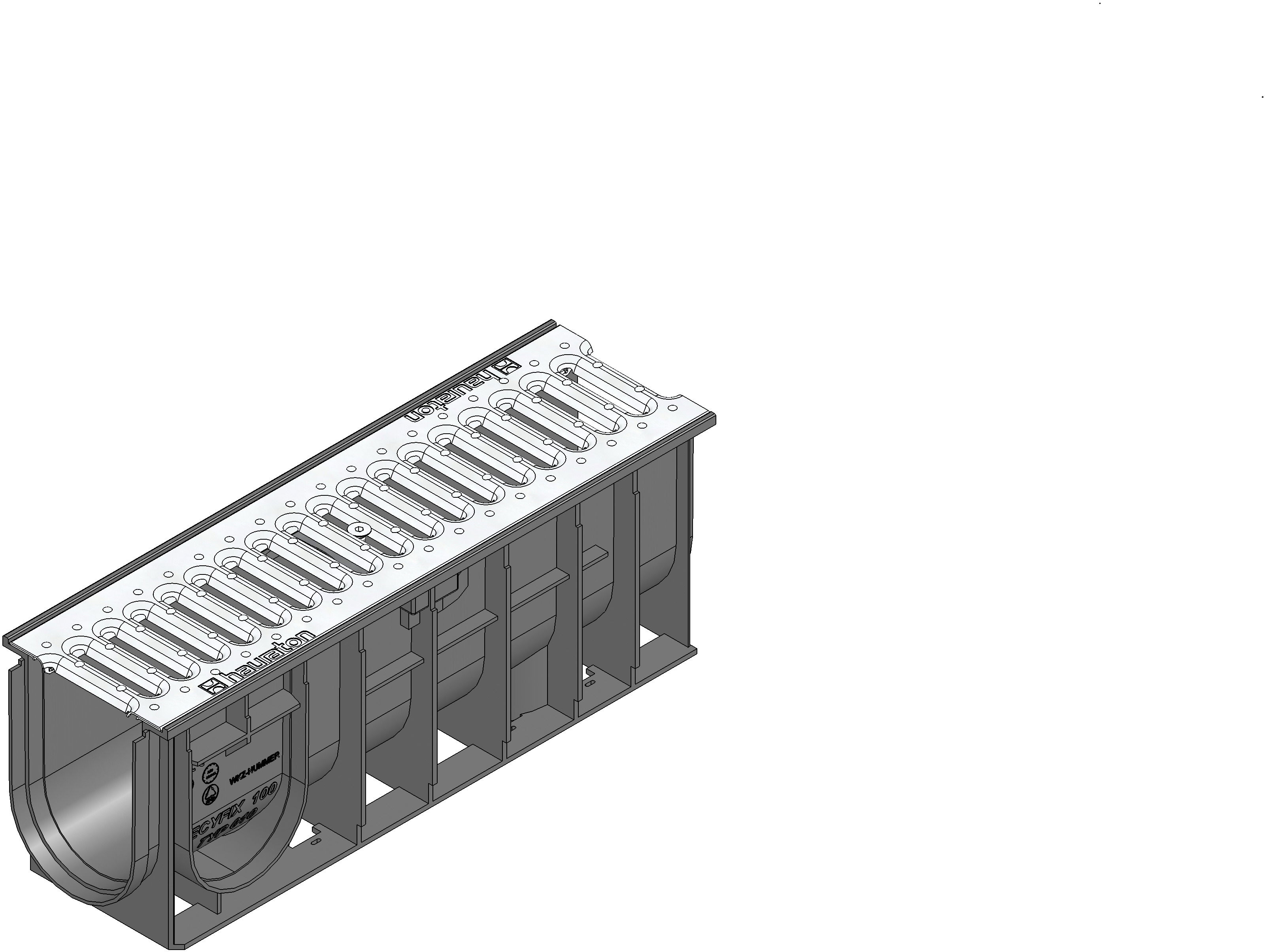

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
41208
Length
500 mm
Width
150 mm
Height
185 mm
Inlay depth
3 mm
Weight
2.60 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 010 with slotted grating SW 75/9 mm, stainless steel, trafficable, locked, 0.5 m
Product description
RECYFIX STANDARD 100 type 010 - Channel body made of recycled polypropylene, according to EN 1433, with slotted grating SW 75/9 mm, made of stainless steel CNS 1.4301, overlying, with locking, trafficable, LxWxH 500x150x185 mm, item no. 41208
Packaging unit
84
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
