Article No. 40148
RECYFIX STANDARD 150, class B 125
Type 01 with mesh grating MS 30/10 mm, galvanised, locked, 0,5 m

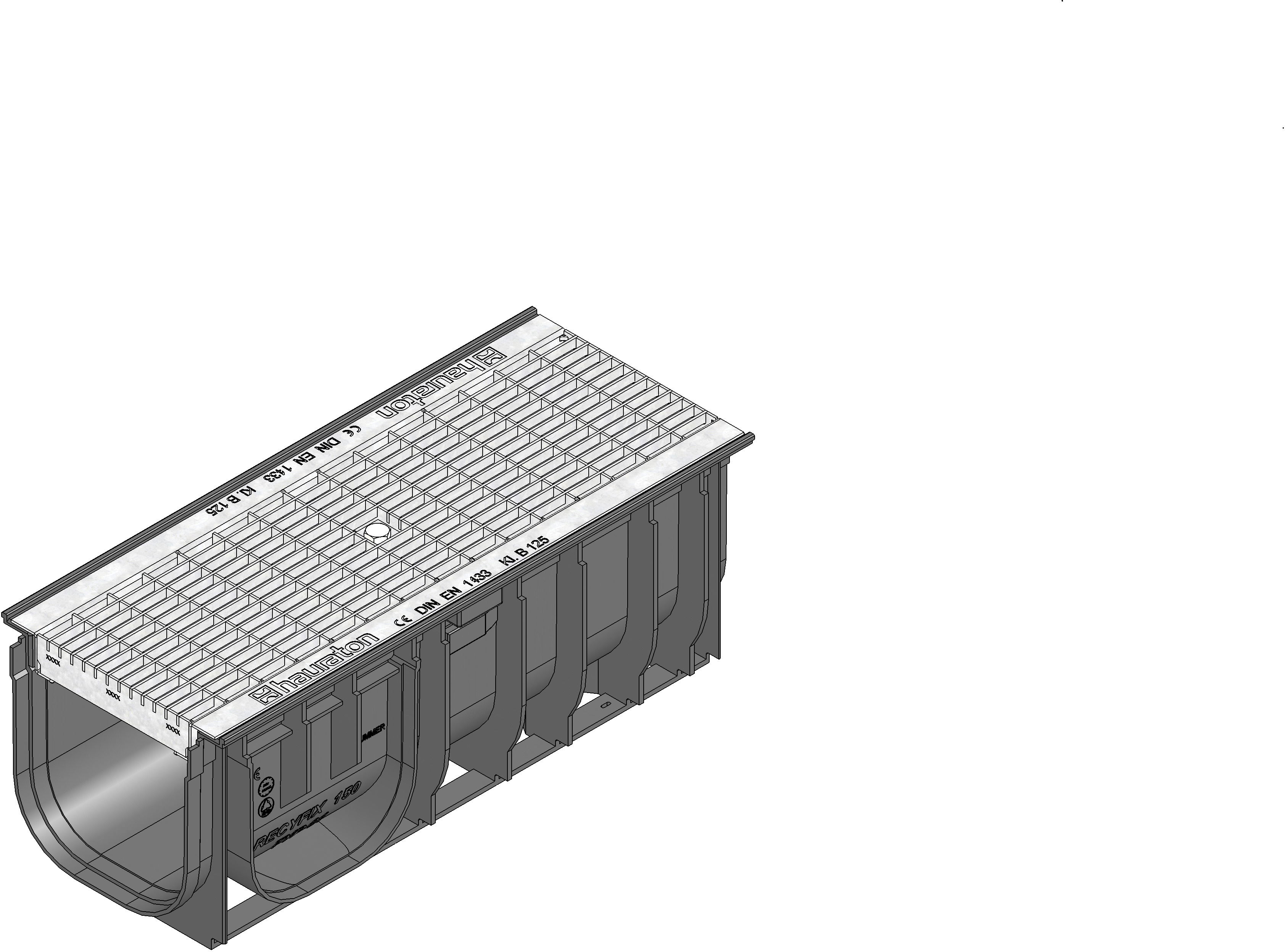

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40148
Length
500 mm
Width
210 mm
Height
192 mm
Inlay depth
32 mm
Weight
4.50 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, reinforced Polyamide
Intake cross-section
1098.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 01 with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, 0.5 m
Product description
RECYFIX STANDARD 150 type 01 - Channel body made of recycled polypropylene, with mesh grating MS 30/10 mm, made of galvanised steel, galvanised, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x210x192 mm, item no. 40148
Packaging unit
50
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
