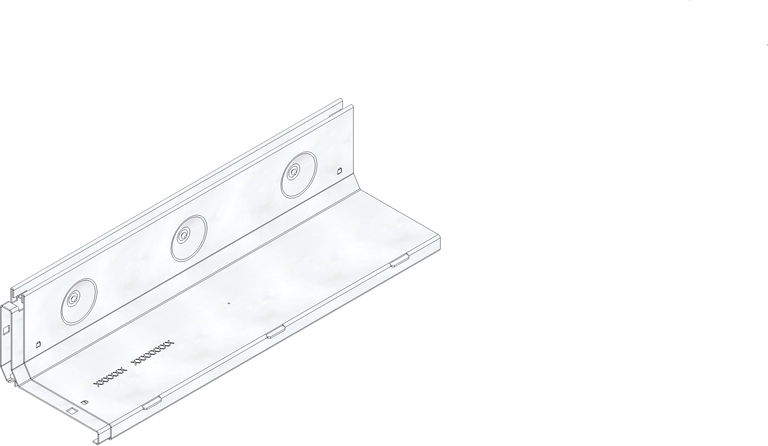

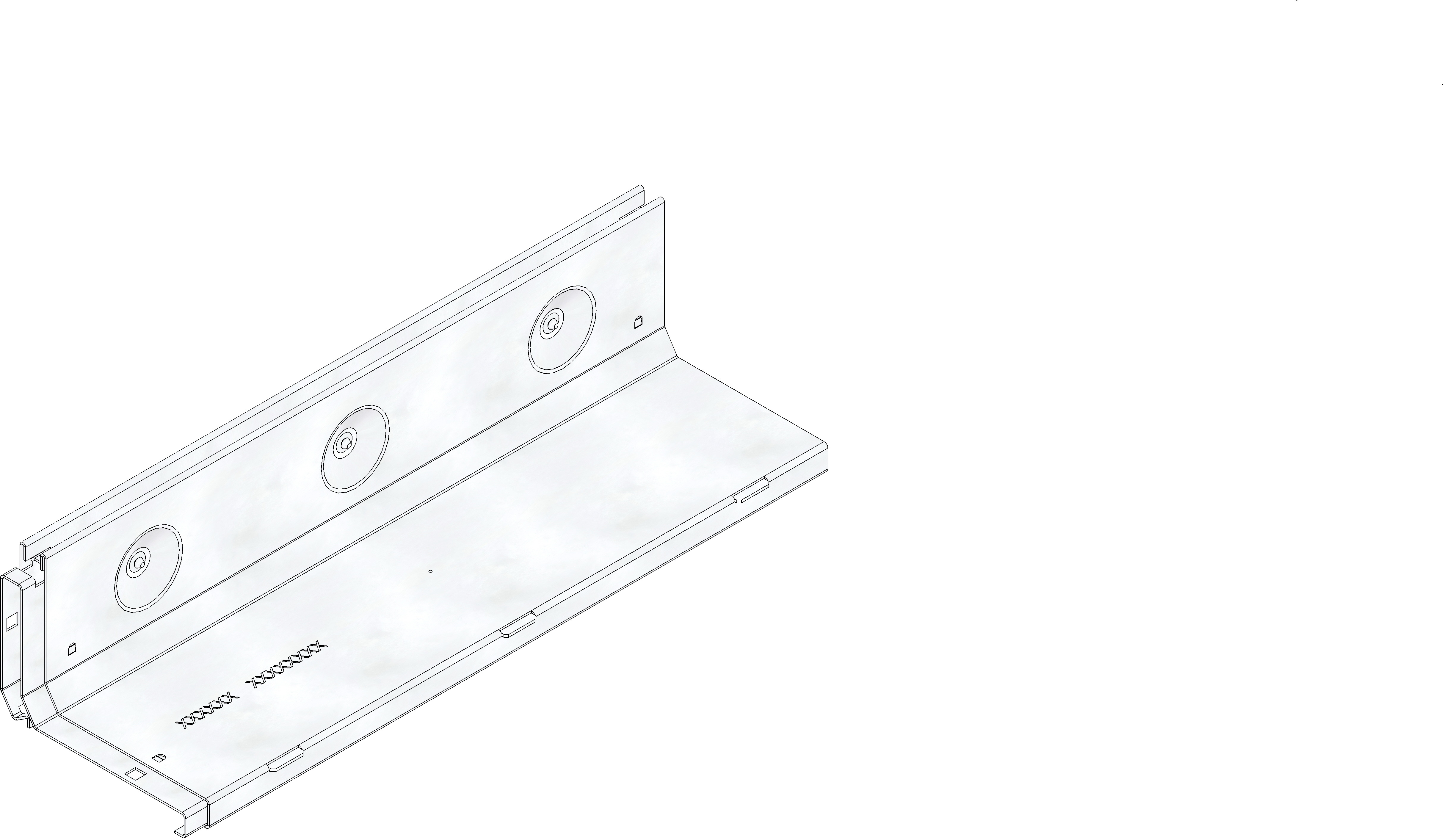

Product image

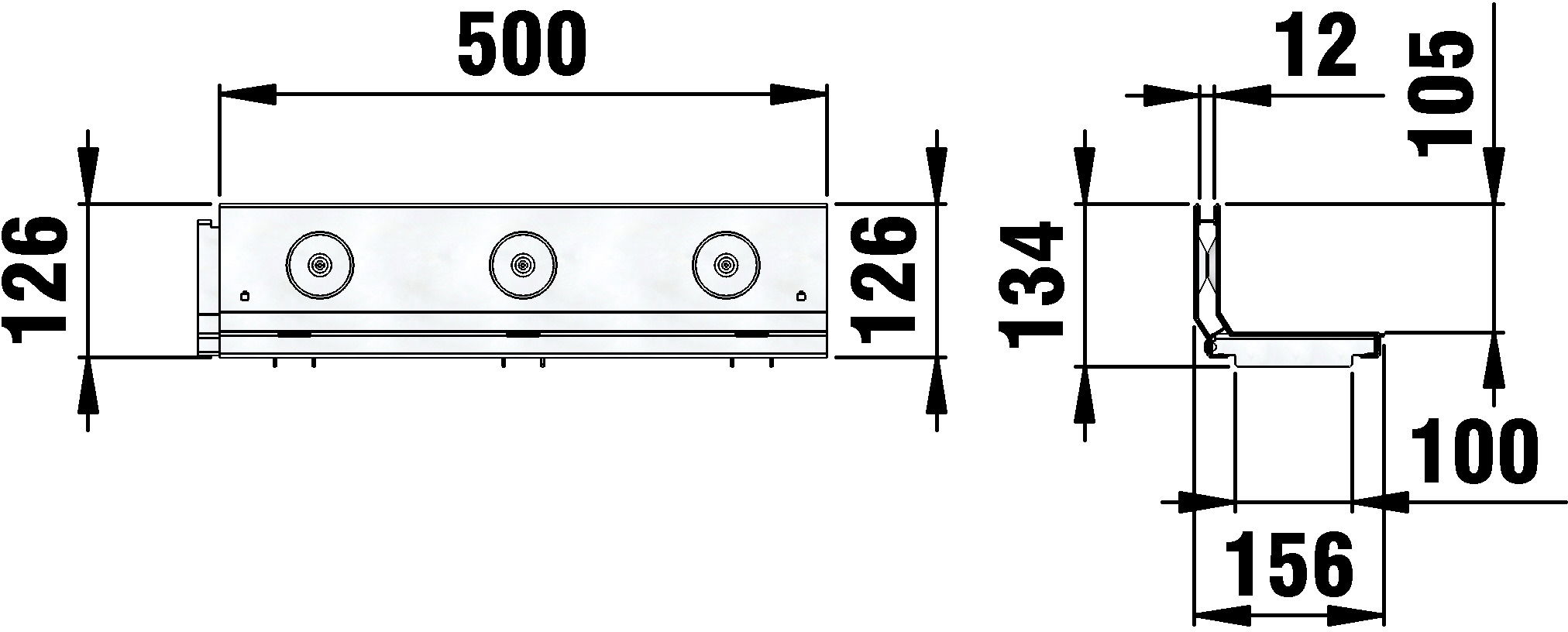

Technical drawing

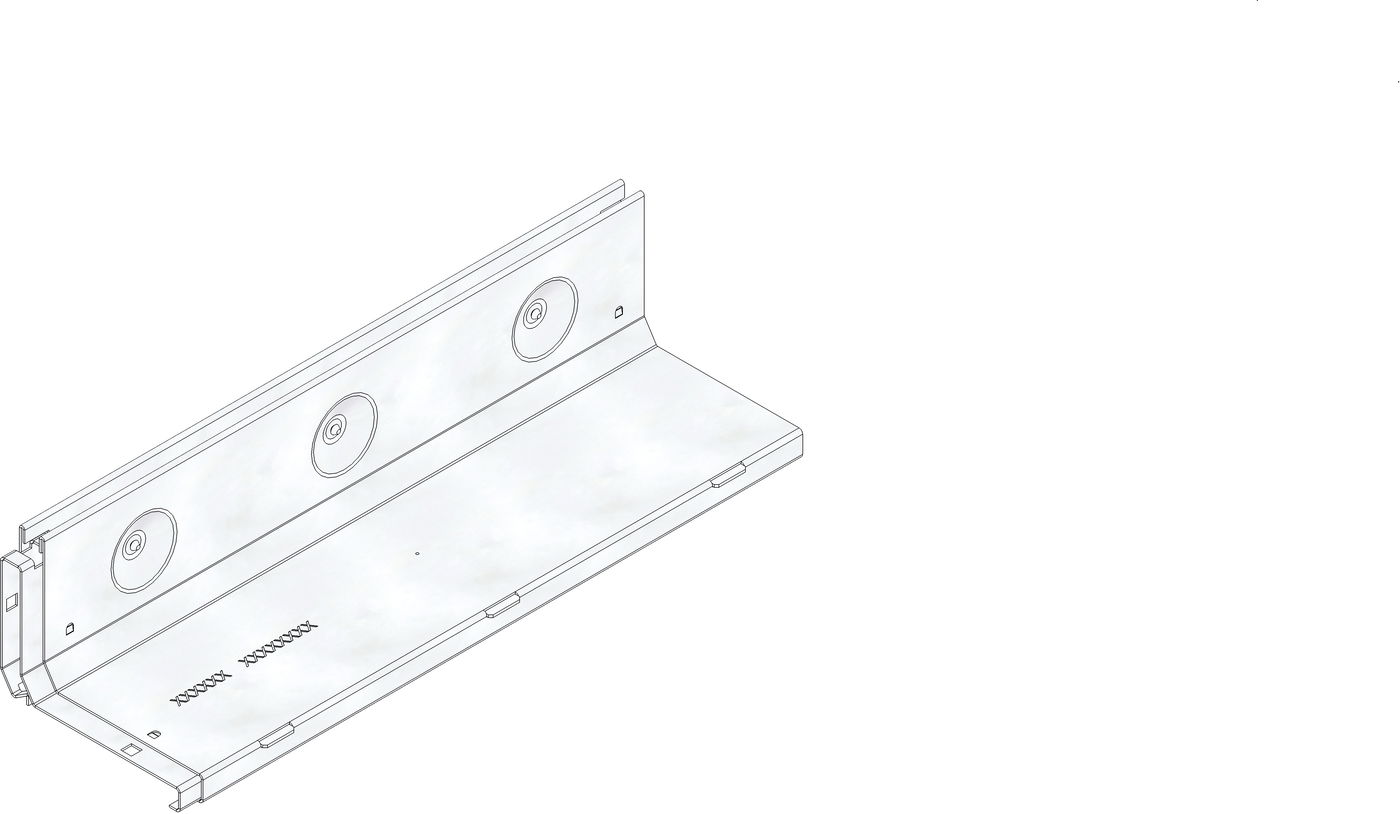

Drawing (CAD)
Drawing
Technical information and metrics
Article No.
32795
Length
500 mm
Width
156 mm
Height
134 mm
Inlay depth
126 mm
Weight
3.16 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
500 x 12 mm
Material grating
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 12 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0,5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, -slotted cover SW 12 mm, neck height 105 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, with integrated, full-surface connection element, loading capacity from A 15 - D 400, length 500 mm, item no. 32795
Packaging unit
160
