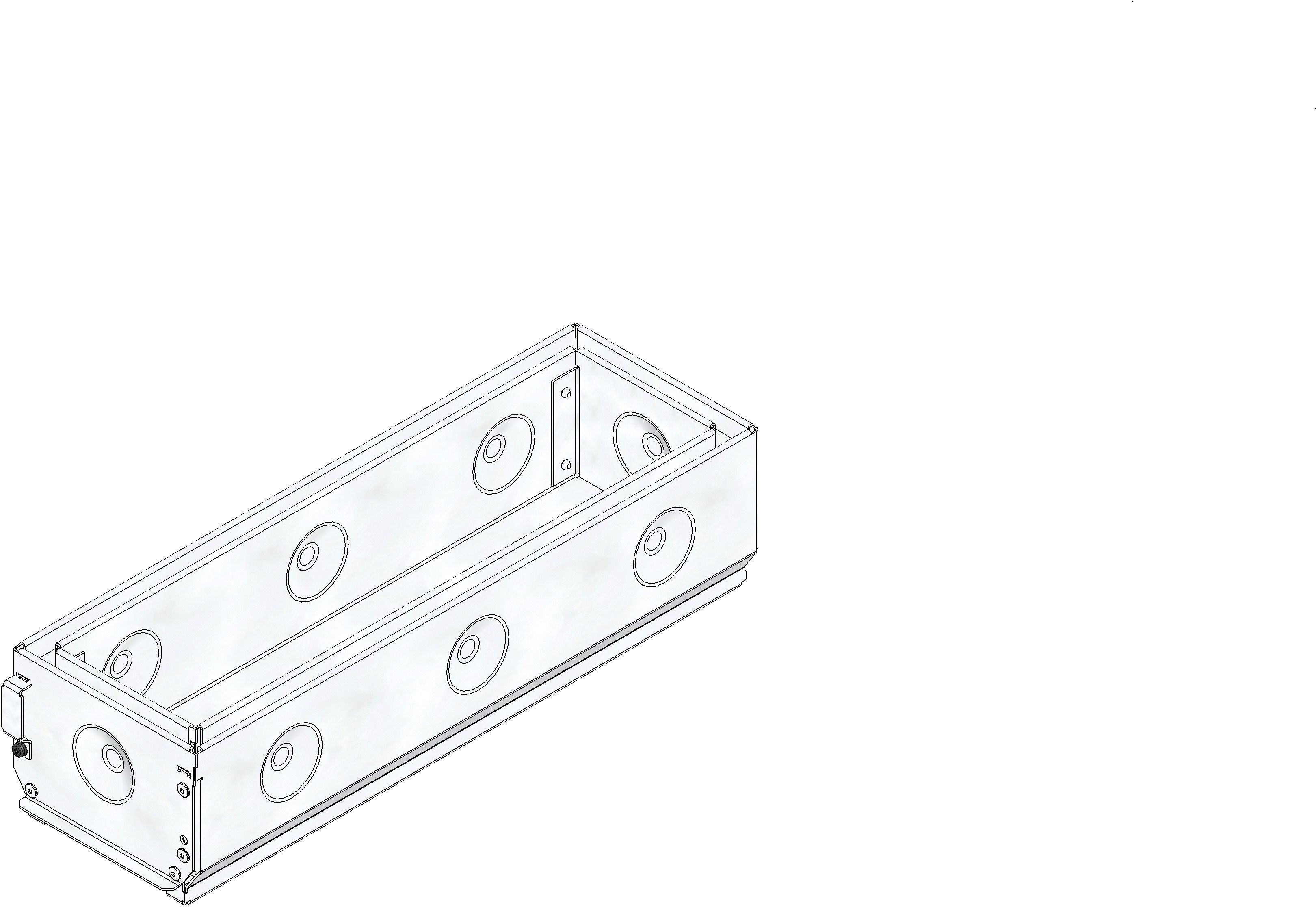

Product image

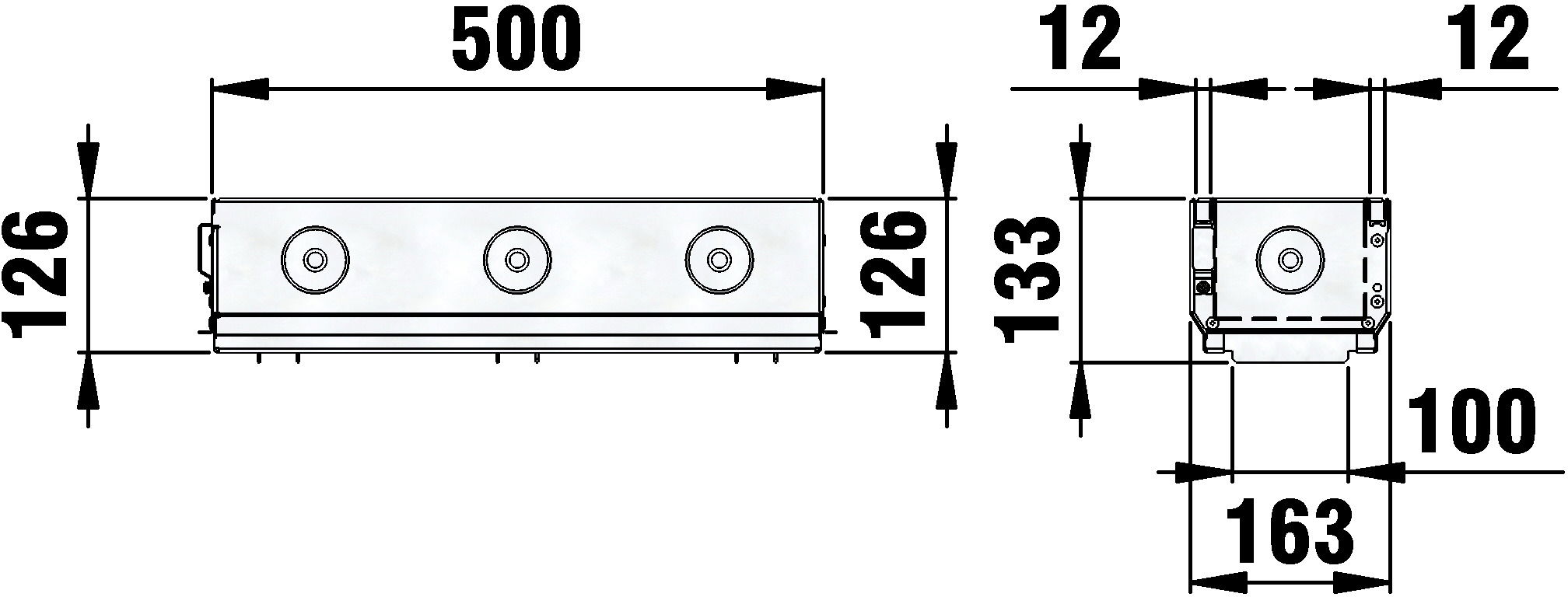

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
32811
Length
500 mm
Width
163 mm
Height
133 mm
Inlay depth
126 mm
Weight
5.24 kg
Material
Stainless steel 1.4301
Intake cross-section
297.0 cm²/m
Nominal size
100
Inlet opening
500 x 12 mm
Material grating
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Access cover SW 12 mm, neck height 105 mm, stainless steel, asymmetrc, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0,5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access cover for slotted cover slot width 12 mm, neck height 105 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, loading capacity from A 15 - D 400, length 500 mm, item no. 32811
Packaging unit
84
