Article No. 7701
SPORTFIX CLEAN 100, filter channels
Type 020 starting element, with GUGI mesh grating, MS 15/25 mm, black, class B 125 and drainage pipe with geotextile, incl. 10 L filter substrate CARBOTEC, 1.0 m

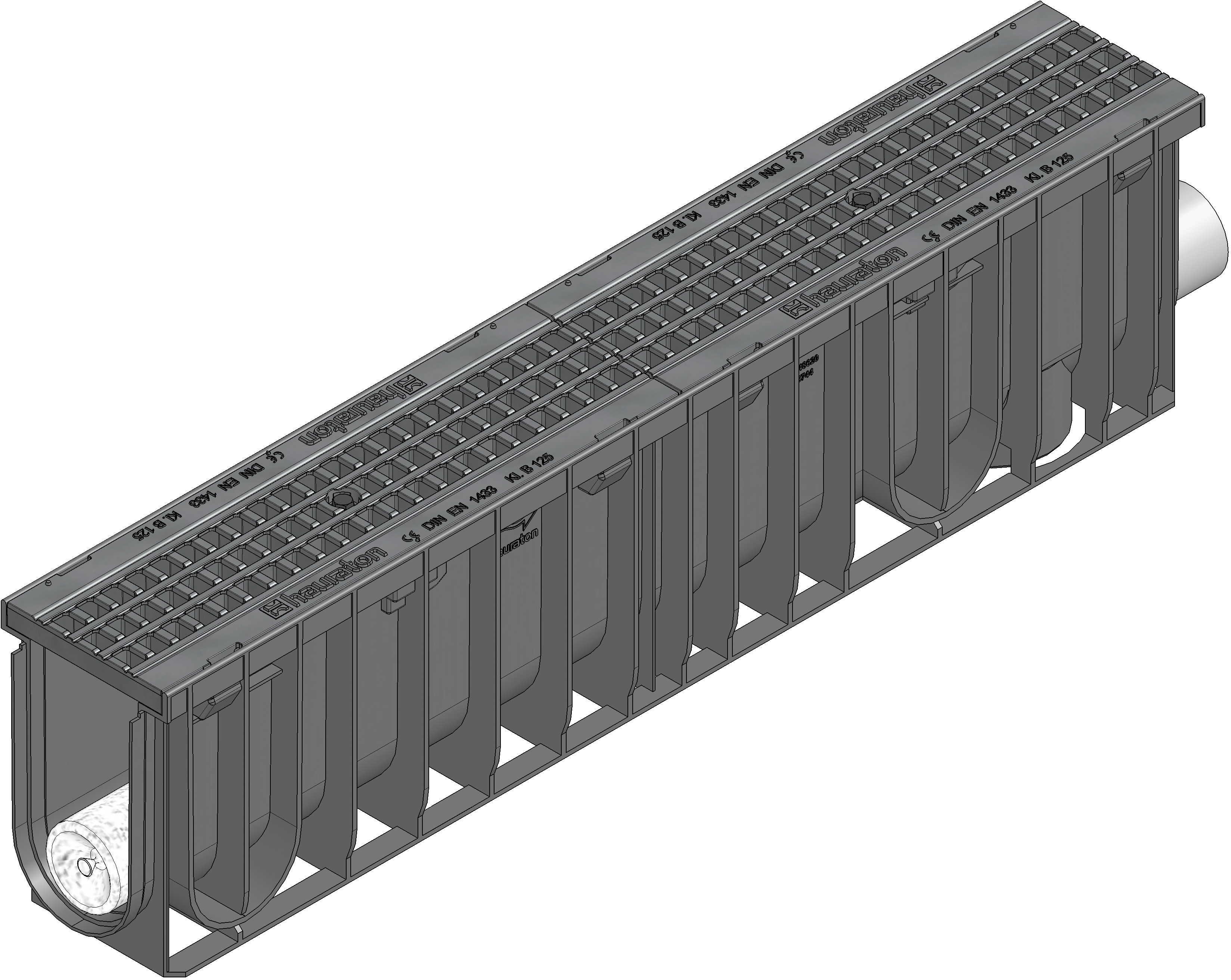

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
7701
Length
1000 mm
Width
160 mm
Height
250 mm
Inlay depth
20 mm
Weight
5.89 kg
Material
mineral filter substrate, recycled polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX CLEAN 100 type 020 - Starting element, with GUGI-mesh grating made of fibre-reinforced PA, MS 15/25 mm, black, cl. B 125 and with drainage pipe DN/OD 75, with geotextile and connector, tied at the end, incl. 10 L filter substrate CARBOTEC, 1 m
Product description
SPORTFIX CLEAN 100 type 020 - Starting element made of recycled polypropylene, with drainage pipe DN/OD 75, wrapped with geotextile and connector, tied at the end, with GUGI-mesh grating MS 15/25 mm made of fibre-reinforced polyamide, black, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, incl. 10 L filter substrate CARBOTEC, LxWxH 1000x160x250 mm, item no. 7701
Packaging unit
-
Tender Texts
Installation example
artificial turf class A 15,
running track / artificial turf class A 15,
