Article No. 65078

DACHFIX STEEL 115, height 150 mm

Type 150, height adjustable, galvanised, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

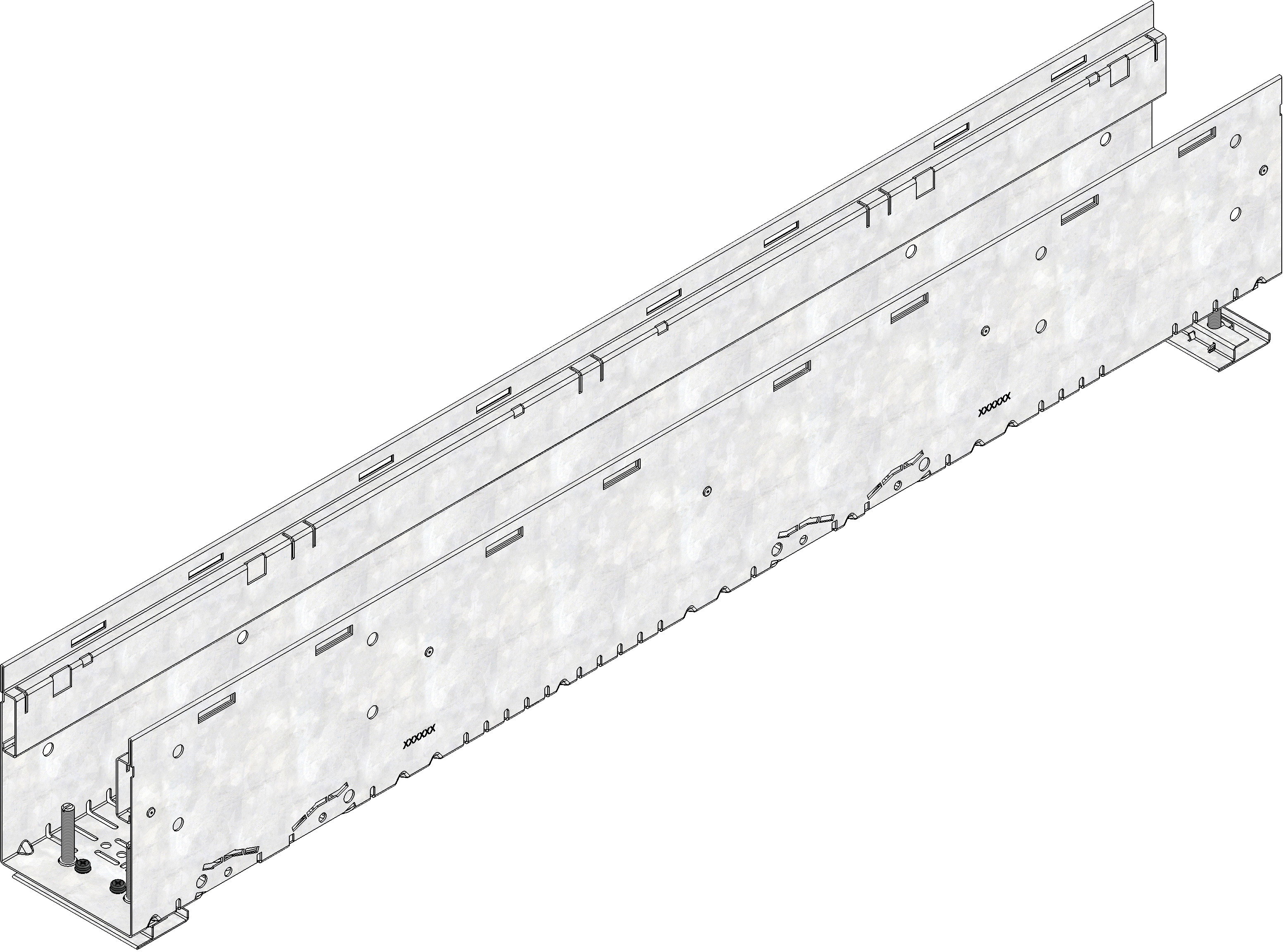

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65078
Length
1000 mm
Width
115 mm
Height
164 - 199 mm
Weight
6.28 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
142 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 115 Channel body type 150, height adjustable, galvanised, height adjustment range 164-199 mm, 1 m
Product description
DACHFIX STEEL 115 type 150 - channel body with adjustable base plate, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection, with integrated, optional 4-fold fixing anchor, incl. 2 adjustment sets/metre, height adjustability 164-199 mm, LxWxH 1000x115x164-199 mm, item no. 65078
Packaging unit
360
