Article No. 96420
DRAINFIX - Rainwater treatment plants (DWA)
Type 100
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

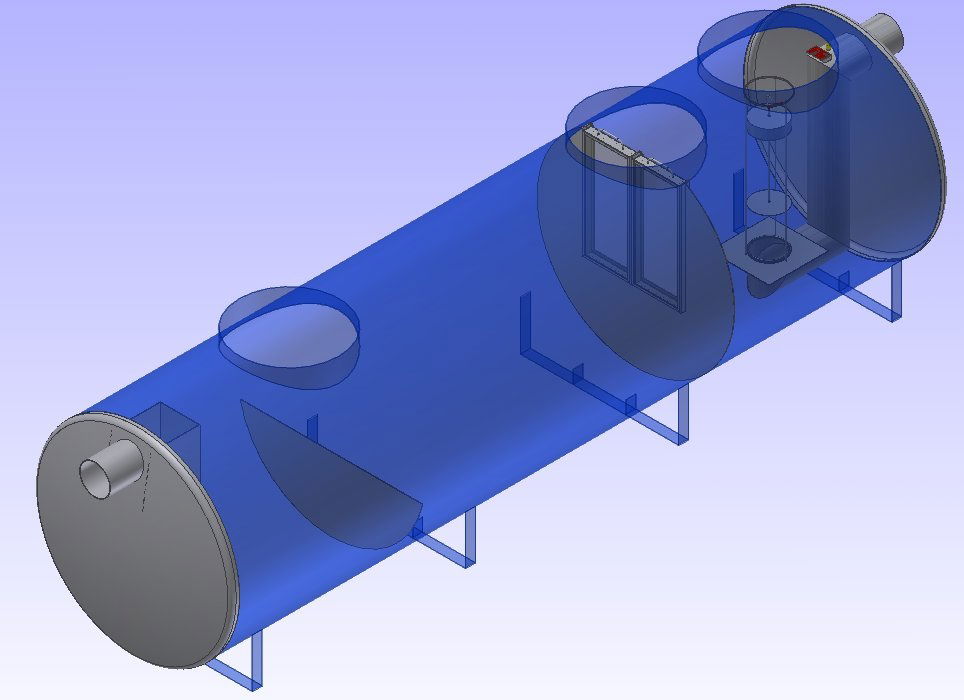

Product image
Technical information and metrics
Article No.
96420
Length
17000 mm
Width
2500 mm
External diameter
2500 mm
Height
2650 mm
Weight
8900.00 kg
Material
AQUAFIX coalescence material, AQUAFIX Steel
Nominal size
100 l/s
Bypass
without bypass
Flow performance
100.0 l/s
sludge trap capacity
-
Separator capacity
70580 l
DN in-/outlet
315 mm
HE height inlet
2100 mm
HA height outlet
2000 mm
DNE Manhole 1
1000 mm
Sales text
DRAINFIX rainwater treatment plant, type 100, ATV
Product description
DRAINFIX RAINWATER TREATMENT PLANT TYPE 100 DWA , DN 2500 mm for 100 l/s inlet in front of DRAINFIX ditch including filter element and sedimentation space; pipe connection possibility DN/OD 315; length 17000 mm, Shaft height 2650 mm, weight 8900 kg, Item No. 96420
Packaging unit
-
Tender Texts
Installation example
multi-layer paving for traffic areas
Installation instructions
