Article No. 96400
DRAINFIX - Rainwater treatment plants (DWA)
Type 20
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

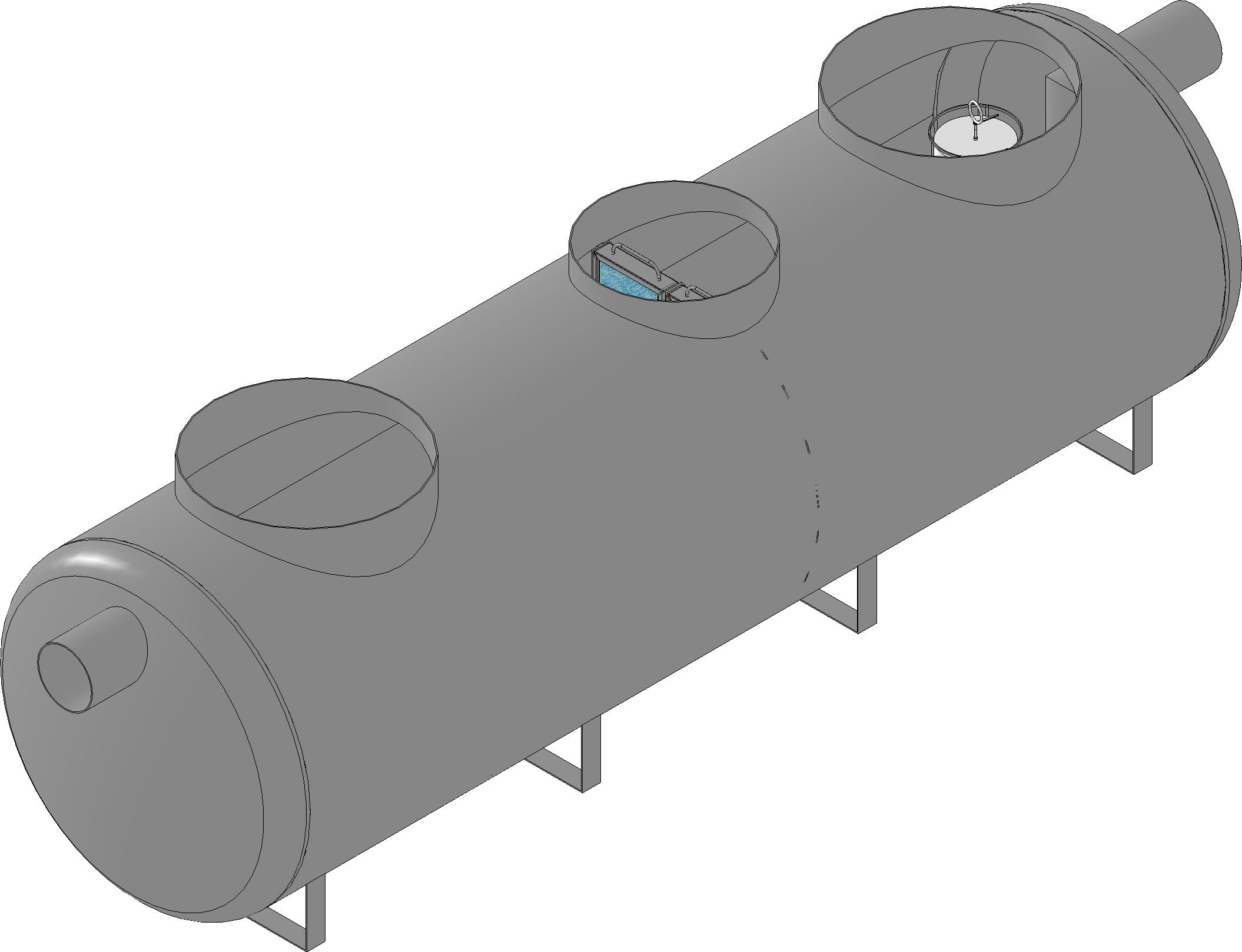

Product image
Installation drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
96400
Length
6000 mm
Width
1500 mm
External diameter
1500 mm
Height
1650 mm
Weight
1500.00 kg
Material
AQUAFIX coalescence material, AQUAFIX Steel
Nominal size
20 l/s
Bypass
without bypass
Flow performance
20.0 l/s
sludge trap capacity
-
Separator capacity
7020 l
DN in-/outlet
315 mm
HE height inlet
1100 mm
HA height outlet
1000 mm
DNE Manhole 1
1000 mm
Sales text
DRAINFIX rainwater treatment plant, type 20, ATV
Product description
DRAINFIX RAINWATER TREATMENT PLANT TYPE 20 DWA , DN 1500 mm for 20 l/s inlet in front of DRAINFIX ditch including filter element and sedimentation space; pipe connection possibility DN/OD 315; length 6000 mm, Shaft height 1650 mm, weight 1500 kg, Item No. 96400
Packaging unit
-
Tender Texts
Installation example
multi-layer paving for traffic areas

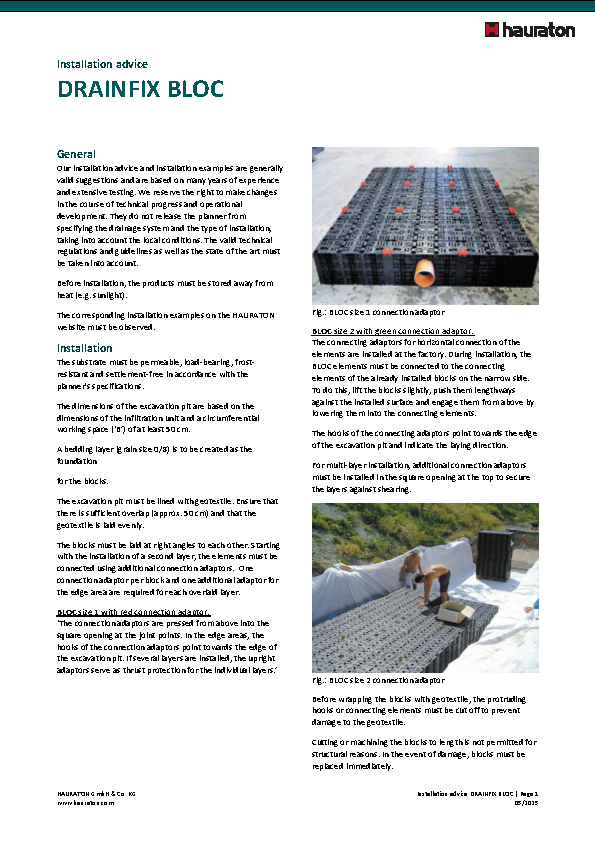

Installation instructions
