Article No. 24861
FASERFIX BIG BL 300, class F 900
Ductile iron grating, raw, class F 900
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

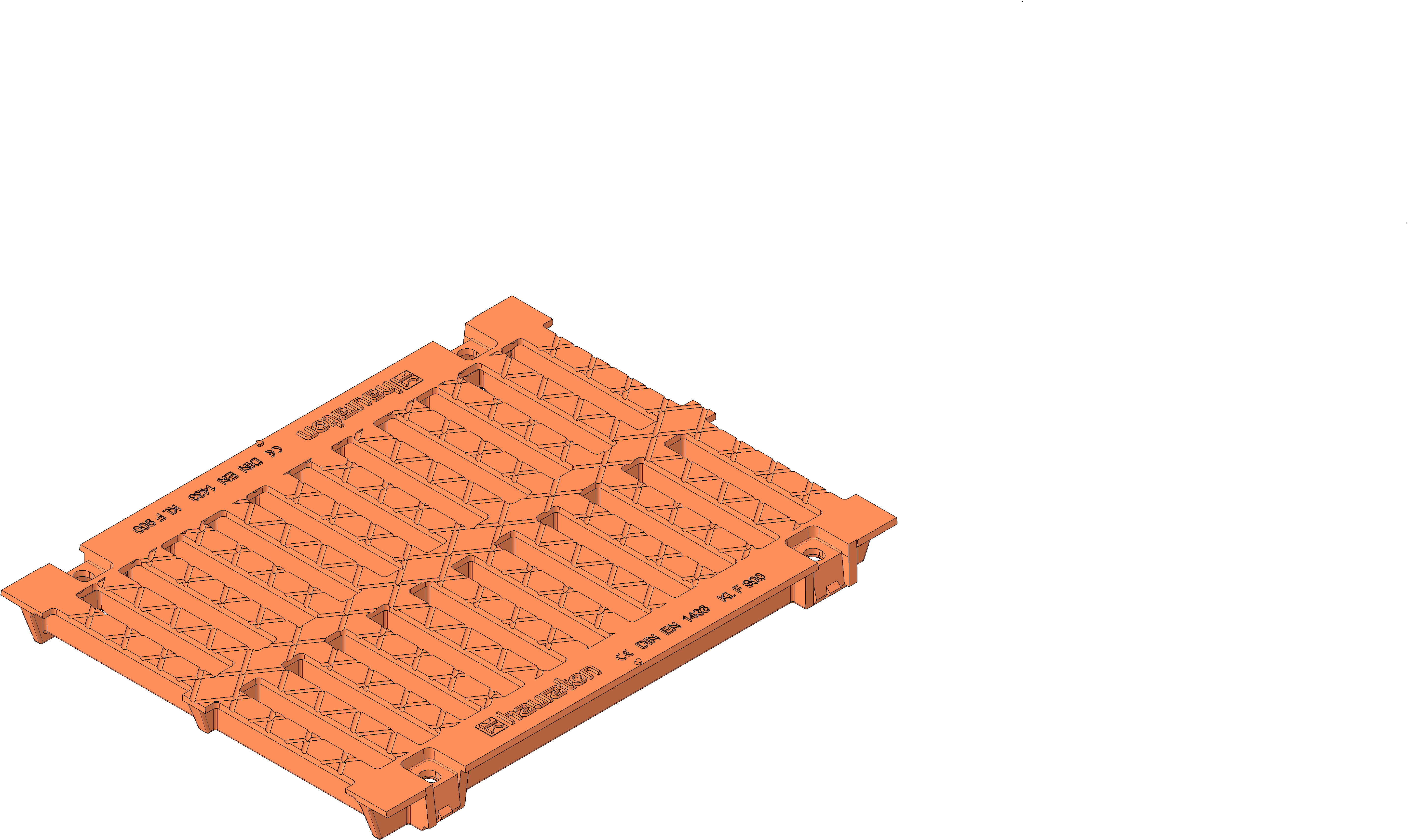

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24861
Length
500 mm
Width
377 mm
Height
64 mm
Inlay depth
40 mm
Weight
22.36 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1334.0 cm²/m
Nominal size
300
Inlet opening
136 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433
Sales text
Ductile iron grating 2x SW 136/20 mm, raw, cl. F 900, FASERFIX SUPER 300, 0.5 m
Product description
FASERFIX SUPER 300 - Ductile iron grating 2x SW 136/20 mm, made of spheroidal ductile iron EN-GJS-500-7, raw, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 24861
Packaging unit
50
