Article No. 10210
FASERFIX KS 150, class C 250
Ductile iron grating SW 132/18 mm, black, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

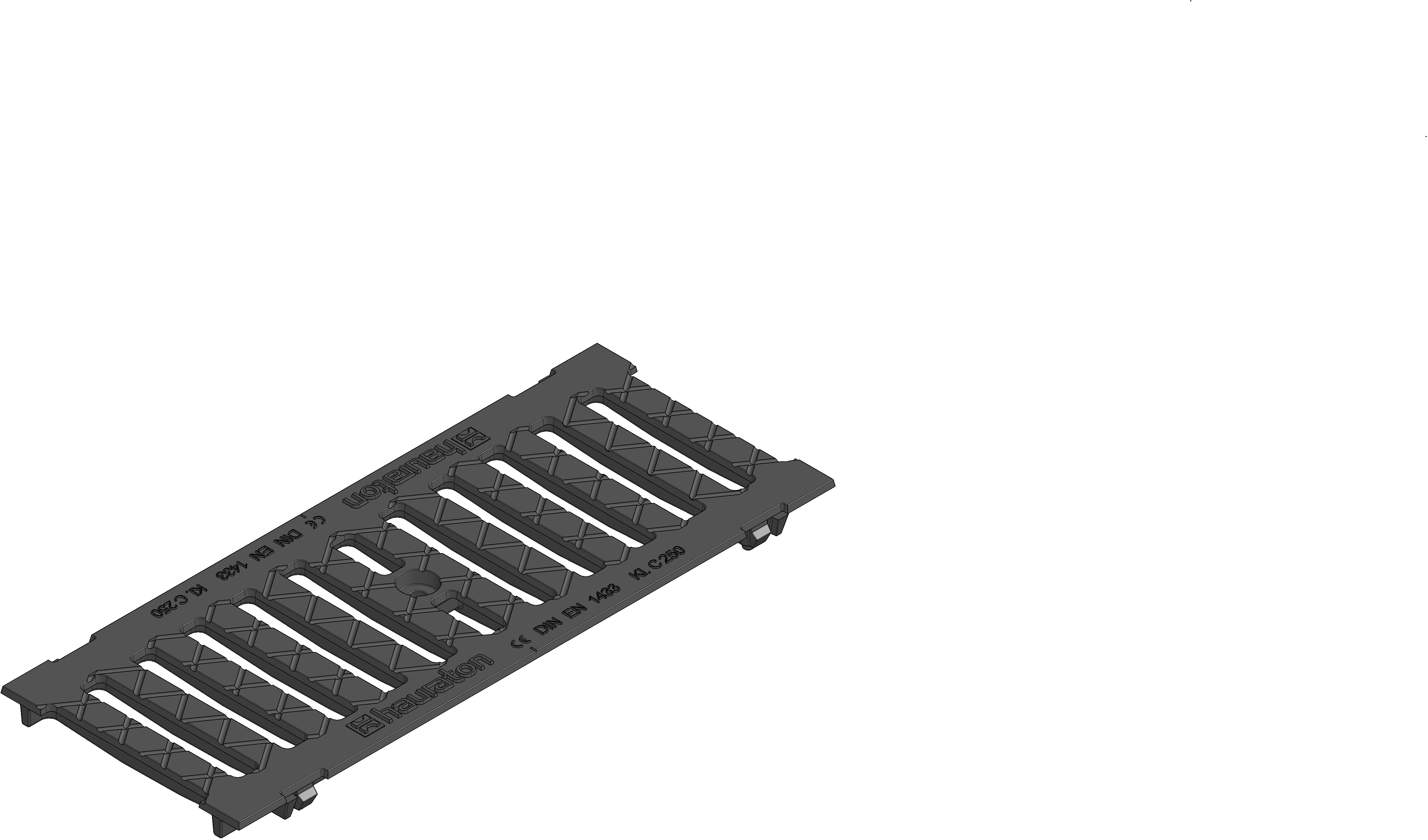

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10210
Length
500 mm
Width
199 mm
Height
26 mm
Inlay depth
20 mm
Weight
4.97 kg
Material
Ductile iron GJS 500-7
Intake cross-section
553.0 cm²/m
Nominal size
150
Inlet opening
132 x 18 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433
Sales text
Ductile iron grating SW 132/18 mm, black, cl. C 250, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - Ductile iron grating SW 132/18 mm, made of spheroidal ductile iron GJS 500-7, black, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold-locking, installation length 500 mm, item no. 10210
Packaging unit
154
Declaration of Performance
