Article No. 40149
RECYFIX STANDARD 150, class C 250
Type 01 with GUGI-Ductile iron mesh grating MS 15/25 mm, black, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

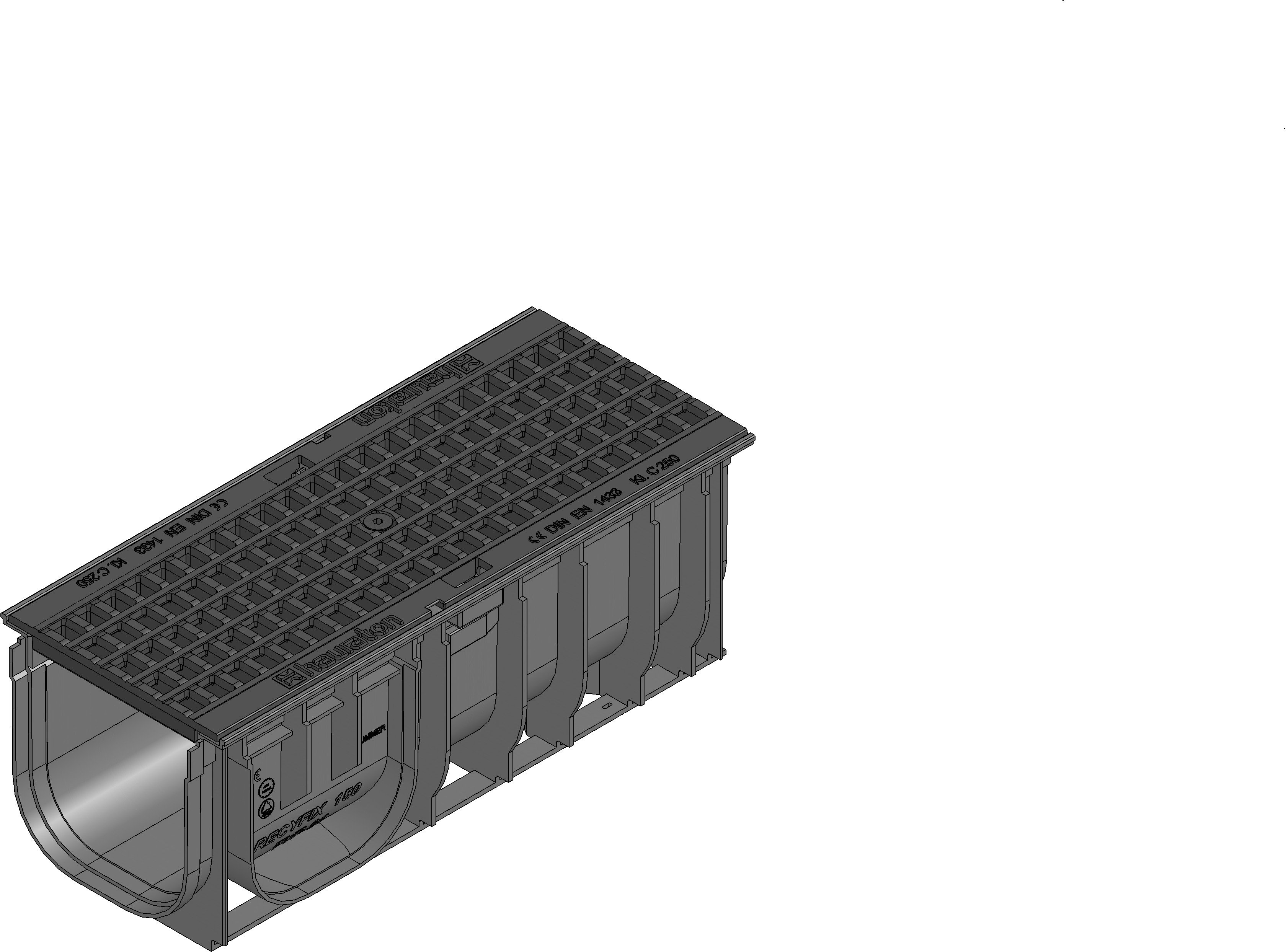

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40149
Length
500 mm
Width
210 mm
Height
192 mm
Inlay depth
6 mm
Weight
6.00 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
735.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 01 with GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, 0.5 m
Product description
RECYFIX STANDARD 150 type 01 - Channel body made of recycled polypropylene, with GUGI-ductile iron mesh grating made of spheroidal ductile iron EN-GJS-500-7, MS 15/25 mm, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x210x192 mm, item no. 40149
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
