Article No. 33058
SLOTTED COVERS 100, neck height 105 mm, class A 15
Access cover SW 10 mm, stainless steel V4A, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

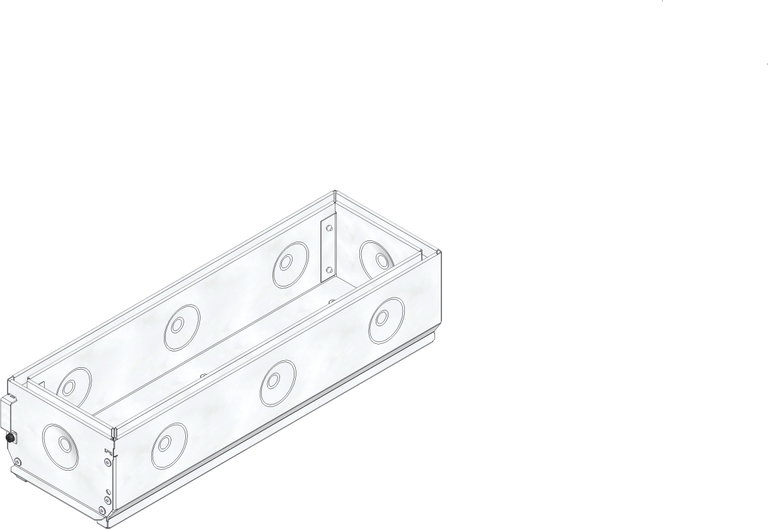

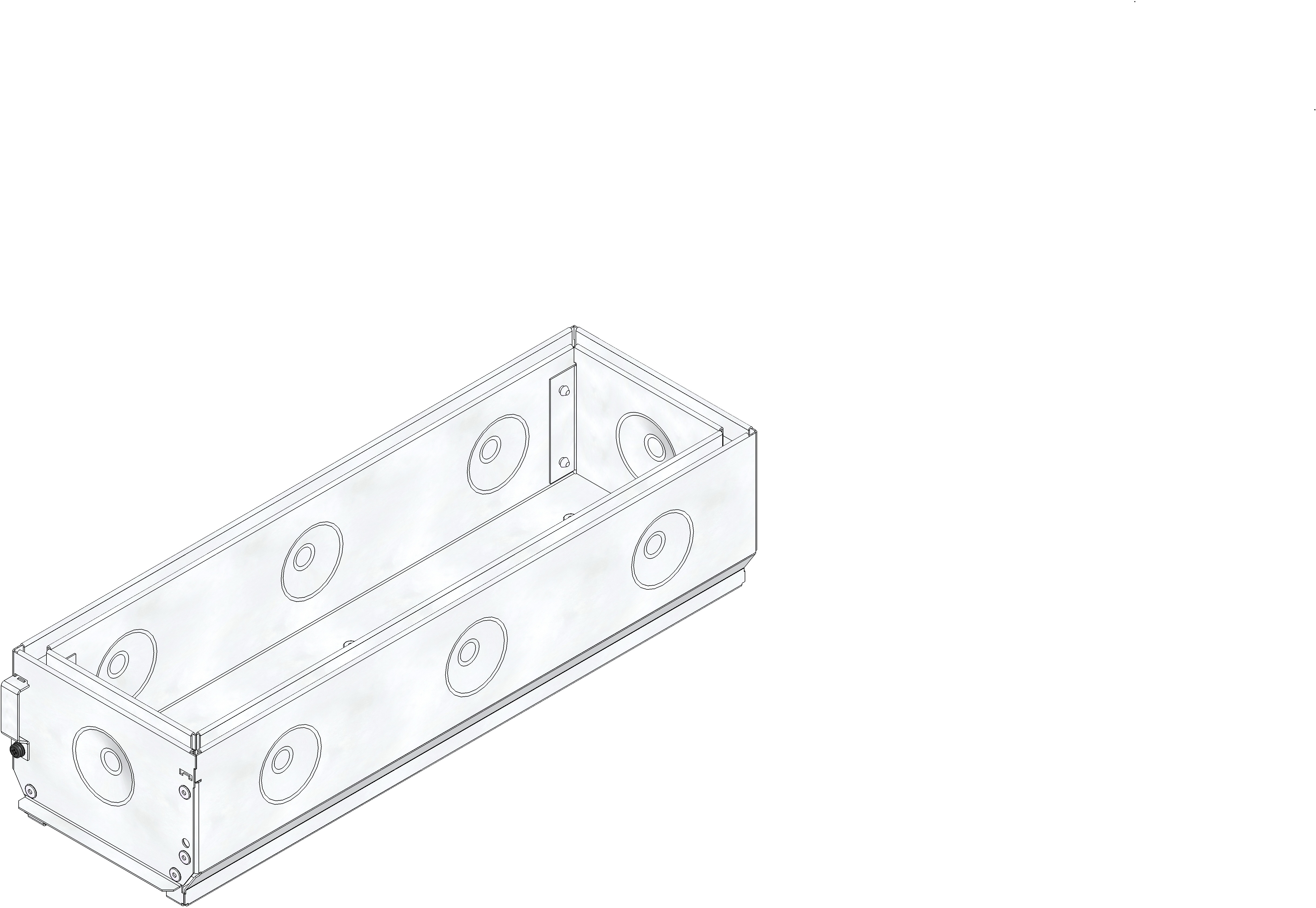

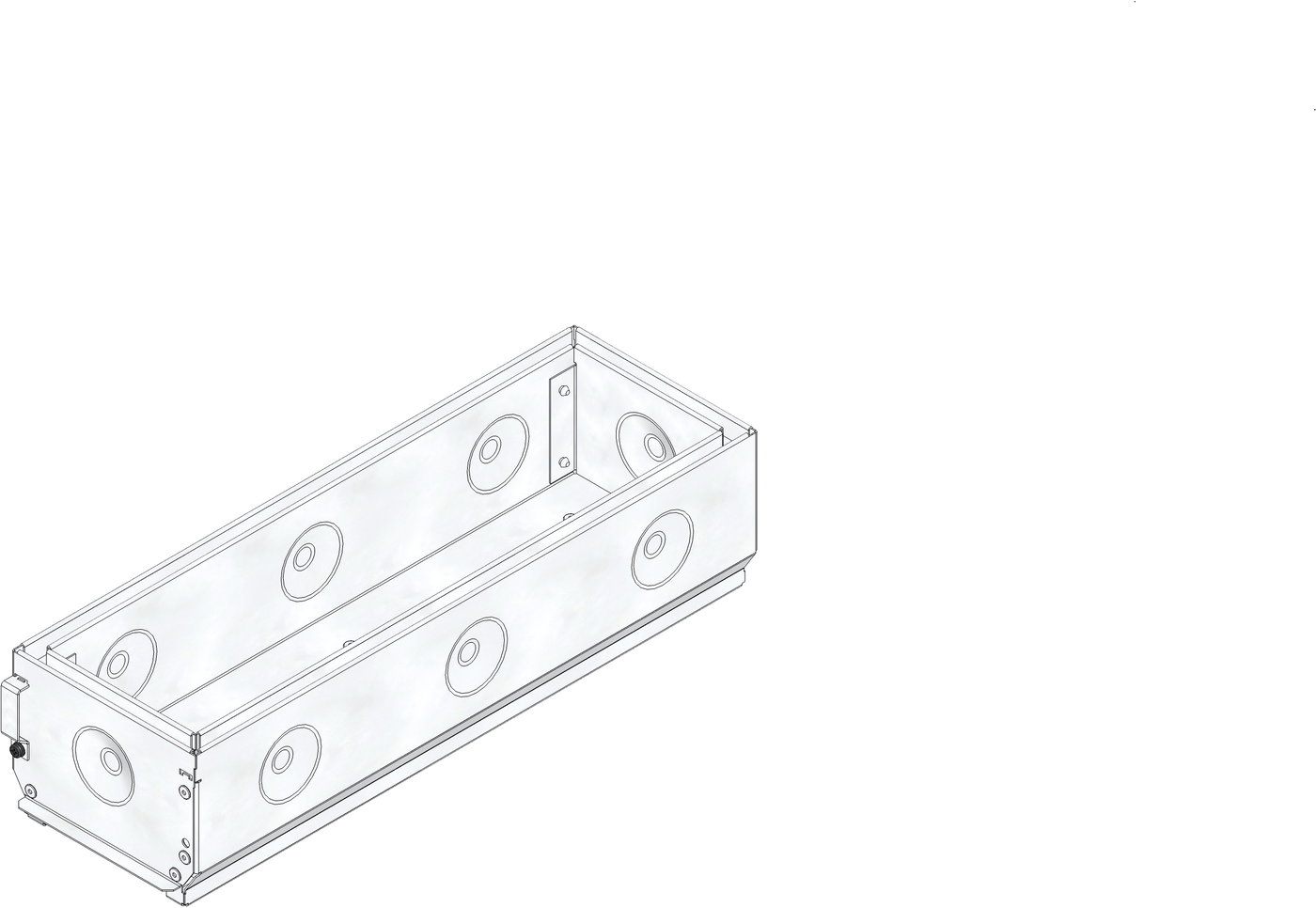

Product image
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
33058
Length
500 mm
Width
163 mm
Height
133 mm
Inlay depth
133 mm
Weight
3.74 kg
Material
Stainless steel 1.4404
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
500 x 10 mm
Material grating
Stainless steel 1.4404
Sales text
Access cover SW 10 mm, neck height 105 mm, stainless steel V4A, asymmetric, cl. A 15, FASERFIX KS/FASERFIX STANDARD/ RECYFIX PRO 100 , 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access cover for slotted cover SW 10 mm, neck height 105 mm, asymmetric, stainless steel CNS 1.4404, load class A 15 according to EN 1433, length 500 mm, item no. 33058
Packaging unit
-
Declaration of Performance
