Article No. 69068
STEELFIX REGULAR 205
FIBRETEC Design slotted grating, SW 150/9 mm, in the colour black, screwable from type 75, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

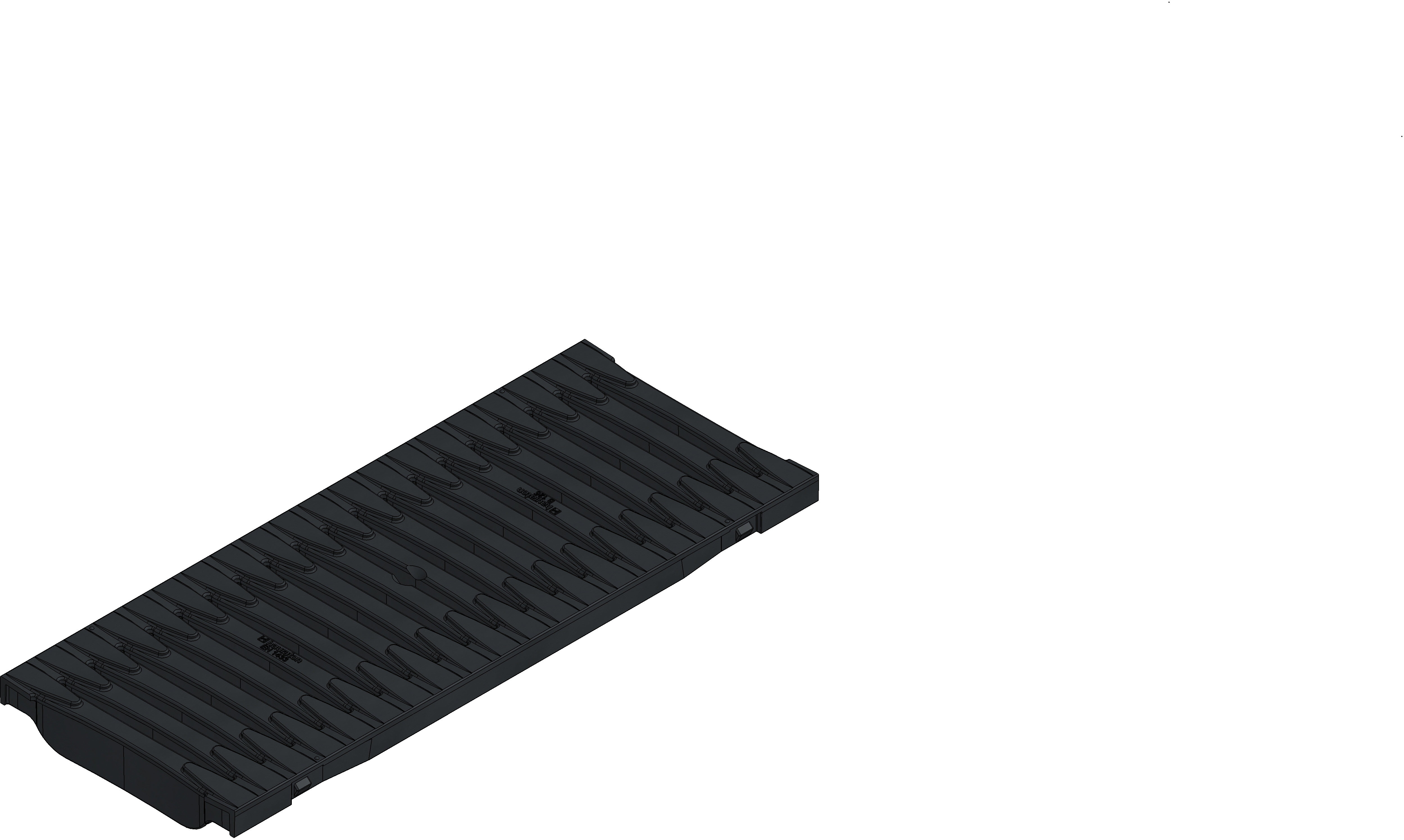

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69068
Length
500 mm
Width
199 mm
Height
40 mm
Inlay depth
20 mm
Weight
2.00 kg
Material
reinforced Polyamide
Intake cross-section
500.0 cm²/m
Nominal size
205
Inlet opening
148 x 10 mm
Fixing type
Locking handle
Material grating
reinforced Polyamide
Regulations
DIN 51130, AS 4586, EN 16165
Sales text
FIBRETEC Design slotted grating SW 150/9 mm, black, pedestrian and wheelchair-accessible, screwable from type 75, DACHFIX STEEL/ STEELFIX REGULAR 205, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -FIBRETEC design slotted grating SW 150/9 mm, made of fibre-reinforced polyamide, black, pedestrian and wheelchair-accessible, screwable from type 75, installation length 500 mm, item no. 69068
Packaging unit
84
