Article No. 97261
Trash boxes
for NW 200, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, with ductile iron grating closed, KTL-coated, class E 600, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

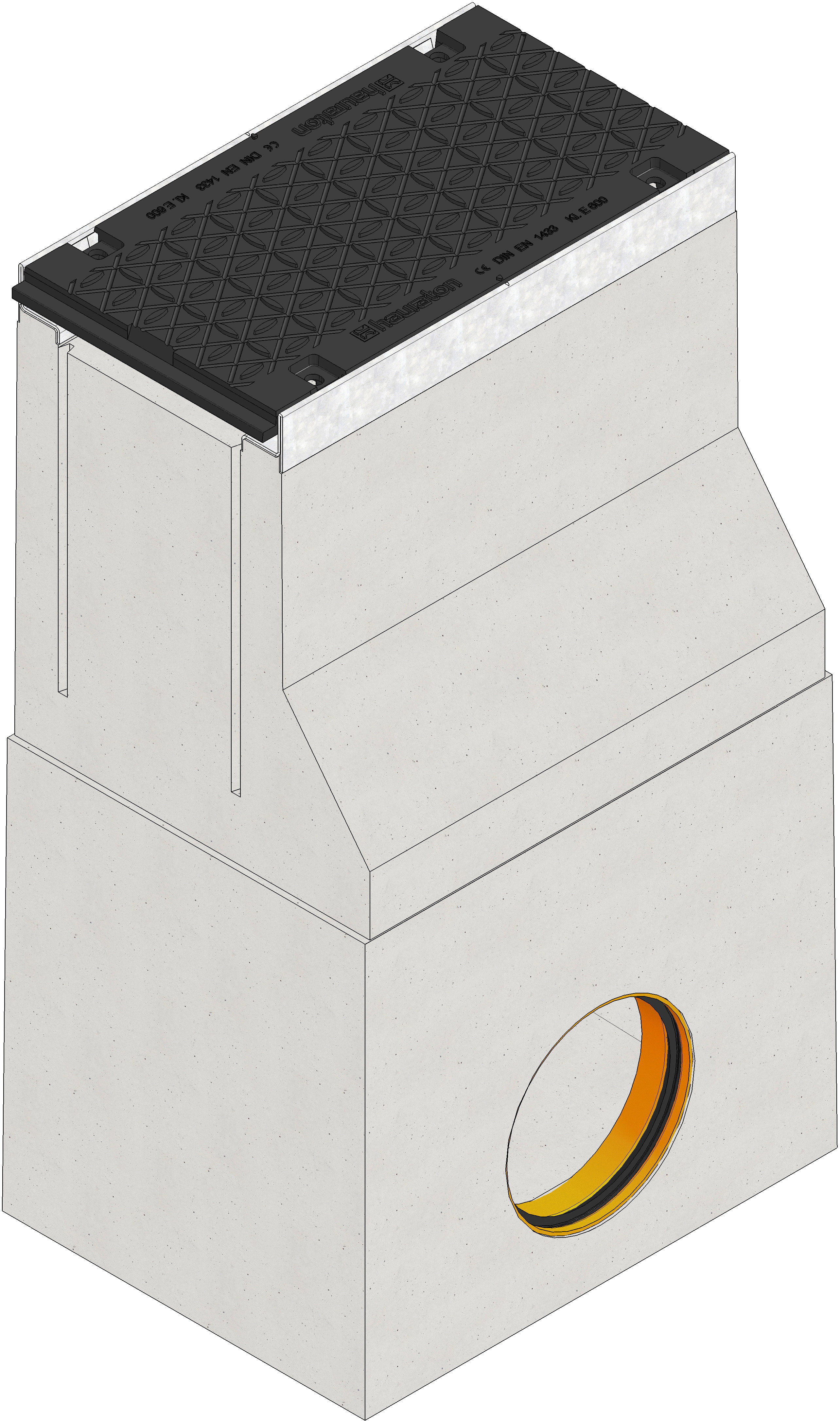

Product image

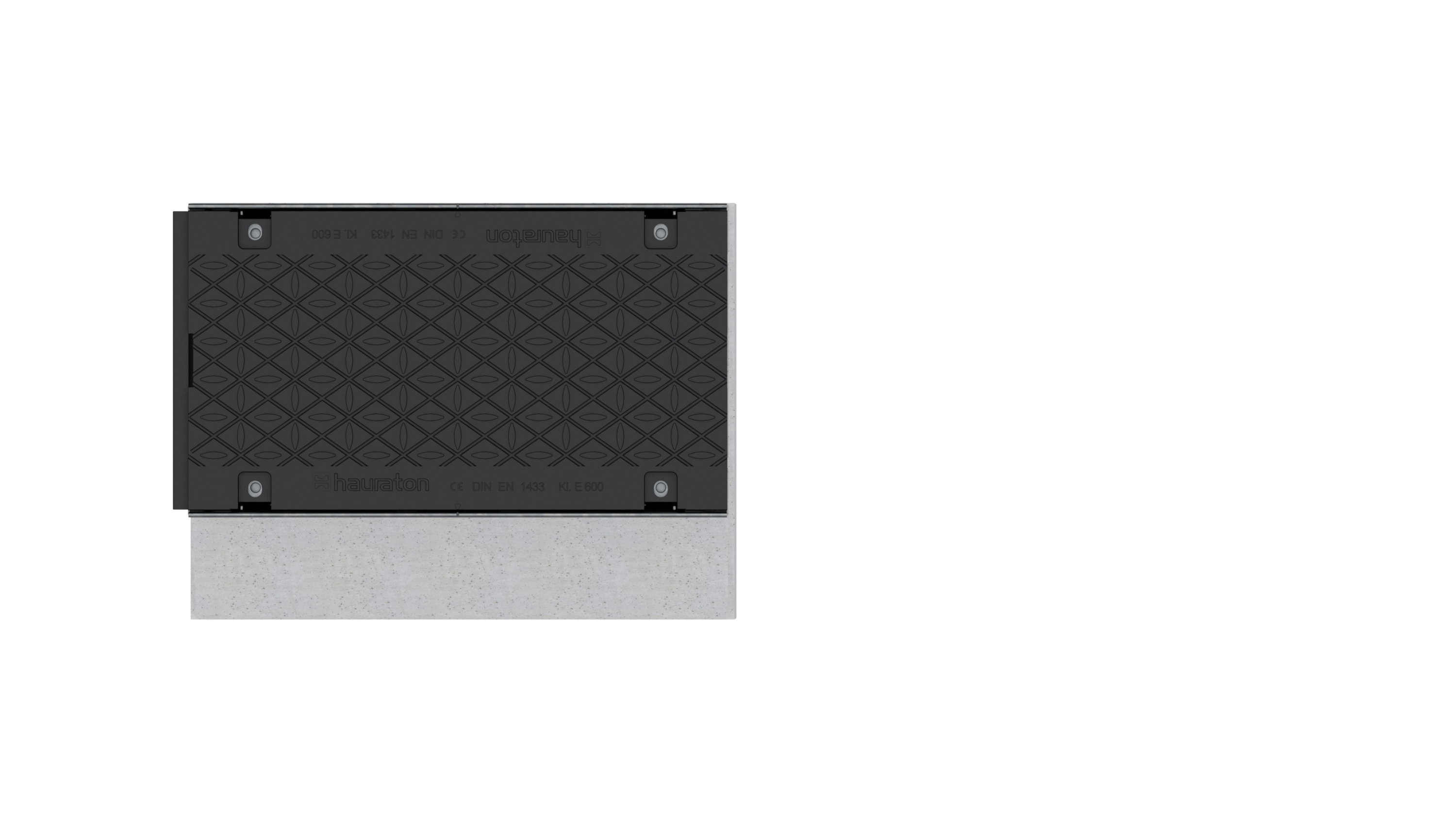

Top view

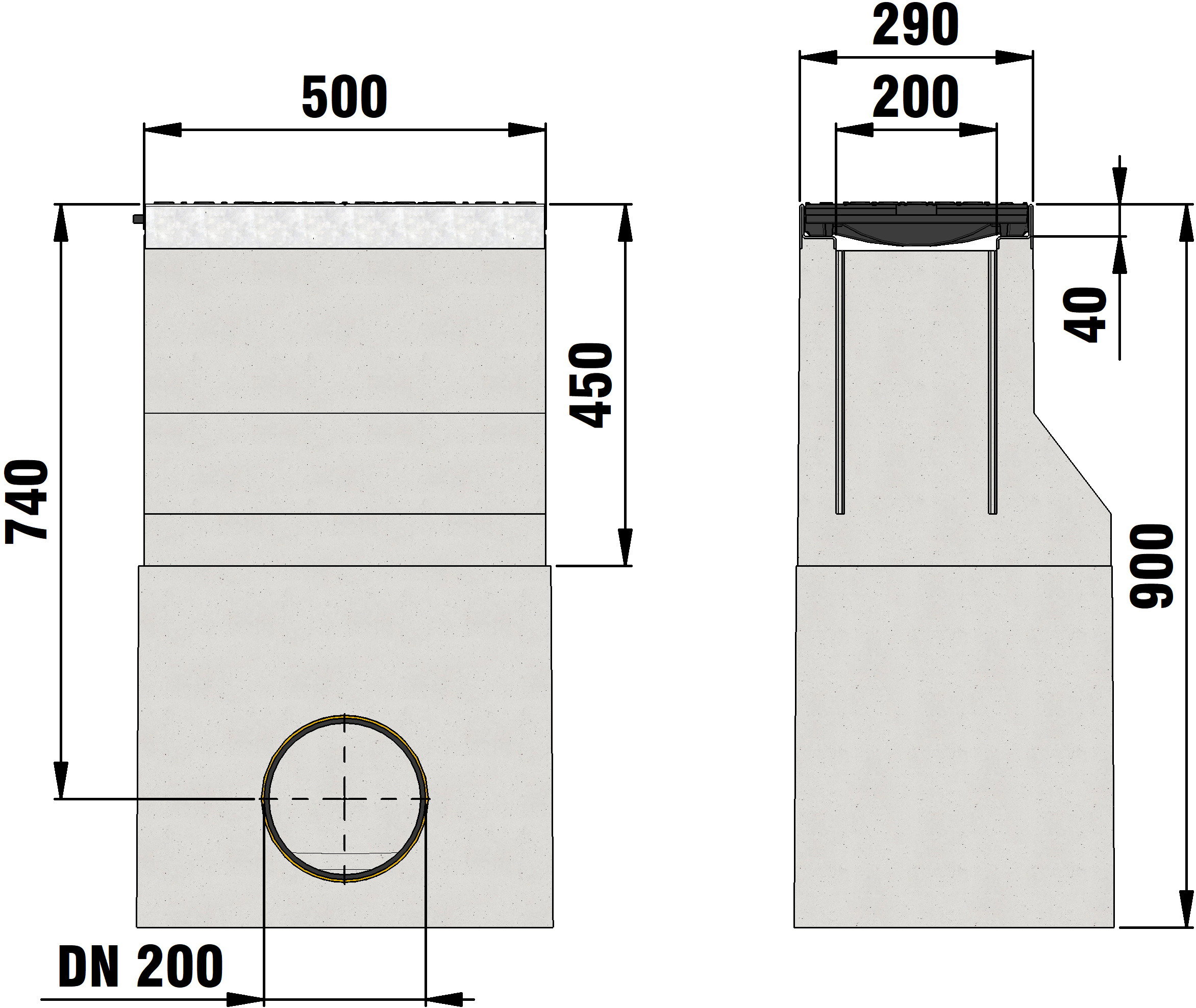

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
97261
Length
500 mm
Width
290 mm
Height
900 mm
Inlay depth
40 mm
Weight
203.90 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete, Steel with zinc-magnesium coating
Intake cross-section
0.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7
Sales text
Sump unit, 2-part, with edge frames made of galvanised steel, with ductile iron grating closed, KTL-coated, cl. E 600, with silt bucket made of galvanised steel, DRAINFIX CLEAN FSU 200, 0.5 m
Product description
DRAINFIX CLEAN FSU 200 - Sump unit, 2-part, made of fibre-reinforced concrete, with edge frames made of galvanised steel, load class A 15 - F 900 according to EN 1433, one-sided connection possibility with PVC-U pipe outlet DN/OD 200 (lateral), with removable silt bucket made of galvanised steel, ductile iron grating, closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, load class A 15 - E 600 according to EN 1433, with longitudinal slide protection, 4-fold locking, suitable for both-sided connection of channel types DRAINFIX CLEAN FSU 200, LxWxH 500x290x900 mm, item no. 97261
Packaging unit
-
