Article No. 40042
sump unit
for NW 200, with silt bucket made of recycled PP, with mesh grating MS 30/10 mm, cl. B 125, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

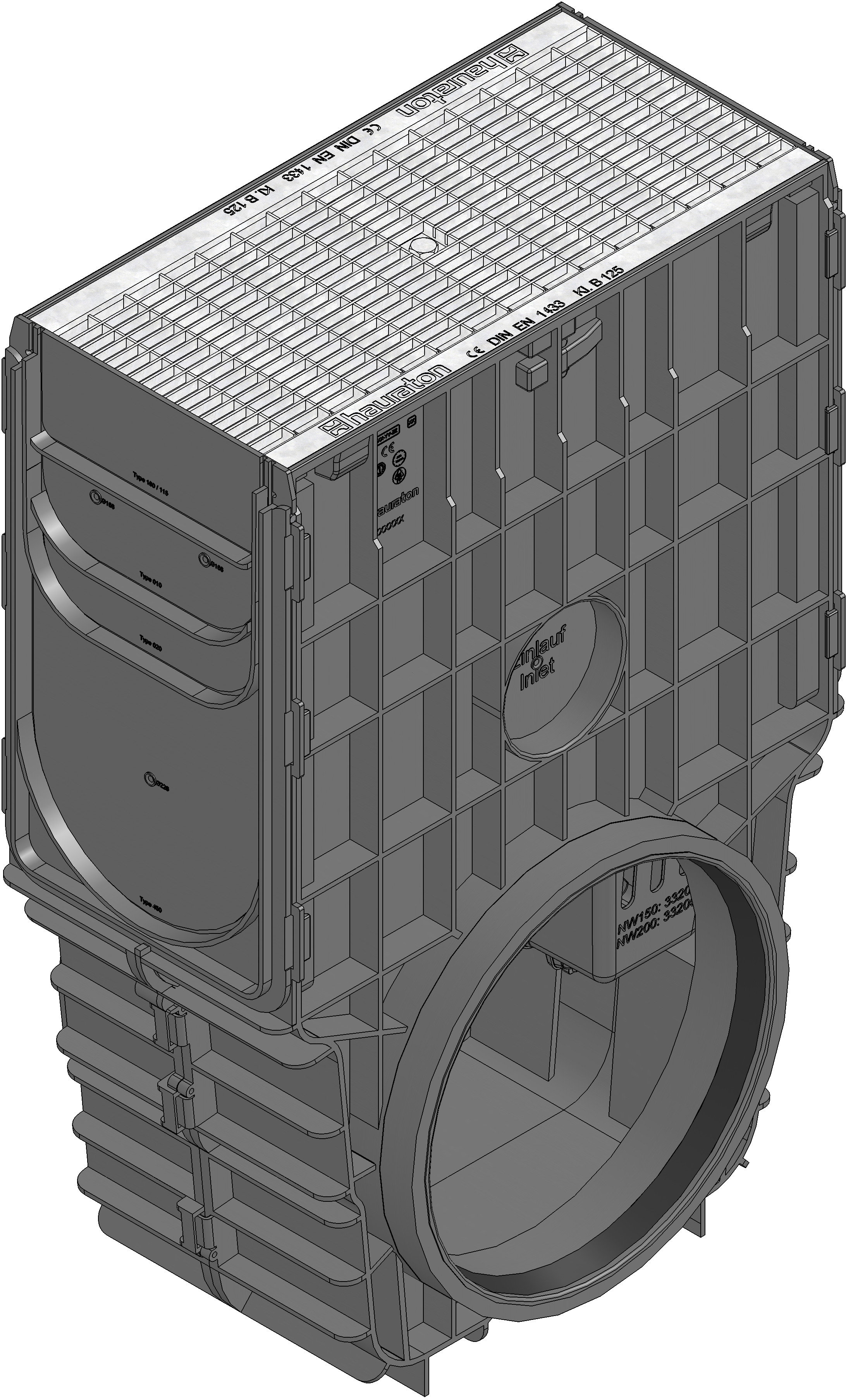

Product image
Technical drawing

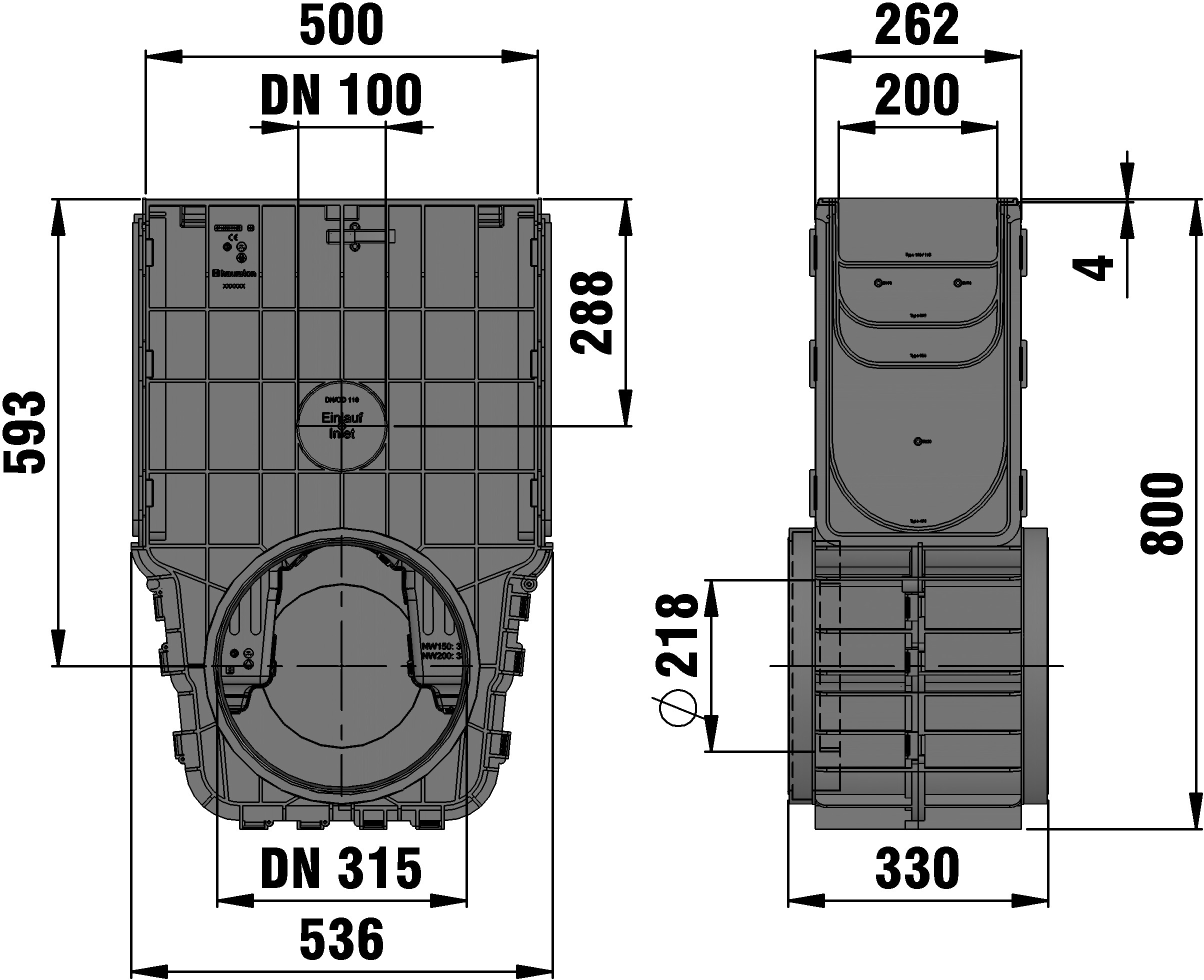

Drawing
Drawing (CAD)

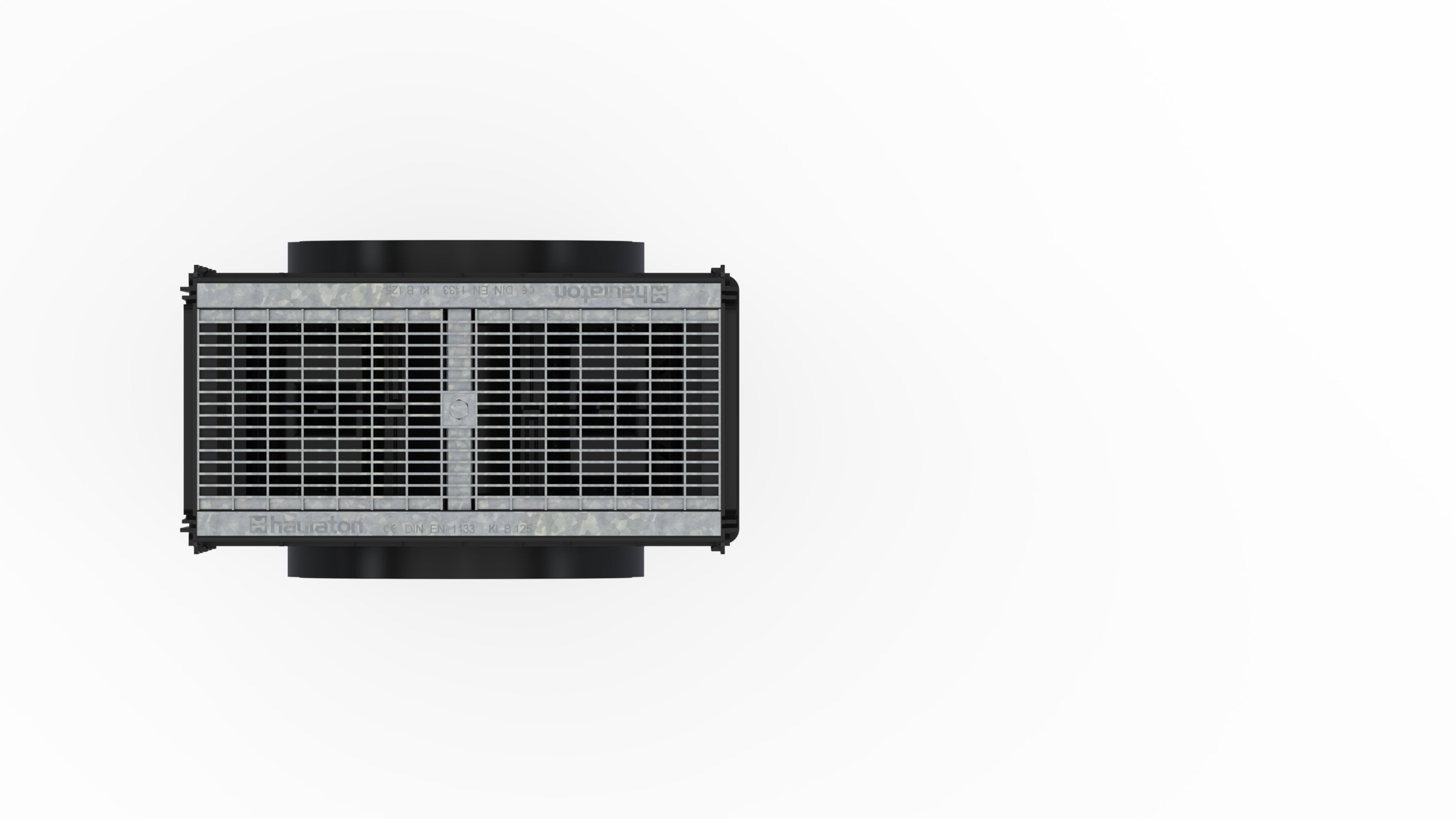

Top view
Technical information and metrics
Article No.
40042
Length
500 mm
Width
262 mm
Height
800 mm
Inlay depth
2 mm
Weight
13.07 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene
Intake cross-section
1447.0 cm²/m
Nominal size
200
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX STANDARD 200, 0.5 m
Product description
RECYFIX STANDARD 200 - Sump unit made of recycled polypropylene, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX STANDARD 200, with mesh grating MS 30/10 mm, galvanised, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x262x800 mm, item no. 40042
Packaging unit
4
