Article No. 97654

DRAINFIX CLEAN FSU 300 filter substrate channel up to class F 900 with ductile iron angle housing

Type 020, starting element, 1.0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

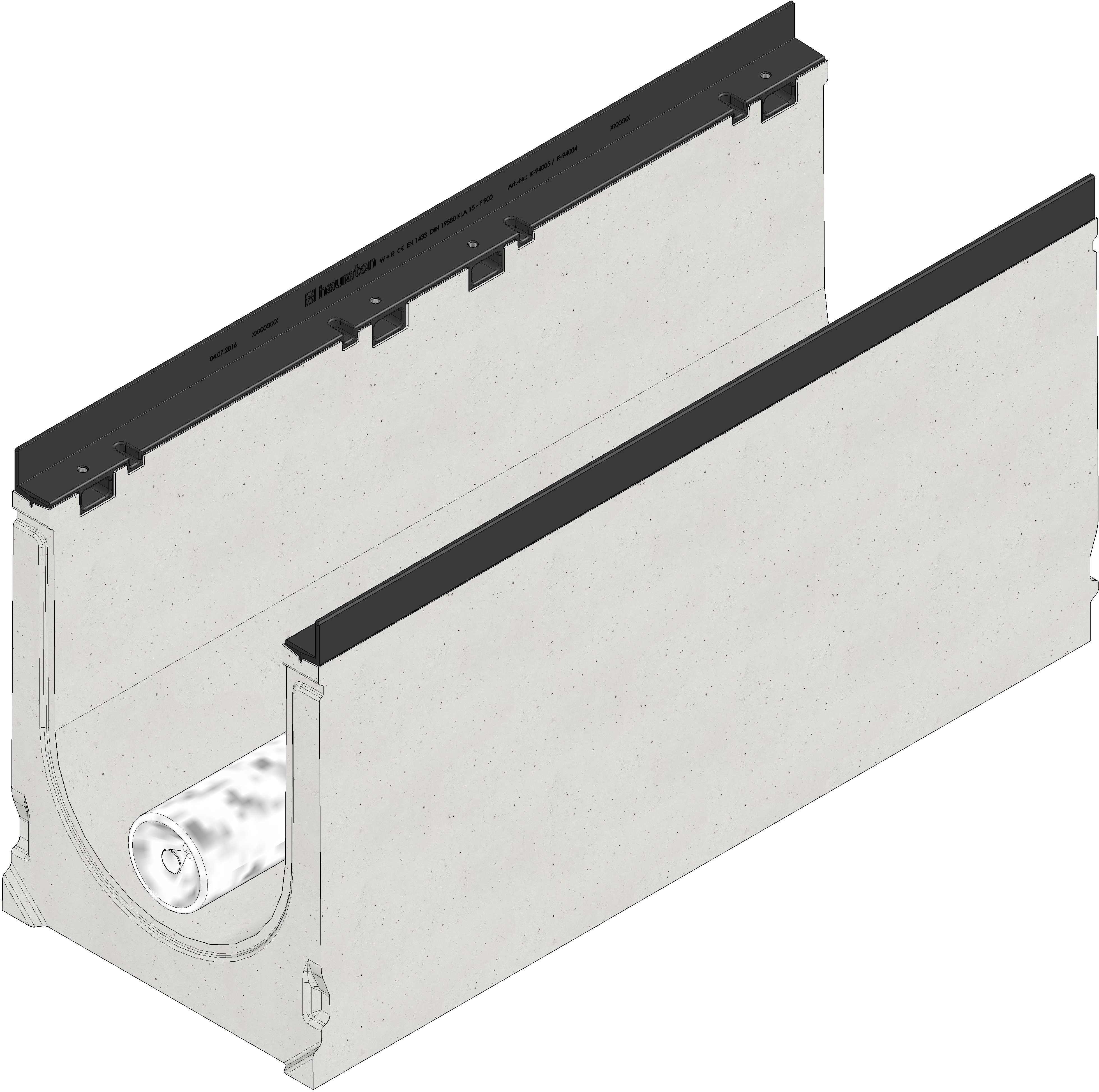

Product image

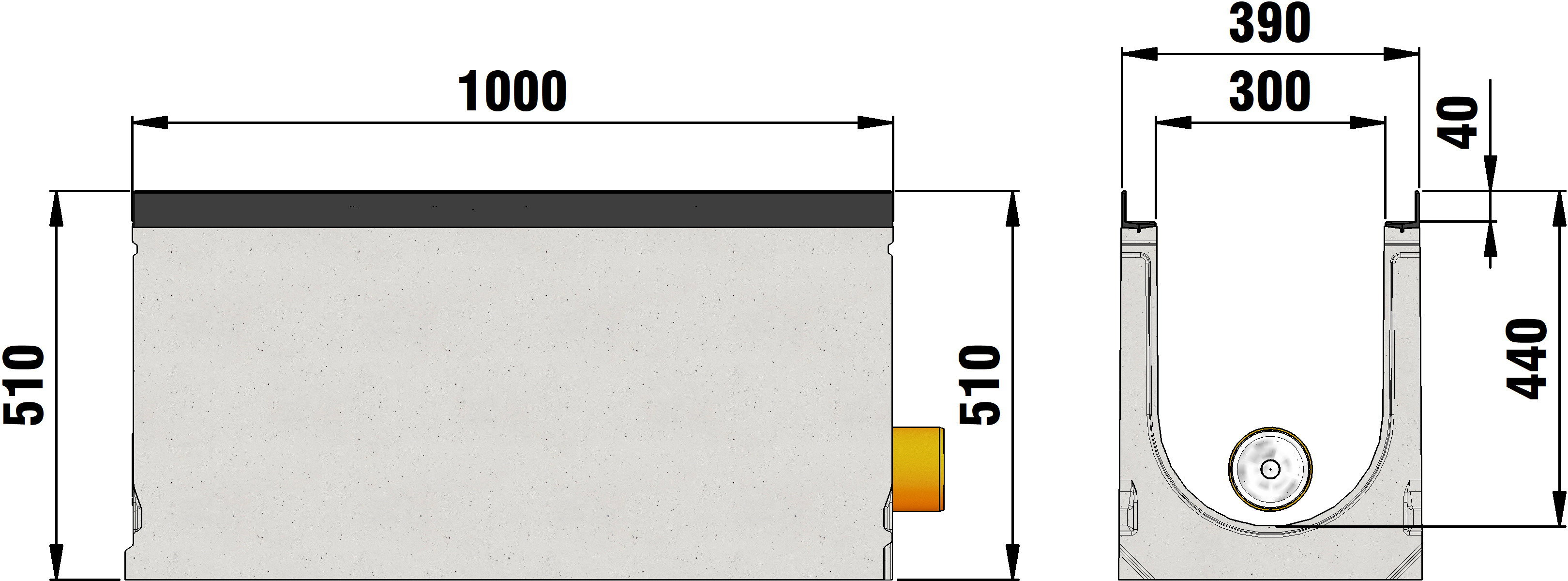

Technical drawing

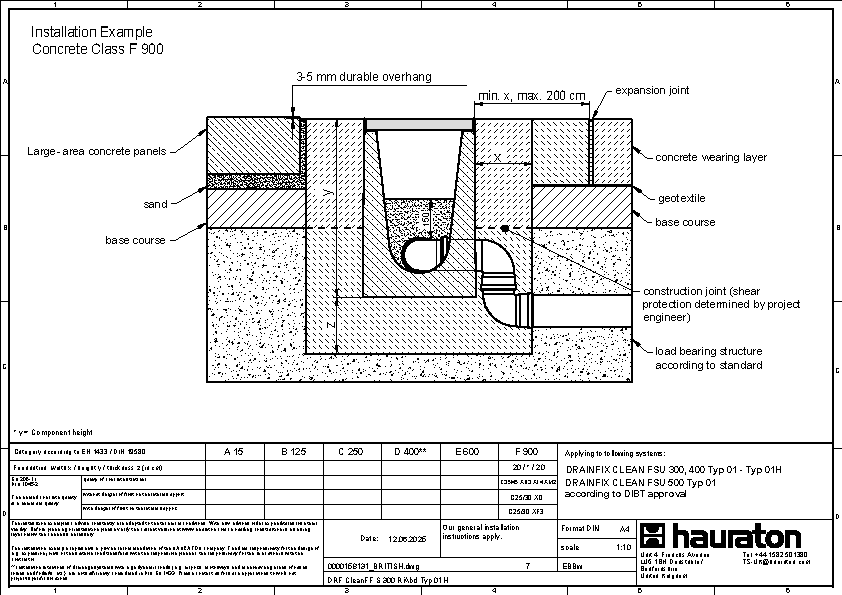

Drawing (CAD)

Drawing (CAD)

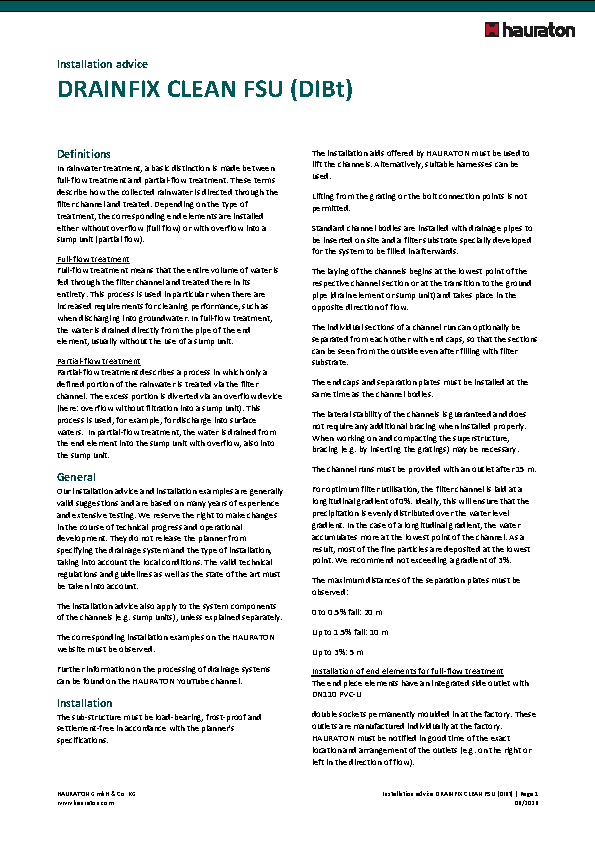

Data Sheet

Technical information and metrics
Article No.
97654
Length
1000 mm
Width
390 mm
Height
510 mm
Weight
175.34 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Retention volume
52 l/m
Retention cross-section
520.0 cm²
Height filling of substratum (effective, from the middle of the filter grid tube to the top edge of the substrate)
200.0 mm
Substrat­um required
59.0 l/lfdm.
Nominal size
300
Channel material
fibre-reinforced concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
DRAINFIX CLEAN FSU 300 type 020 - Starting element with edge frames made of KTL-coated ductile iron, with drainage pipe DN/OD 100 with geotextile and connector, tied at the end, with national technical approval (abZ by DIBt) number: Z-84.2-7, 1 m
Product description
DRAINFIX CLEAN FSU 300 type 020 - Starting element, Filter substrate channel with the operating principle of surface filtration, made of fibre-reinforced concrete, nominal width 300 mm, load class A 15 - F 900 according to EN 1433, CE compliant, with national technical approval (abZ by DIBt) number: Z-84.2-7, with edge frames made of KTL-coated ductile iron, with sealing groove, grating inlay depth 40 mm, 8-fold bolting per metre, incl. DRAINFIX CLEAN - Drainage pipe DN/OD 100 wrapped with geotextile and connector, tied at the end LxWxH 1000x390x510 mm, item no. 97654
Packaging unit
-
