Article No. 8591
FASERFIX KS 100, class A 15
Longitudinal grating, bar distance 10 mm, stainless steel, 0.5 m

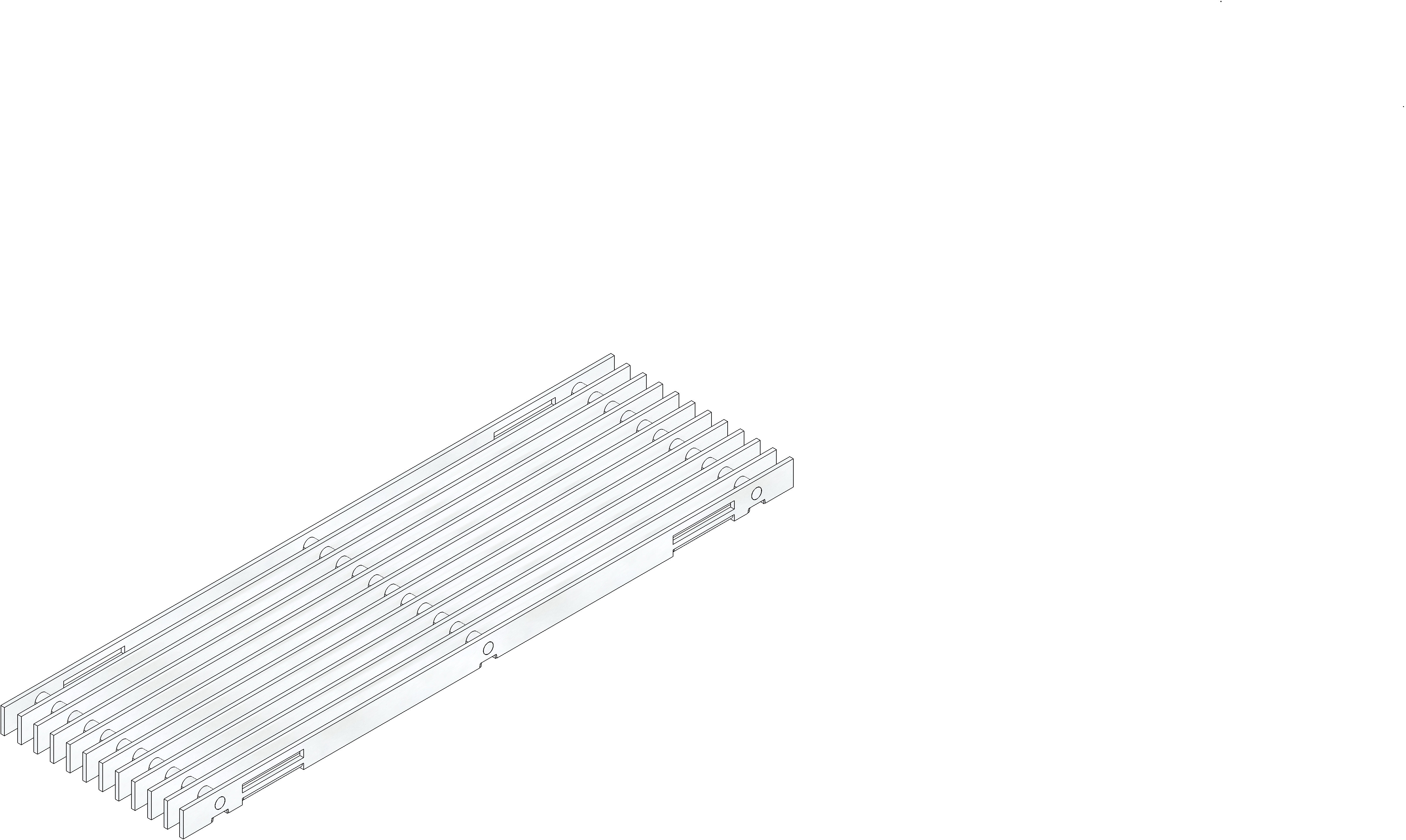

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
8591
Length
500 mm
Width
149 mm
Height
20 mm
Inlay depth
20 mm
Weight
2.98 kg
Material
Stainless steel 1.4301
Intake cross-section
1033.0 cm²/m
Nominal size
100
Inlet opening
10 x 0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Longitudinal grating, bar distance 10 mm, stainless steel, cl. A 15, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Longitudinal grating bar distance 10 mm, made of stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 8591
Packaging unit
200
