Article No. 8163
FASERFIX KS 100, class A 15
Slotted grating SW 80/10 mm, stainless steel, 1.0 m

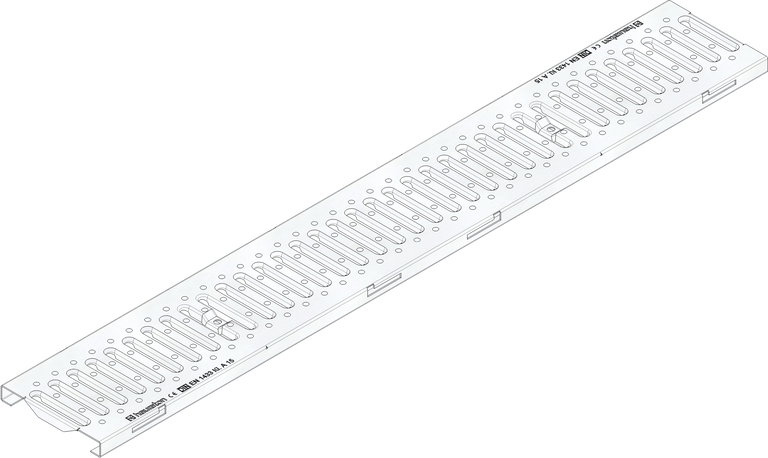

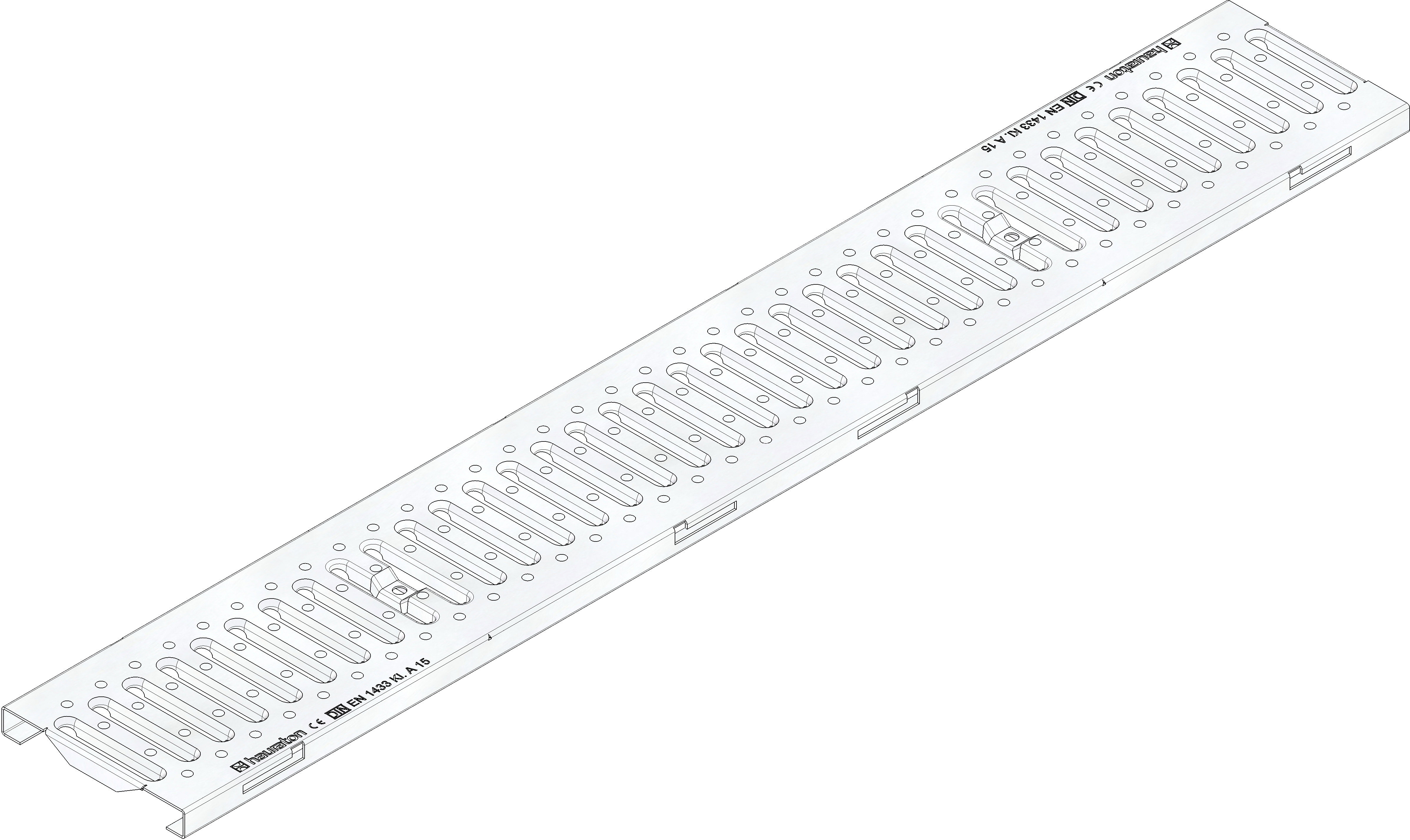

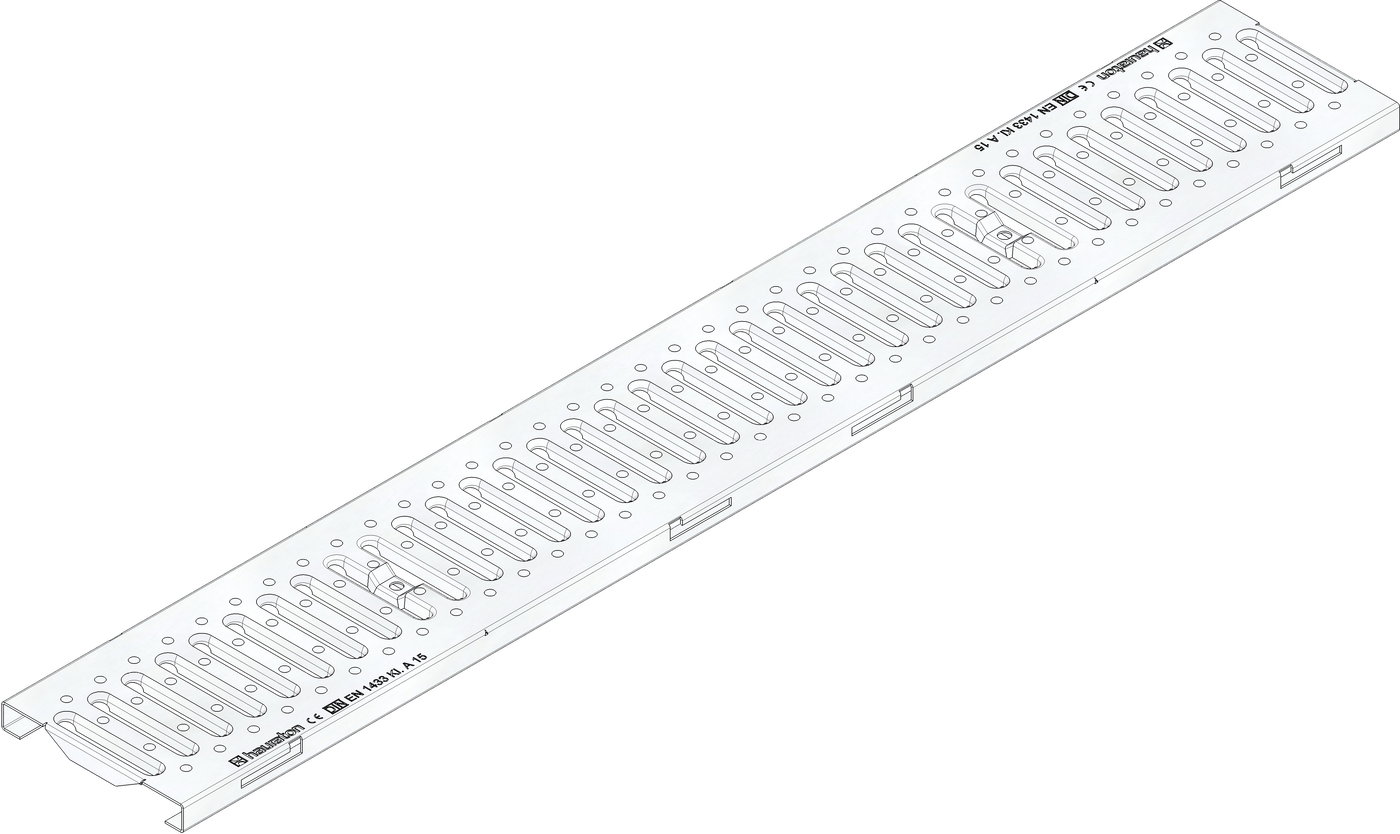

Product image
Top view
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
8163
Length
1000 mm
Width
149 mm
Height
21 mm
Inlay depth
20 mm
Weight
2.30 kg
Material
Stainless steel 1.4301
Intake cross-section
286.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Slotted grating SW 80/10 mm, stainless steel, cl. A 15, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Slotted grating, stainless steel CNS 1.4301, load class A 15 according to EN 1433, CE compliant, installation length 1000 mm, item no. 8163
Packaging unit
300
