Article No. 8099
FASERFIX KS 100, class B 125
GUGI-Mesh grating MS 15/25 mm, made of PA, black, 0.5 m

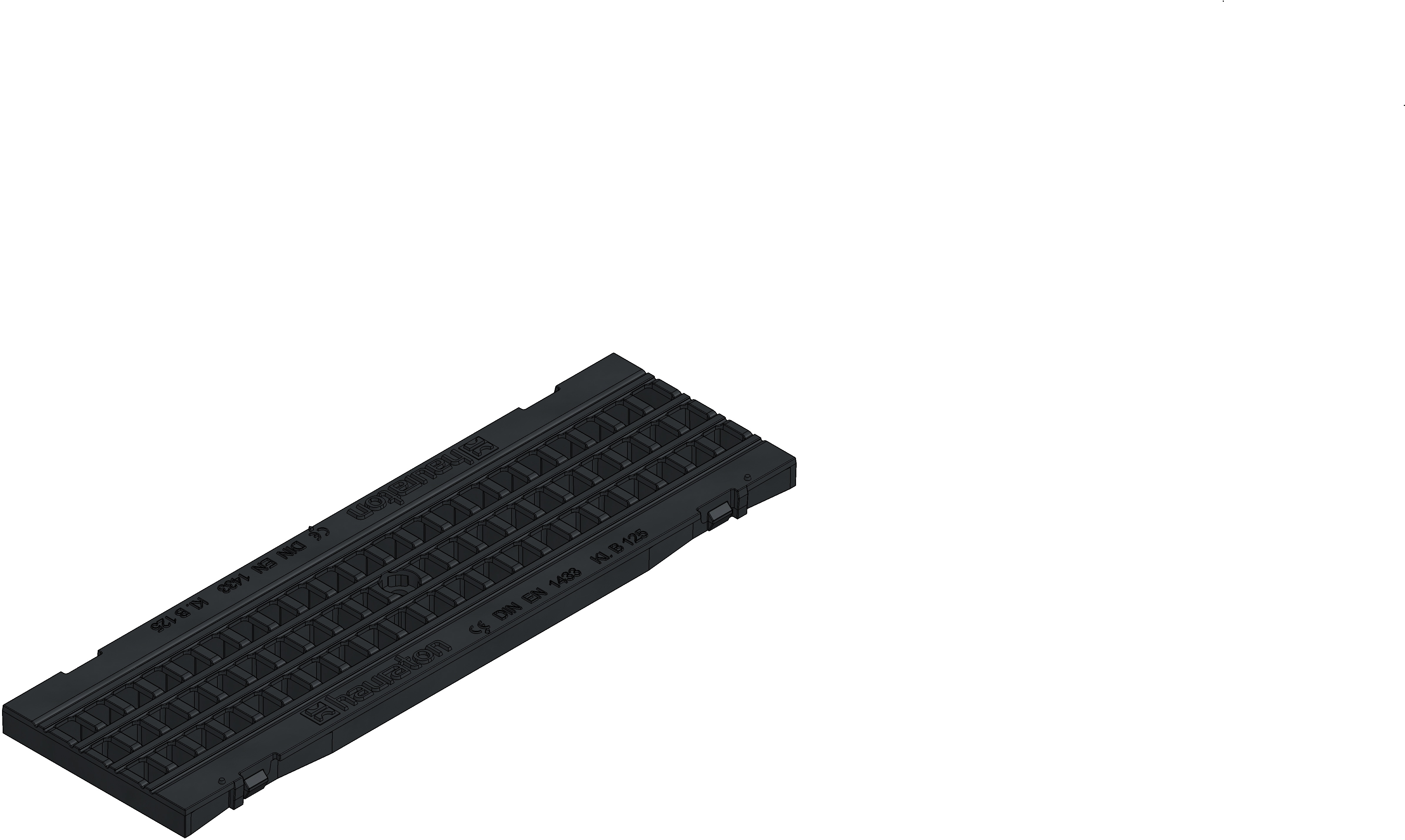

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
8099
Length
500 mm
Width
149 mm
Height
27 mm
Inlay depth
20 mm
Weight
0.90 kg
Material
reinforced Polyamide
Intake cross-section
426.0 cm²/m
Nominal size
100
Inlet opening
15 x 25 mm
Fixing type
SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, EN 16165
Sales text
GUGI-Mesh grating MS 15/25 mm, made of PA, black, cl. B 125, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - GUGI-mesh grating MS 15/25 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - B 125, installation length 500 mm, item no. 8099
Packaging unit
264
