Article No. 8152
FASERFIX KS 100, class B 125
Mesh grating MS 30/10 mm, galvanised, 0.5 m

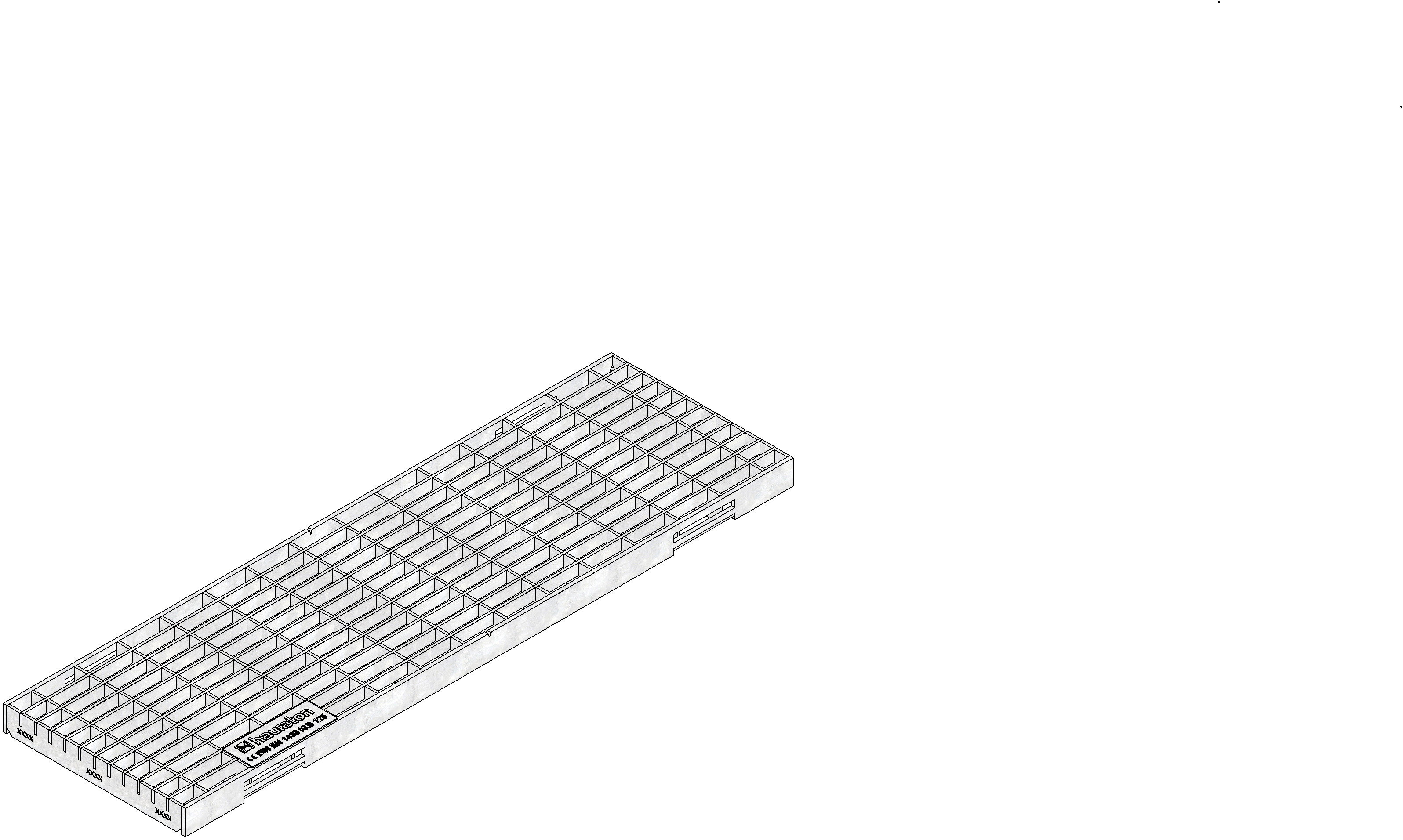

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
8152
Length
500 mm
Width
149 mm
Height
21 mm
Inlay depth
20 mm
Weight
2.00 kg
Material
hot-dip galvanised steel
Intake cross-section
1098.0 cm²/m
Nominal size
100
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. B 125, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Mesh grating MS 30/10 mm, galvanised, with longitudinal slide protection, load class A 15 - B 125 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 8152
Packaging unit
200
